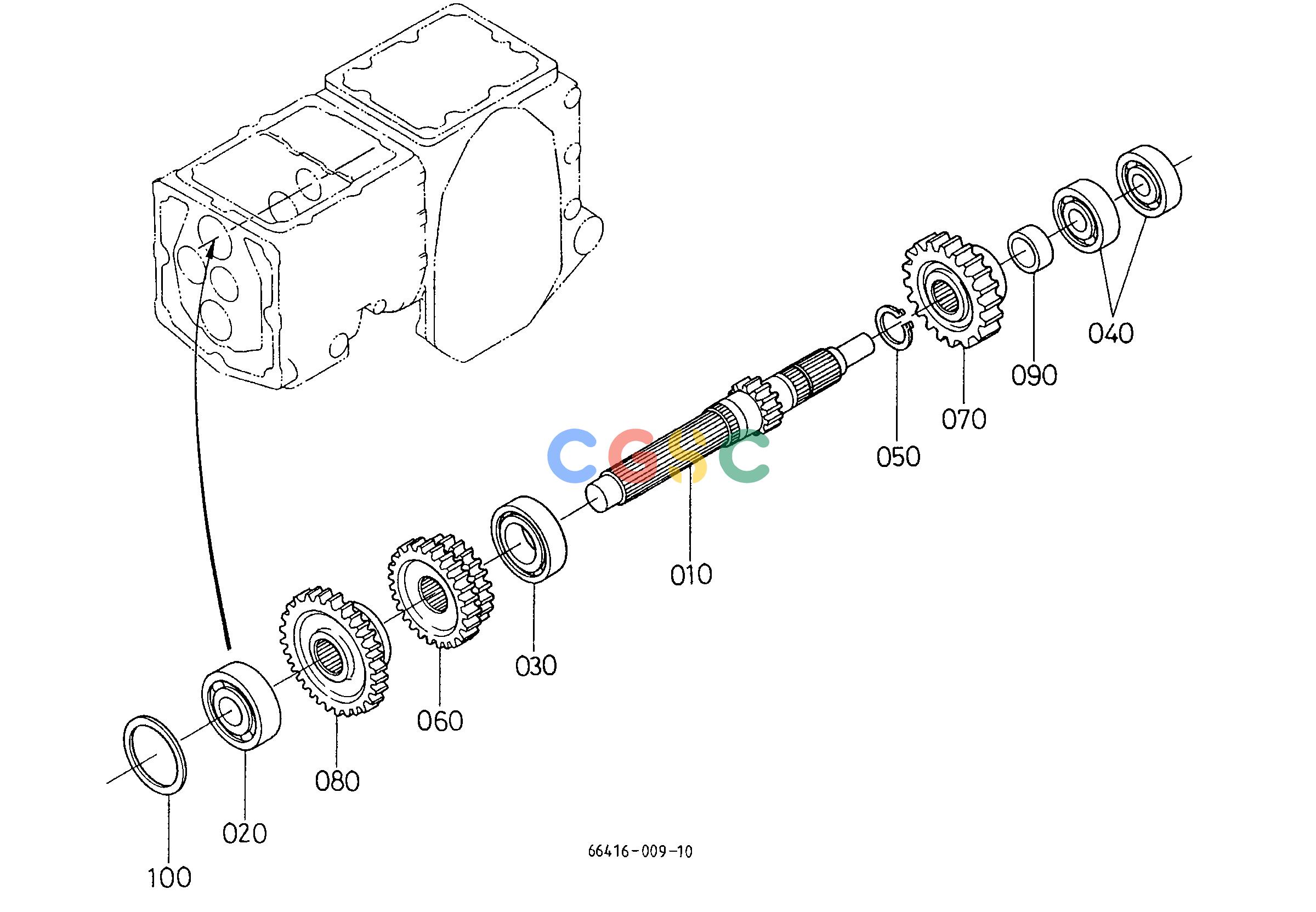

久保田零件查询T05500 4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740114410
|
[1] |
SHAFT FORTH
|
1.6940(lbs); 0.770
|
| 020. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 030. |
0810106005
|
[1] |
BEARING BALL
|
0.1782(lbs); 0.081
|
| 040. |
0810106202
|
[2] |
BEARING BALL
|
0.0968(lbs); 0.044
|
| 050. |
0461200220
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
6740114440
|
[1] |
GEAR
|
0.6600(lbs); 0.300
|
| 070. |
6641614450
|
[1] |
GEAR
|
1.1000(lbs); 0.500
|
| 080. |
6641614460
|
[1] |
GEAR
|
0.0000(lbs); 0.000
|
| 080. |
6641614462
|
[1] |
GEAR
|
1.1000(lbs); 0.500
|
| 090. |
6661114470
|
[1] |
COLLAR
|
0.0418(lbs); 0.019
|
| 100. |
6670614350
|
[1] |
SHIM SHAFT
|
0.0088(lbs); 0.004
|
