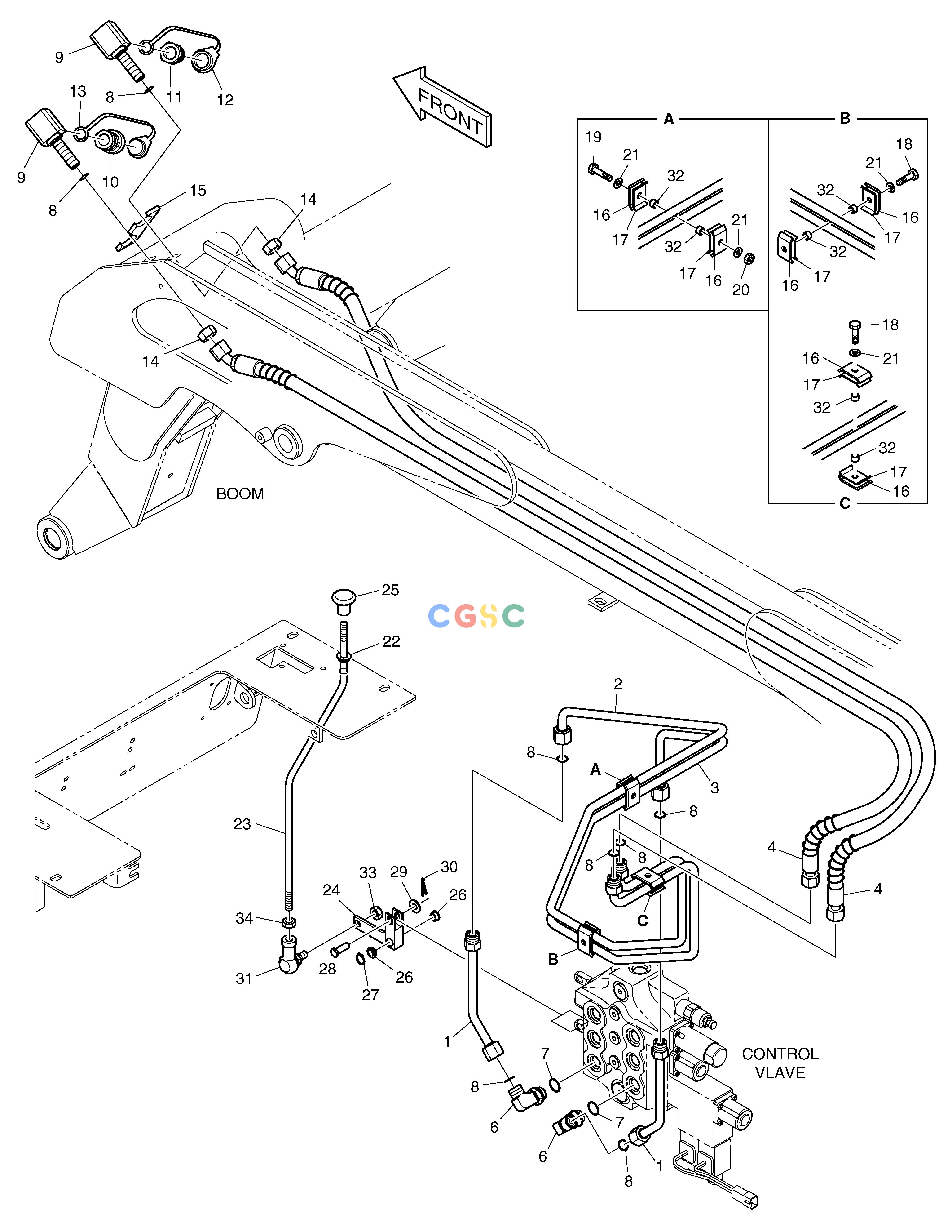

斗山零件查询ATTACHMENT PIPING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1020658
|
[-] |
ATTACHMENT PIPING
|
|
| 1. |
K1020434
|
[2] |
TUBE
|
|
| 10. |
K1022465
|
[1] |
COUPLER
|
|
| 11. |
K1022466
|
[1] |
COUPLER
|
|
| 12. |
K1022467
|
[1] |
CAP
|
|
| 13. |
K1022468
|
[1] |
CAP
|
|
| 14. |
K1020097
|
[2] |
NUT
|
|
| 15. |
K1020179
|
[2] |
BRACKET
|
|
| 16. |
K1022296
|
[6] |
CLAMP
|
|
| 17. |
K1022297
|
[6] |
RUBBER
|
|
| 18. |
S0555963
|
[2] |
BOLT
|
|
| 19. |
S0556063
|
[1] |
BOLT
|
|
| 2. |
K1020435
|
[1] |
TUBE
|
|
| 20. |
K1023115
|
[1] |
NUT;LOCK
|
|
| 21. |
K1023146
|
[4] |
WASHER;HARDENED
|
|
| 22. |
K1021063
|
[1] |
BUSHING
|
|
| 23. |
K1021064
|
[1] |
ROD
|
|
| 24. |
K1021065
|
[1] |
LEVER
|
|
| 25. |
K1023033
|
[1] |
KNOB
|
|
| 26. |
K1023038
|
[4] |
BEARING
|
|
| 27. |
S6540800
|
[2] |
RING;RETAINING
|
|
| 28. |
S5760301
|
[1] |
PIN
|
|
| 29. |
S5000613
|
[1] |
WASHER
|
|
| 3. |
K1020436
|
[1] |
TUBE
|
|
| 30. |
S180333H
|
[1] |
PIN
|
|
| 31. |
2138-9002B
|
[1] |
JOINT;BALL
|
|
| 32. |
K1023039
|
[6] |
SPACER
|
|
| 33. |
K1019800
|
[1] |
NUT;LOCK
|
|
| 34. |
S4036633
|
[6] |
NUT
|
|
| 4. |
DS2012388
|
[2] |
HOSE
|
|
| 6. |
K1023072
|
[2] |
ELBOW
|
|
| 7. |
S8040081
|
[2] |
O-RING
|
|
| 8. |
S8030081
|
[8] |
O-RING
|
|
| 9. |
K1023077
|
[2] |
ELBOW
|
|
