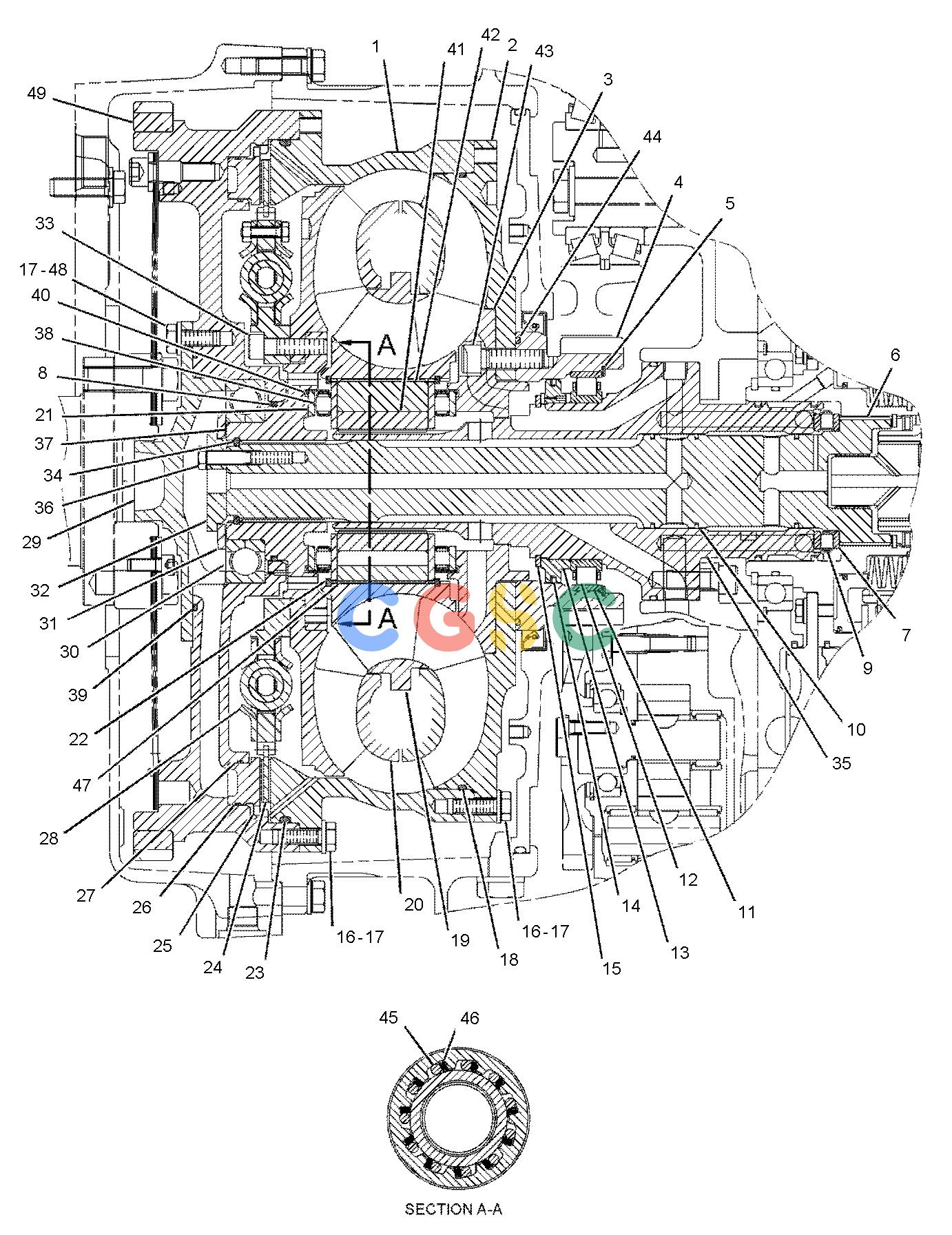

卡特零件查询（725） 245-1735: TORQUE CONVERTER GP
广数供应链运营团队, 14 02月, 2025，浏览：
699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-4219 | [1] | HOUSING-ROTATING | |
| 2. | 135-5557 | [1] | IMPELLER-CONVERTER | |
| 3. | 154-1205 | [1] | HUB-IMPELLER | |
| 4. | 486-6267 | [1] | GEAR-DRIVE | |
| 5. | 7M-8514 | [1] | RING-RETAINING | |
| 6. | 226-0755 | [1] | SHAFT AS | |
| | 224-6952 | [1] | BUSHING | |
| 7. | 237-9354 | [2] | RACE-SPECIAL THRUST | |
| 8. | 1T-1356 | [1] | RING-SEAL | |
| 9. | 237-2859 | [1] | BEARING-ROLLER | |
| 10. | 237-2802 | [3] | RING-SEAL | |
| 11. | 154-3060 | [1] | RACE-ROLLER BEARING | |
| 12. | 172-4311 | [1] | BEARING-SPECIAL RACE | |
| 13. | 153-9207 | [1] | CARRIER | |
| 14. | 9F-7383 | [1] | RING-METAL SEAL | |
| 15. | 5P-1982 | [1] | RING-RETAINING | |
| 16. | 6V-1820M | [48] | BOLT(M10X1.5X30-MM) | |
| 17. | 6V-5839 | [54] | WASHER(11X21X2.5-MM THK) | |
| 18. | 135-2653 | [1] | SEAL-O-RING | |
| 19. | 156-7239 | [1] | STATOR | |
| 20. | 7G-7541 | [1] | TURBINE-CONVERTER | |
| 21. | 1T-1282 | [2] | RACE-THRUST BEARING | |
| 22. | 8B-7789 | [2] | RING-SNAP | |
| 23. | 6V-9670 | [1] | SEAL-O-RING | |
| 24. | 336-9314 | [1] | DISC-FRICTION | |
| 25. | 164-4220 | [1] | PISTON | |
| 26. | 2S-1362 | [1] | RING-SEAL | |
| 27. | 1S-6515 | [1] | RING-SEAL | |
| 28. | 251-4324 | [1] | COUPLING AS | |
| 28A. | 244-6849 | [12] | SPRING(33-MM ODX46-MM LG) | |
| 28B. | 244-6850 | [8] | SPRING(23-MM ODX46-MM LG) | |
| 28C. | 244-6851 | [4] | SPRING(23-MM ODX34-MM LG) | |
| | 1A-2029 | [12] | BOLT(3/8-16X1.125-IN) | |
| | 9S-8752 | [12] | NUT-FULL(3/8-16-THD) | |
| 29. | 164-4222 | [1] | PILOT-FLYWHEEL | |
| 30. | 6V-9191 | [1] | BALL BEARING | |
| 31. | 1T-1616 | [1] | WASHER-SPRING(54.9X86.4X6.1-MM) | |
| 32. | 3T-8670 | [1] | RETAINER | |
| 33. | 8T-9515M | [20] | BOLT-SOCKET HEAD(M10X1.5X40-MM) | |
| 34. | 8B-2327 | [1] | RING-RETAINING | |
| 35. | 220-2696 | [1] | CARRIER AS | |
| | 4B-9783 | [4] | BALL | |
| 36. | 6V-3918M | [3] | BOLT(M8X1.25X50-MM) | |
| 37. | 135-5561 | [1] | HUB | |
| 38. | 1T-1278 | [2] | BEARING-THRUST | |
| 39. | 135-2654 | [1] | SEAL-O-RING | |
| 40. | 1T-1281 | [2] | RETAINER-BEARING | |
| 41. | 1T-1590 | [1] | RACE-FREEWHEEL | |
| 42. | 284-3599 | [1] | CAM-FREEWHEEL | |
| 43. | 8T-0273M | [8] | BOLT-SOCKET HEAD(M12X1.75X40-MM) | |
| 44. | 6V-1902 | [1] | SEAL-O-RING | |
| 45. | 1T-0679 | [11] | ROLLER-FREEWHEEL | |
| 46. | 1T-0680 | [11] | SPRING-FREEWHEEL | |
| 47. | 1T-1589 | [2] | RACE-THRUST BEARING | |
| 48. | 6V-4248M | [6] | BOLT(M10X1.5X25-MM) | |
| 49. | 164-6162 | [1] | HOUSING AS | |
| | 4N-2514 | [1] | GEAR(113-TEETH) | |
| | M | | METRIC PART |
