约翰迪尔零件查询622 - AMT HEAVY DUTY AIR CLEANER FILTRE A AIR A USAGE INTENSIF LEISTUNGSSTARKER LUFTFILTER PRESA E FILTRO DELLEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
896 次

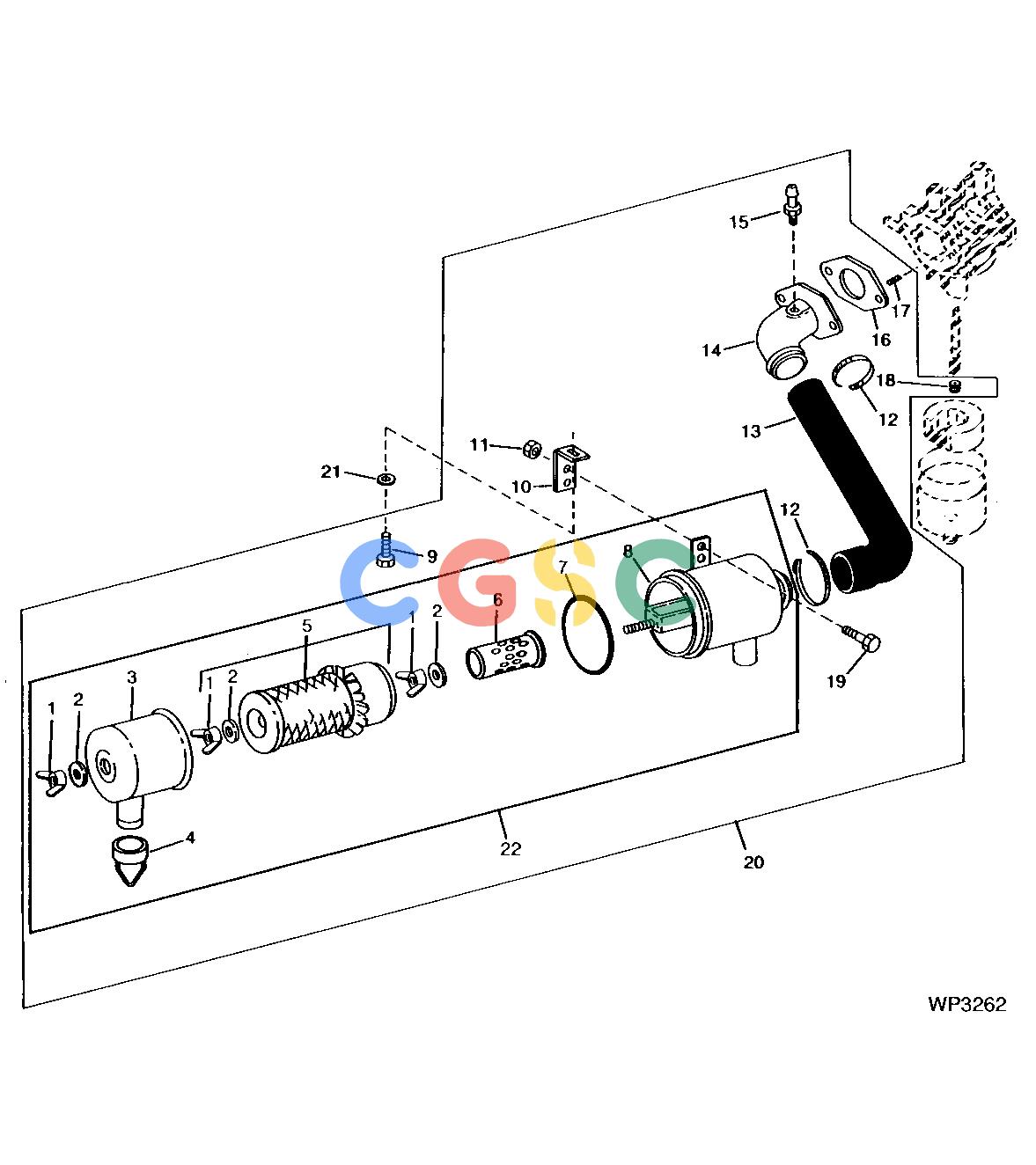

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
M94737
|
[3] |
WING NUT
|
|
| 2. |
M76264
|
[3] |
Washer
|
|
| 3. |
M89678
|
[1] |
End
|
|
| 4. |
M89679
|
[1] |
EJECTOR
|
|
| 5. |
AM108243
|
[1] |
FILTER ELEMENT
|
|
| 6. |
M94734
|
[1] |
FILTER ELEMENT
|
|
| 7. |
M70165
|
[1] |
O-Ring
|
|
| 8. |
........
|
[1] |
Housing
|
|
| 9. |
19H1731
|
[1] |
CAP SCREW
|
|
| 10. |
M96387
|
[1] |
Bracket
|
|
| 11. |
14M7166
|
[2] |
LOCK NUT
|
|
| 12. |
TY22470
|
[2] |
Clamp
|
|
| 13. |
M96385
|
[1] |
Hose
|
|
| 14. |
M96384
|
[1] |
AIR INTAKE
|
|
| 15. |
W41143
|
[1] |
Hose Fitting
|
|
| 16. |
M97278
|
[1] |
Gasket
|
|
| 17. |
M76199
|
[1] |
Pin
|
|
| 18. |
M96388
|
[1] |
Jet
|
|
| 18. |
........
|
[1] |
Jet
|
|
| 18. |
........
|
[1] |
Jet
|
|
| 19. |
19M7881
|
[2] |
Screw
|
|
| 20. |
AM108543
|
[1] |
KIT
|
|
| 21. |
24M7178
|
[1] |
Washer
|
|
| 22. |
AM108542
|
[1] |
AIR CLEANER
|
|
