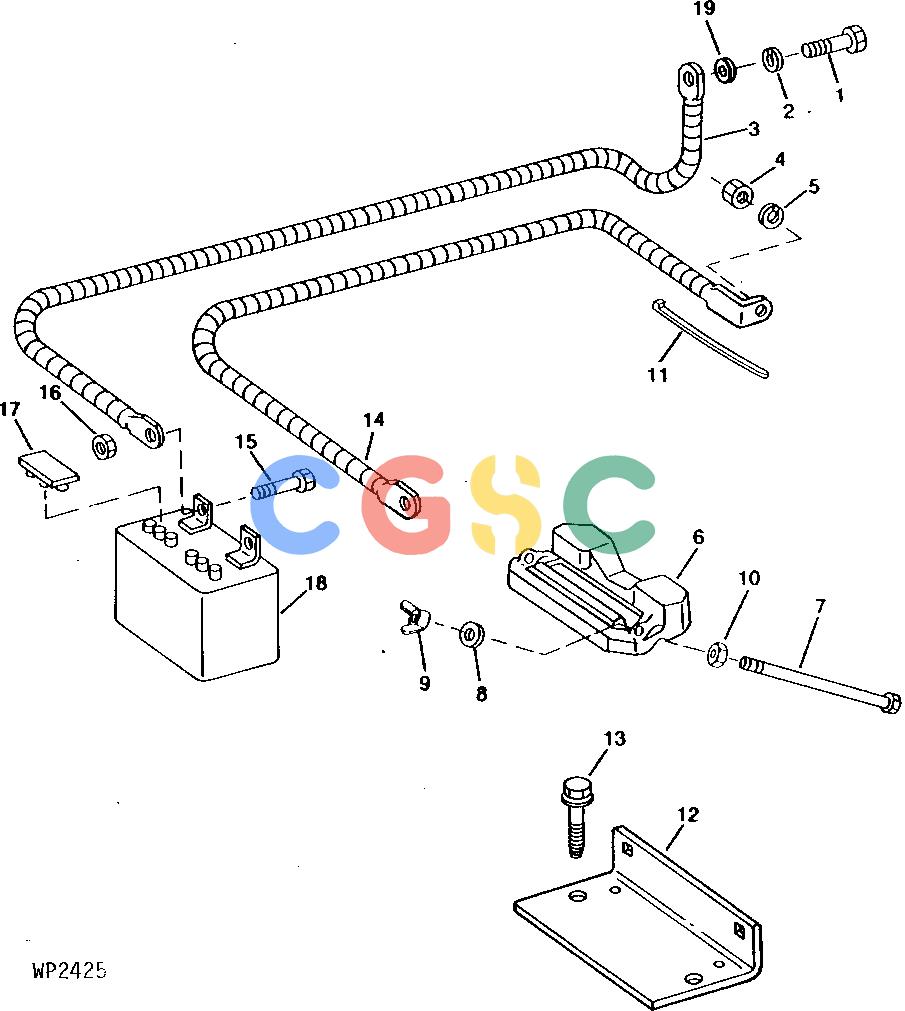

约翰迪尔零件查询622 - AMT BATTERY BATTERIE BATTERIE BATTERIA BATERIA BATTERI [B20]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
997 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7162
|
[1] |
CAP SCREW
|
|
| 2. |
12H291
|
[2] |
Lock Washer
|
|
| 3. |
R90804
|
[1] |
GROUND CABLE
|
|
| 4. |
14M7273
|
[1] |
NUT
|
|
| 5. |
12H303
|
[1] |
Lock Washer
|
|
| 6. |
M76041
|
[1] |
Cover
|
|
| 7. |
08H4395
|
[2] |
CAP SCREW
|
|
| 8. |
24H1287
|
[2] |
Washer
|
|
| 9. |
14H952
|
[2] |
WING NUT
|
|
| 10. |
M40333
|
[2] |
LOCK NUT
|
|
| 11. |
H77698
|
[AR] |
Tie Band
|
|
| 11. |
R44302
|
[AR] |
Tie Band
|
|
| 12. |
W39897
|
[1] |
Support
|
|
| 13. |
37M7086
|
[2] |
Screw
|
|
| 14. |
R90652
|
[1] |
BATTERY CABLE
|
|
| 15. |
19H1919
|
[2] |
CAP SCREW
|
|
| 16. |
14H786
|
[2] |
NUT
|
|
| 17. |
AM103660
|
[1] |
BATTERY KIT
|
|
| 18. |
TY6191
|
[1] |
DRY CHARGED BATTERY
|
|
| 19. |
24H1289
|
[1] |
Washer
|
|
