斗山零件查询MAIN & OIL COOLER PIPING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
941 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021265A
|
[-] |

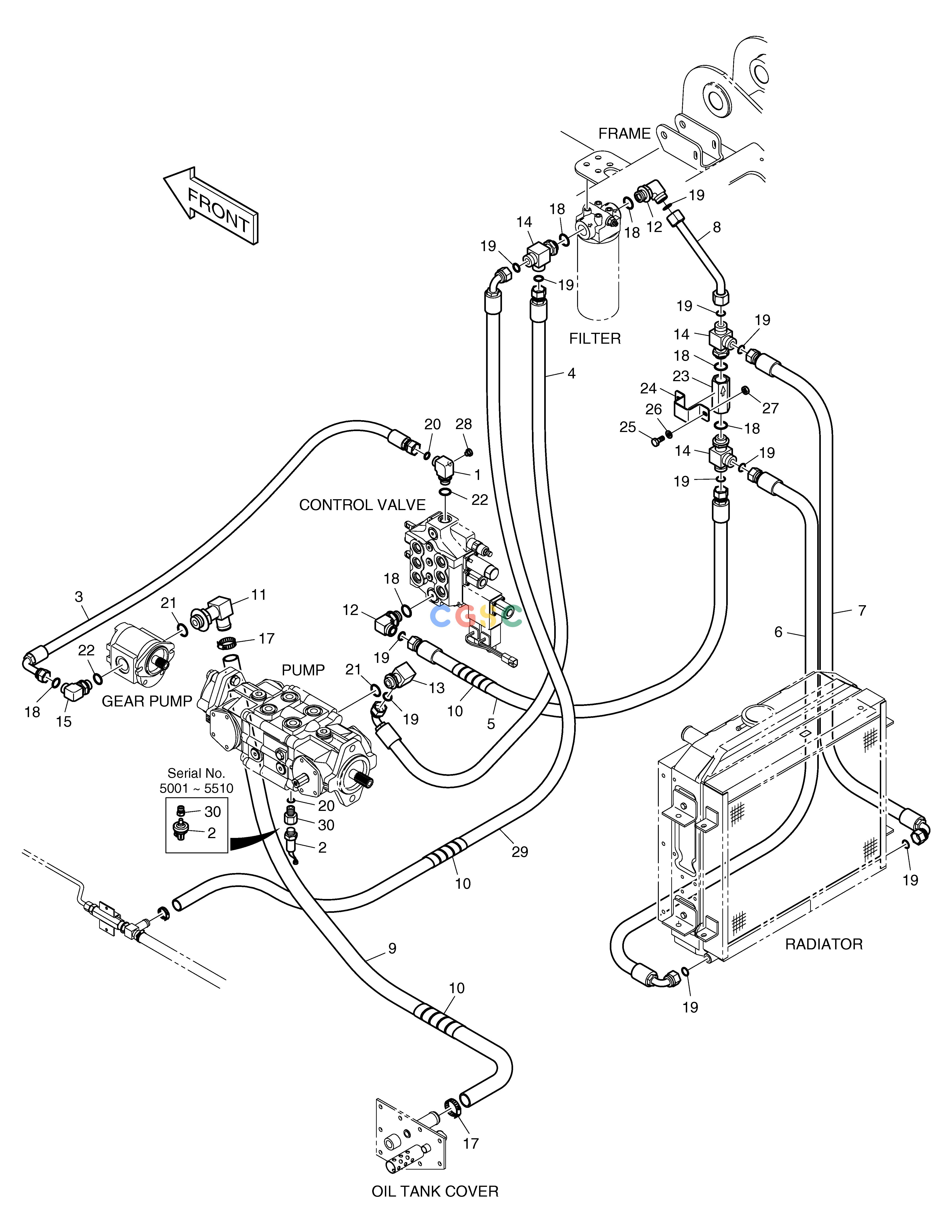

MAIN & OIL COOLER PIPING
|
|
| 1. |
DS2472001
|
[1] |
ELBOW
|
|
| 10. |
K1022550
|
[300] |
PROTECTOR;HOSE
|
|
| 11. |
K1023075
|
[1] |
ELBOW
|
|
| 12. |
K1023073
|
[2] |
ELBOW
|
|
| 13. |
K1023063
|
[1] |
ELBOW
|
|
| 14. |
K1023087
|
[3] |
TEE
|
|
| 15. |
K1022470
|
[1] |
ELBOW
|
|
| 17. |
S8450035
|
[2] |
CLAMP;HOSE
|
|
| 18. |
S8040121
|
[6] |
O-RING
|
|
| 19. |
S8030121
|
[9] |
O-RING
|
|
| 2. |
K1022540
|
[1] |
SWITCH;PRESSURE
|
|
| 2. |
K1039428
|
[1] |
SWITCH;PRESSURE
|
|
| 20. |
S8040101
|
[2] |
O-RING
|
|
| 21. |
S8040161
|
[2] |
O-RING
|
|
| 22. |
S8030101
|
[2] |
O-RING
|
|
| 23. |
K1022576
|
[1] |
VALVE;RELIEF
|
|
| 24. |
K1019823
|
[1] |
CLAMP
|
|
| 25. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 26. |
K1023146
|
[2] |
WASHER;HARDENED
|
|
| 27. |
K1023115
|
[2] |
NUT;LOCK
|
|
| 28. |
K1023097
|
[1] |
PLUG
|
|
| 29. |
DS2037012
|
[1] |
HOSE
|
|
| 3. |
DS2013341
|
[1] |
HOSE
|
|
| 30. |
K1021844
|
[1] |
PLUG
|
|
| 30. |
DS2242026
|
[1] |
ADAPTER
|
|
| 4. |
DS2013123
|
[1] |
HOSE
|
|
| 5. |
DS2011112
|
[1] |
HOSE
|
|
| 6. |
DS2013821
|
[1] |
HOSE
|
|
| 7. |
DS2013822
|
[1] |
HOSE
|
|
| 8. |
K1021648
|
[1] |
TUBE
|
|
| 9. |
K1023094
|
[183] |
HOSE;BULK
|
|
