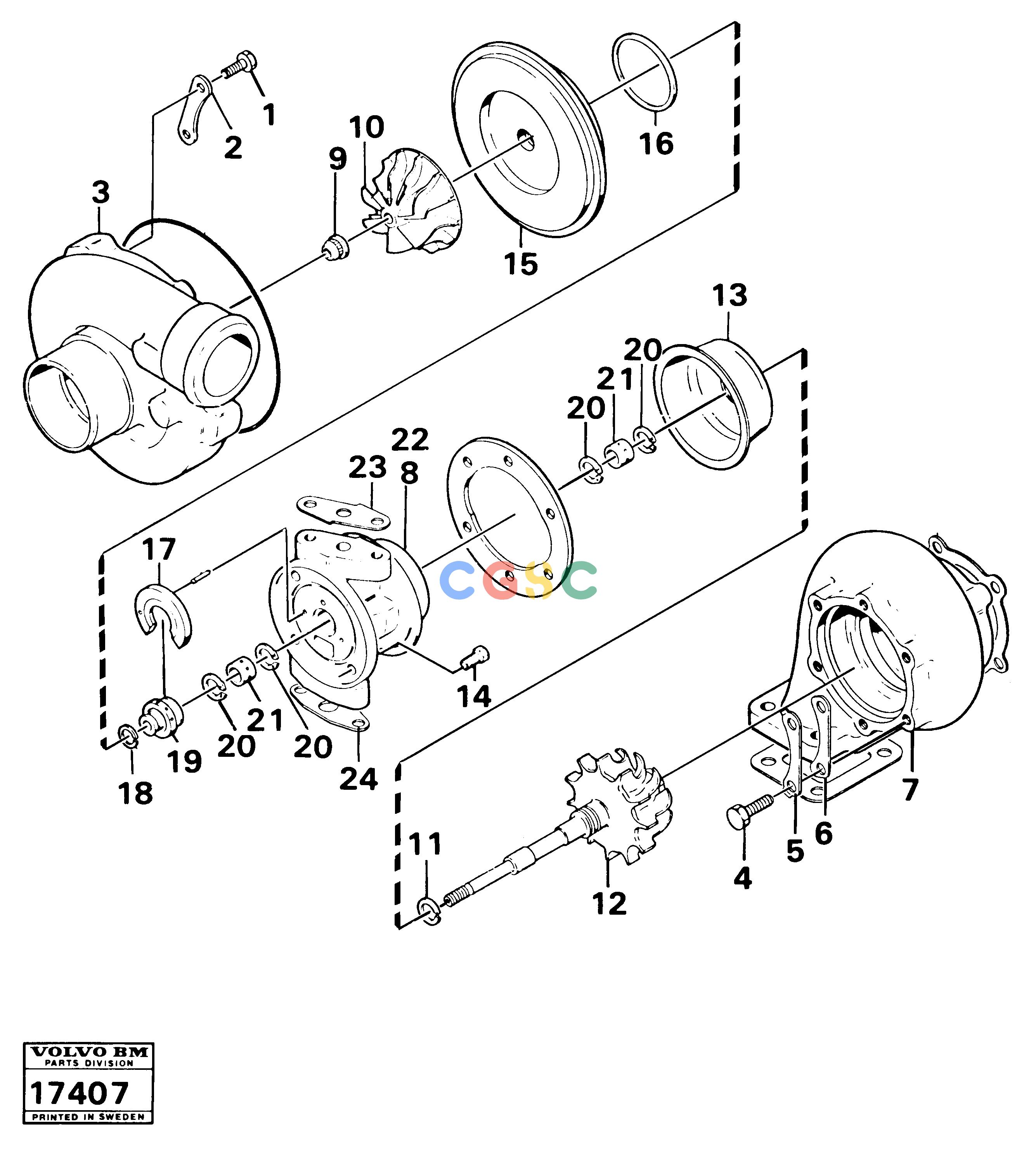

沃尔沃零件查询4300 Turbocharger prod no 16307 Mo 60142-4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13955294
|
[6] |
Screw
|
|
| 5. |
VOE466486
|
[3] |
Striker plate
|
|
| 6. |
VOE466484
|
[3] |
Clamp
|
|
| 7. |
|
[1] |
Turbine housing
|
|
| 8. |
|
[1] |
Rotor unit
|
|
| |
VOE4881090
|
[1] |
Turbocharger
|
|
| 9. |
|
[1] |
Lock nut
|
|
| 10. |
VOE11994473
|
[1] |
Turbine rotor
|
|
| 11. |
VOE6212285
|
[1] |
Piston ring
|
|
| 12. |
VOE6212701
|
[1] |
Turbine rotor
|
|
| 13. |
VOE6211617
|
[1] |
Cover
|
|
| 14. |
VOE13946544
|
[0004] |
Screw
|
|
| 15. |
|
[0001] |
Plate
|
|
| 16. |
VOE466478
|
[0001] |
Sealing ring
|
|
| 17. |
VOE466474
|
[0001] |
Thrust bearing
|
|
| 18. |
VOE466476
|
[0001] |
Piston ring
|
|
| 1. |
VOE13948536
|
[6] |
Screw
|
|
| 19. |
VOE466475
|
[0001] |
Sleeve
|
|
| 20. |
VOE466470
|
[0004] |
Snap ring
|
|
| 21. |
VOE1697152
|
[0002] |
Bearing
|
|
| 22. |
|
[0001] |
Housing
|
|
| 23. |
VOE420641
|
[0001] |
Gasket
|
|
| 24. |
VOE420642
|
[0001] |
Gasket
|
|
| |
VOE6212198
|
[0001] |
Repair kit
|
|
| 2. |
VOE6211611
|
[3] |
Striker plate
|
|
| 3. |
|
[1] |
Compressor housing
|
|
