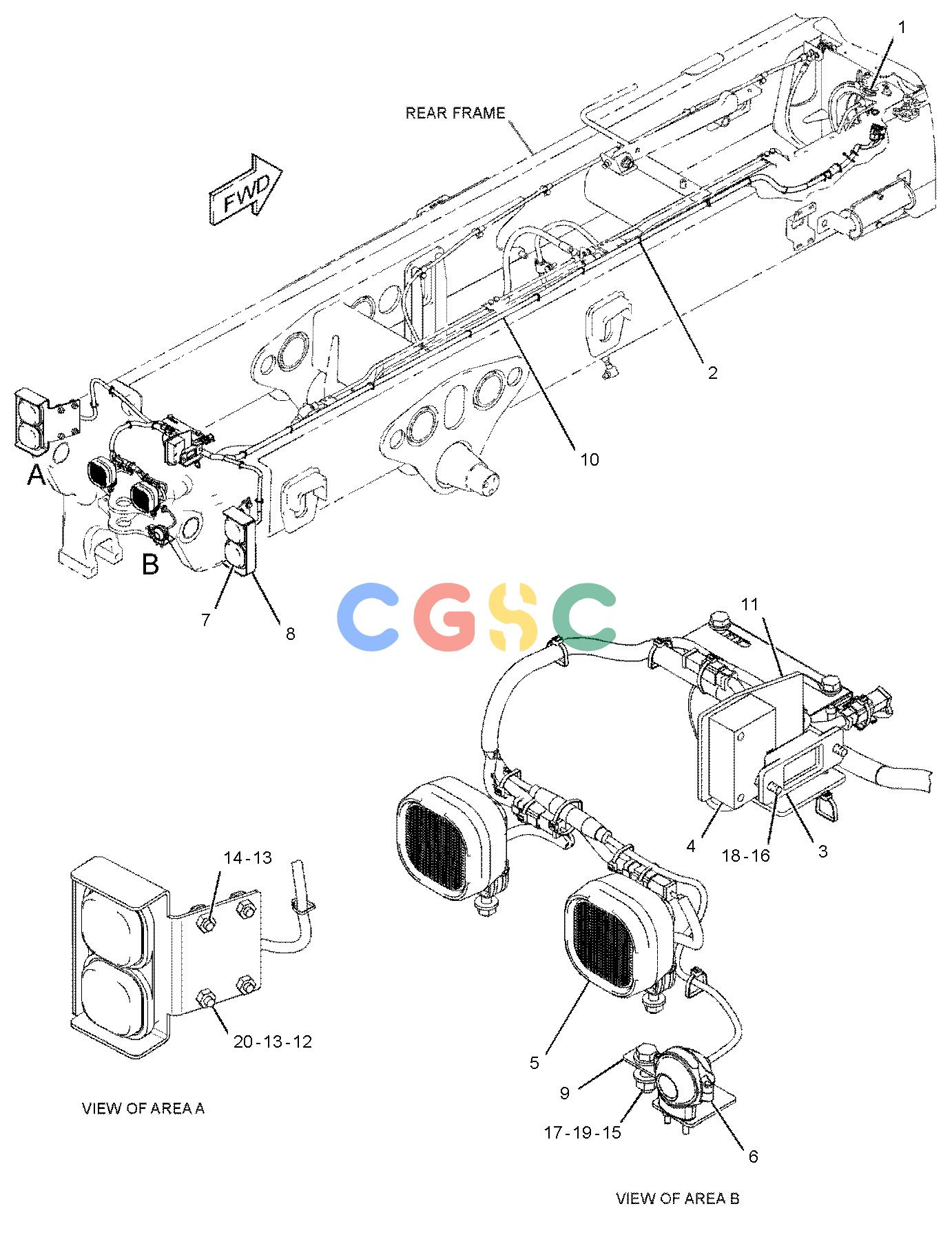

卡特零件查询（725） 326-3306: WIRING GP-LIGHTING
广数供应链运营团队, 14 02月, 2025，浏览：
251 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2V-2043 | [1] | NUT-BULKHEAD(1-5/8-12-THD) | |
| 2. | 3S-2093 | [37] | STRAP-CABLE | |
| 3. | 5G-7820 | [1] | MAGNET AS | |
| 4. | 229-5527 | [1] | SENSOR GP-POSITION(TRUCK BODY POSITION) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 121-0153 | [1] | FILM-INSTRUCTION(ELECTRICAL POWER)(BODY UP, DOWN) | |
| 5. | 237-5512Y | [1] | WARNING GP-BACKUP | |
| 6. | 347-1668J | [1] | CAMERA AS(115-DEG, COLOR) | |
| 7. | 290-5751 | [2] | LAMP GP-SIGNAL(24-VOLT)(TURN INDICATOR) | |
| | | | (EACH INCLUDES) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 8. | 291-9450 | [2] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| 9. | 293-8602 | [1] | PLATE | |
| 10. | 325-6951 | [1] | HARNESS AS-REAR CHASSIS | |
| | 8T-8729 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 8T-8730 | [5] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [14] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [11] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| 11. | 333-7284 | [1] | PLATE AS | |
| | 7T-1099 | [1] | LINK | |
| 12. | 4P-7429 | [2] | CLIP(LADDER) | |
| 13. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 14. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 15. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 16. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 17. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 20. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 251-4162J | [1] | KIT-BRACKET(CAMERA) | |
| | | | (INCLUDES BRACKET, BOLTS, LOCK NUTS, GASKET & ALLEN KEY) |
| | E | | ORDER BY THE CENTIMETER |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
