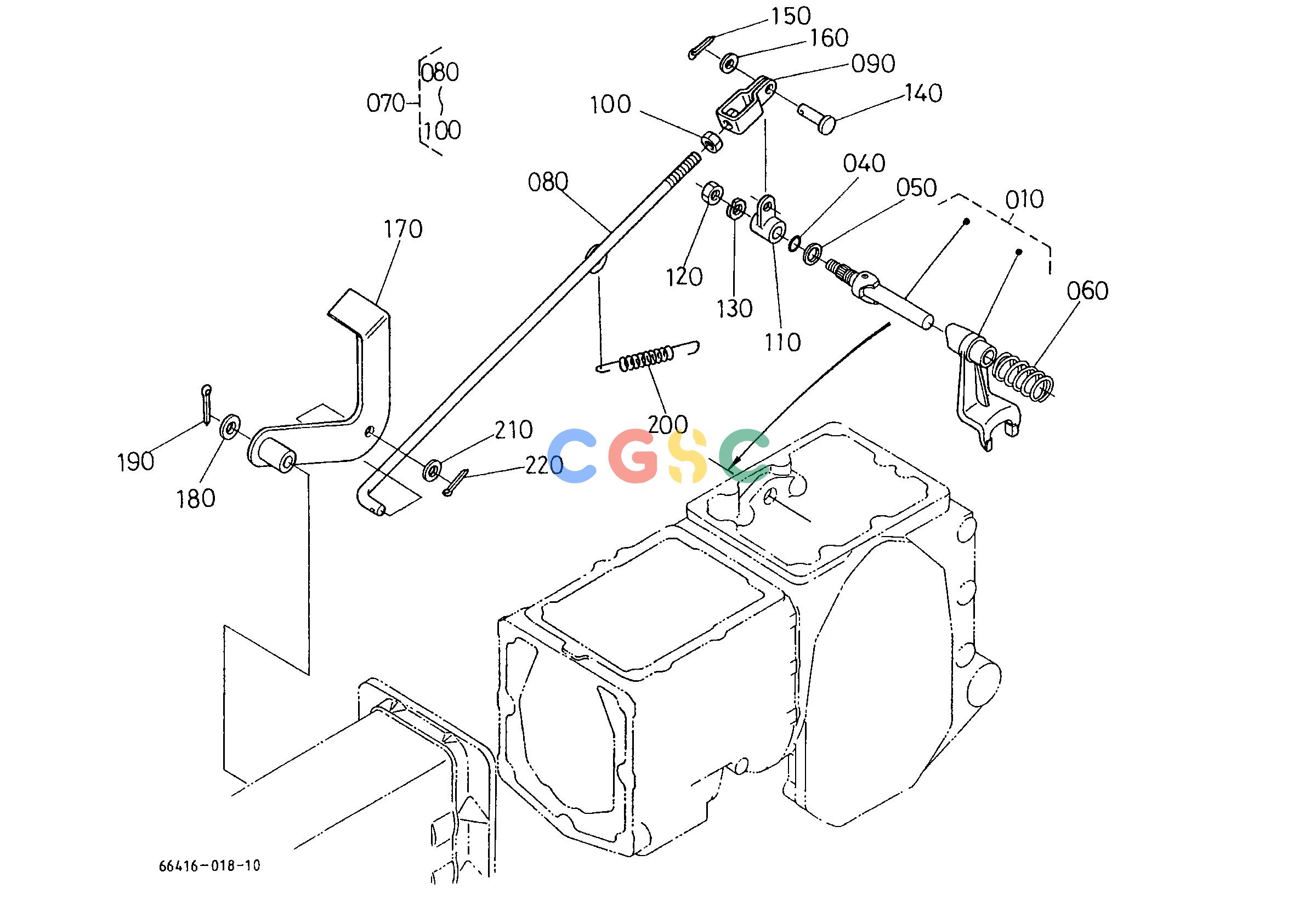

久保田零件查询T06600 DIFF.LOCK PEDAL REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6661119100
|
[1] |
ASSY FORK DIFF.LOCK
|
0.9240(lbs); 0.420
|
| 040. |
0481110120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 050. |
6659118340
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
6659118320
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 070. |
6721142860
|
[1] |
ASSY ROD DIFF.LOCK
|
0.5280(lbs); 0.240
|
| 080. |
6721142870
|
[1] |
ROD DIFF.LOCK
|
0.3740(lbs); 0.170
|
| 090. |
6375342350
|
[1] |
U JOINT
|
0.0770(lbs); 0.035
|
| 100. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 110. |
6659143170
|
[1] |
LEVER DIFF.LOCK
|
0.1100(lbs); 0.050
|
| 120. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 130. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 140. |
0512250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 150. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 160. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 170. |
6721151250
|
[1] |
PEDAL DIFF.LOCK
|
0.5720(lbs); 0.260
|
| 180. |
0401360120
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 190. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 200. |
6659143190
|
[1] |
SPRING BRAKE RETURN
|
0.0968(lbs); 0.044
|
| 210. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 220. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
