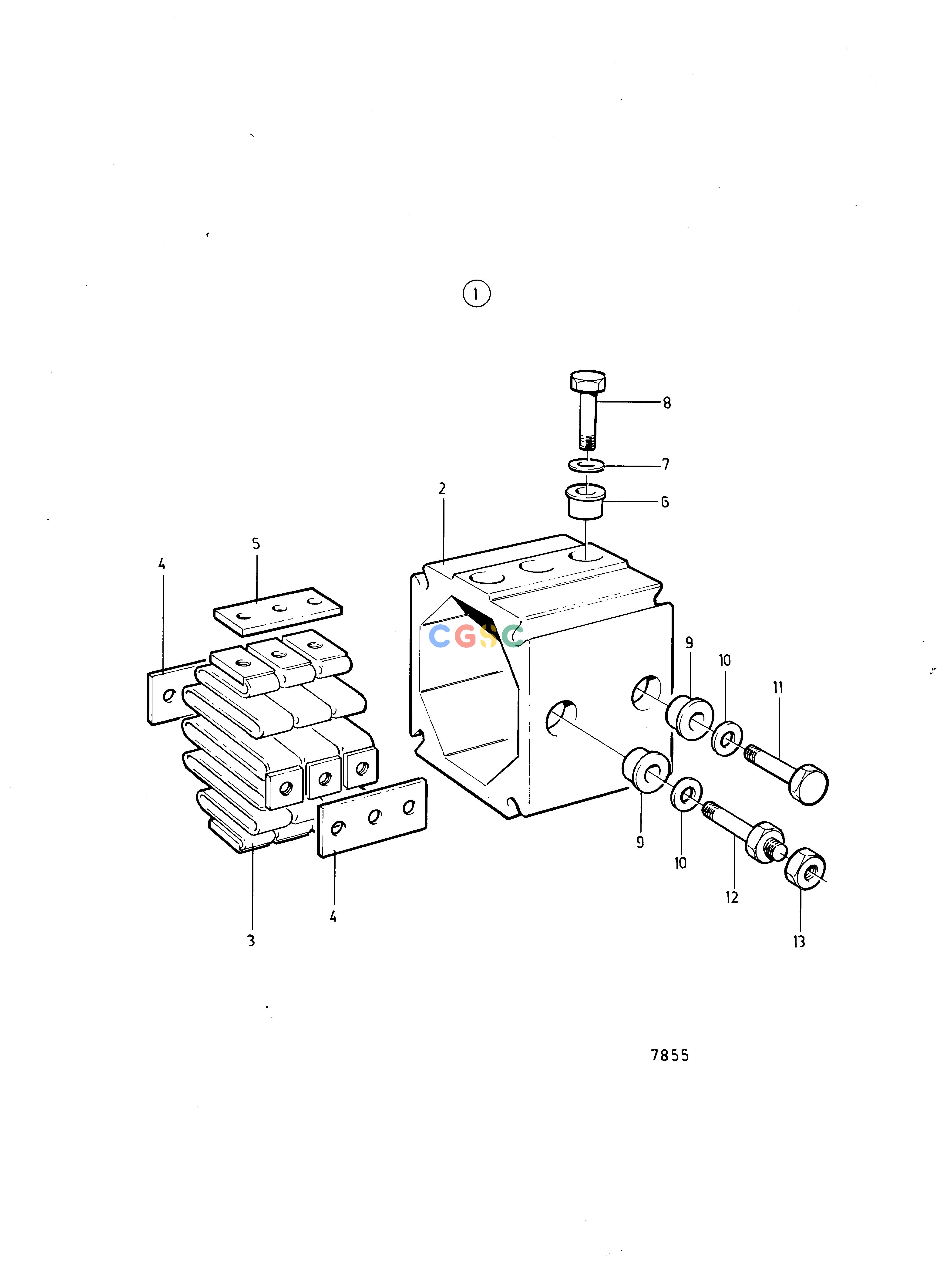

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemStart ElementEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859232
|
[1] |
Starter element
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
468468
|
[3] |
Sleeve
|
|
| 7. |
191156
|
[3] |
Washer
|
|
| 8. |
949652
|
[3] |
Flange screw
|
|
| 9. |
468511
|
[4] |
Rubber moulding
|
|
| 10. |
192288
|
[4] |
Washer
|
|
| 11. |
949578
|
[2] |
Flange screw
|
|
| 12. |
468825
|
[2] |
Terminal screw
|
|
| 13. |
968862
|
[2] |
Nut
|
(945408)
|
