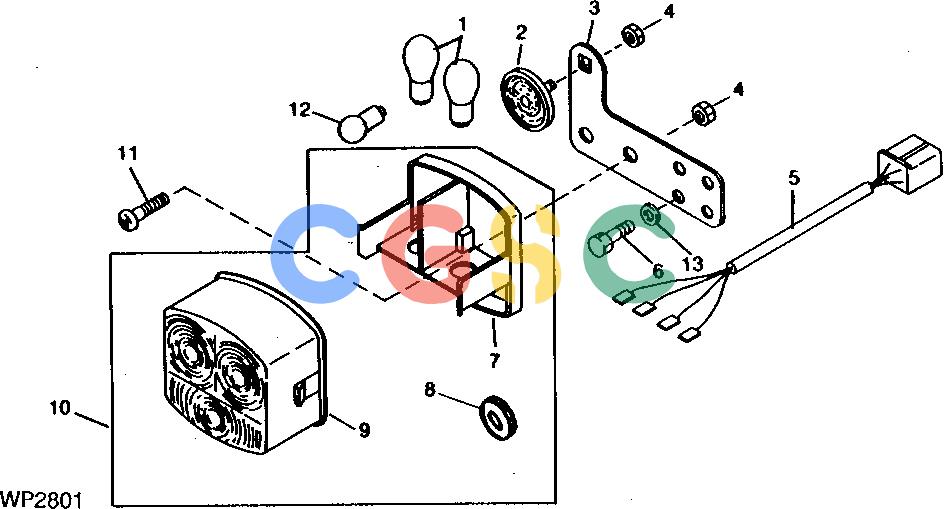

约翰迪尔零件查询622 - AMT TAIL, STOP, AND TURN LAMP (EUROPEAN VERSION) LAMPES DE FEU ARRIERE, DE STOP ET DE CLIGNOTANT (VERSIOEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
57M7014
|
[2] |
Bulb
|
|
| 2. |
AM107650
|
[1] |
REFLECTOR
|
|
| 3. |
M97077
|
[1] |
Bracket
|
|
| 4. |
14M7360
|
[3] |
LOCK NUT
|
|
| 5. |
AM108500
|
[1] |
WIRING HARNESS
|
|
| 6. |
37H154
|
[2] |
Screw
|
|
| 7. |
L31777
|
[1] |
Holder
|
|
| 8. |
L31774
|
[1] |
Grommet
|
|
| 9. |
L63506
|
[1] |
Lens
|
|
| 9. |
L63508
|
[1] |
Lens
|
|
| 10. |
AL67206
|
[1] |
TAIL LAMP
|
|
| 10. |
AL67208
|
[1] |
TAIL LAMP
|
|
| 11. |
21M7271
|
[2] |
Screw
|
|
| 12. |
57M7013
|
[1] |
Bulb
|
|
| 13. |
24H1287
|
[2] |
Washer
|
|
