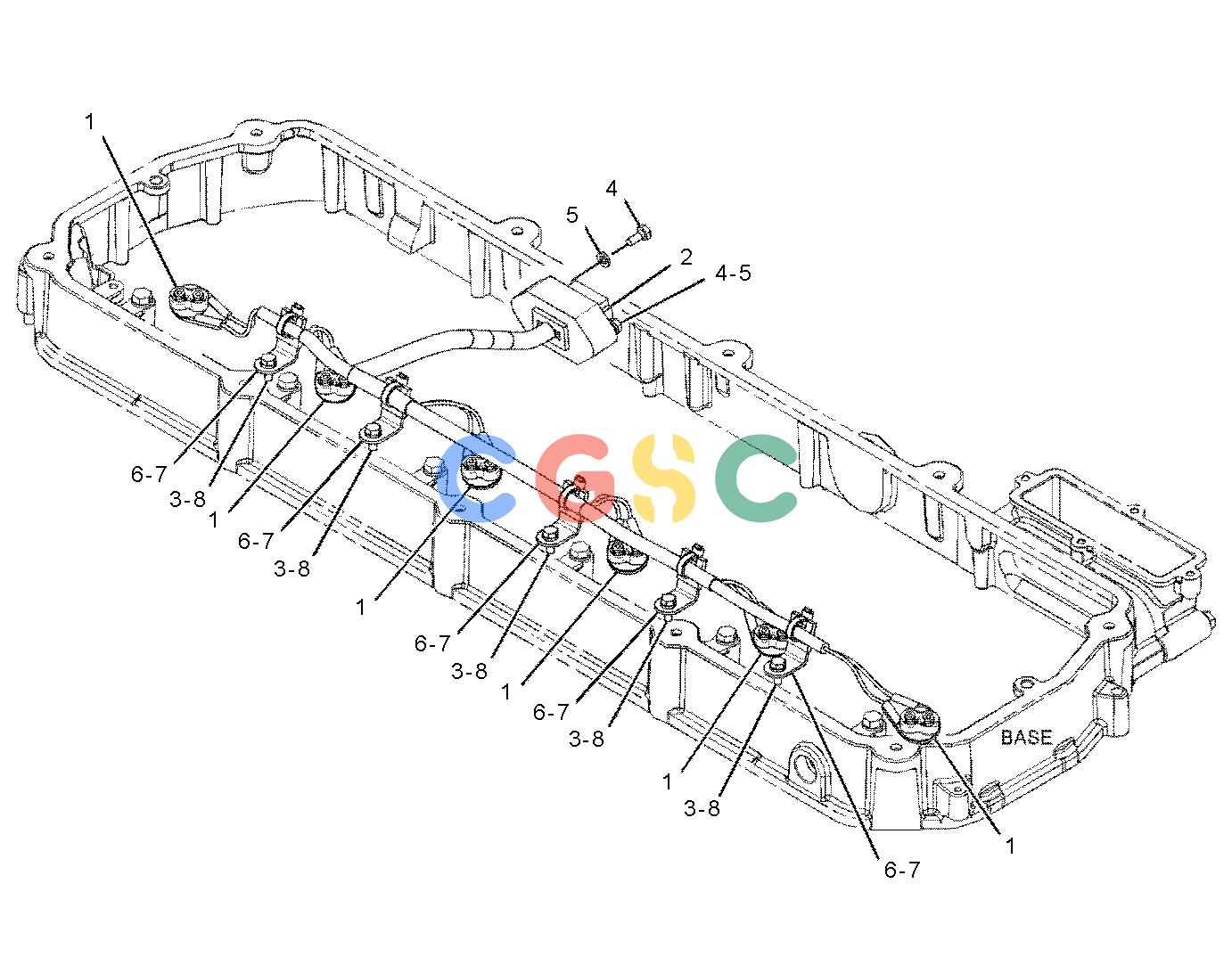

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7E-6508 | [6] | CAP AS | |
| 2. | 418-7614Y | [1] | HARNESS AS-WIRING(UNIT INJECTOR) | |
| 3. | 6V-8837M | [5] | BOLT(M6X1X16-MM) | |
| 4. | 6V-8836M | [2] | BOLT(M6X1X14-MM) | |
| 5. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| 6. | 237-9960 | [5] | CLIP(LADDER) | |
| 7. | 3S-2093 | [5] | STRAP-CABLE | |
| 8. | 5P-0537 | [5] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
