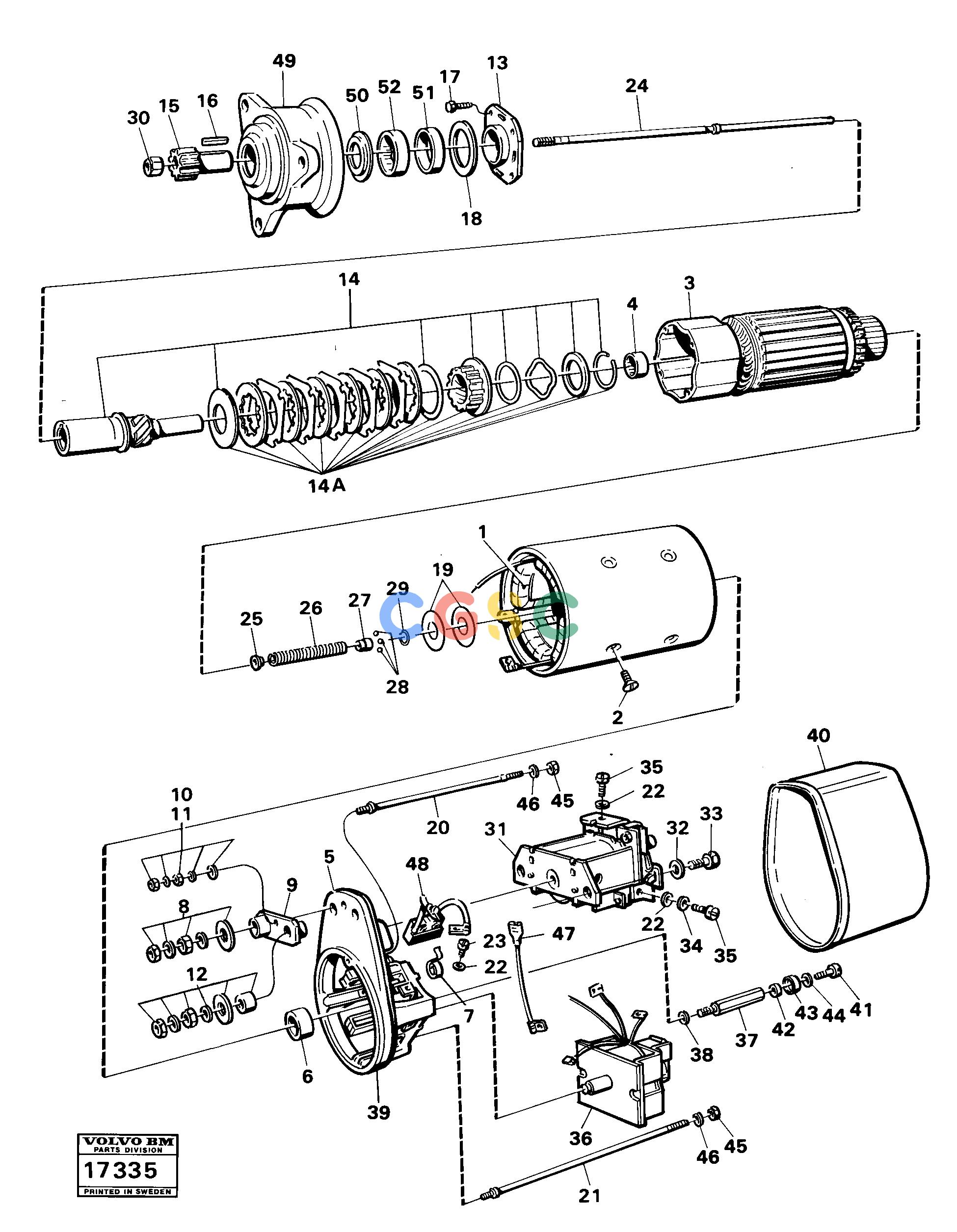

沃尔沃零件查询4300 Starter motor mo 60247, 60248, 60414-4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE243091
|
[0001] |
Needle bearing
|
|
| 46. |
VOE955892
|
[0004] |
Plain washer
|
|
| 47. |
|
[0001] |
Cable
|
|
| 48. |
VOE6212621
|
[0001] |
Carbon brush
|
|
| 49. |
|
[0001] |
Bearing
|
|
| 50. |
VOE243172
|
[0001] |
Sealing ring
|
|
| 51. |
VOE240455
|
[0001] |
Bushing
|
|
| 52. |
VOE240453
|
[0001] |
Roller bearing
|
|
| 5. |
VOE11994239
|
[0001] |
Bearing shield
|
|
| 6. |
VOE240481
|
[0001] |
Bushing
|
|
| 7. |
VOE240478
|
[0004] |
Brush spring
|
|
| 8. |
VOE3094492
|
[0001] |
Screw
|
|
| |
VOE4881031
|
[0001] |
Starter motor
|
|
| 9. |
VOE6212615
|
[0001] |
Insulating plate
|
|
| 10. |
VOE970952
|
[0001] |
Hexagon screw
|
|
| 11. |
VOE6643672
|
[0001] |
Connector kit
|
|
| 12. |
VOE11000008
|
[0002] |
Repair kit
|
|
| 13. |
VOE240456
|
[0001] |
Center Bearing
|
|
| 14. |
VOE244539
|
[0001] |
Disc clutch
|
|
| 14A. |
VOE6644414
|
[0001] |
Repair kit
|
|
| 15. |
VOE11994396
|
[0001] |
Drive Gear
|
|
| 16. |
VOE240473
|
[0001] |
Key
|
|
| 17. |
VOE6212616
|
[0004] |
Screw
|
|
| 1. |
VOE6212612
|
[0001] |
Field winding
|
|
| 18. |
VOE240457
|
[0001] |
Washer
|
|
| 19. |
VOE7240487
|
[REQ] |
Shim
|
THICK=0.30
|
| |
VOE7240487
|
[REQ] |
Shim
|
|
| |
VOE241904
|
[REQ] |
Shim
|
|
| 20. |
VOE6643677
|
[0001] |
Screw
|
|
| 21. |
VOE6643678
|
[0003] |
Screw
|
|
| 22. |
VOE941905
|
[0008] |
Spring washer
|
|
| 23. |
VOE6643679
|
[0002] |
Screw
|
|
| 24. |
VOE6643680
|
[0001] |
Shaft
|
|
| 25. |
VOE844410
|
[0001] |
Brg Arrangement
|
|
| 2. |
VOE848091
|
[0008] |
Screw
|
|
| 26. |
VOE6212617
|
[0001] |
Compression spring
|
|
| 27. |
VOE6212622
|
[0001] |
Brg Arrangement
|
|
| 28. |
VOE844412
|
[0011] |
Ball
|
|
| 29. |
VOE240471
|
[0001] |
Lock ring
|
|
| 30. |
VOE11000085
|
[0001] |
Nut
|
|
| 31. |
VOE240488
|
[0001] |
Relay
|
|
| 32. |
VOE13941907
|
[0002] |
Washer
|
|
| 33. |
VOE13955294
|
[0002] |
Screw
|
|
| 34. |
VOE7072247
|
[0003] |
Washer
|
|
| 35. |
VOE244218
|
[0006] |
Screw
|
|
| 3. |
VOE11715769
|
[0001] |
Rotor
|
|
| 36. |
VOE7240493
|
[0001] |
Magnet
|
|
| 37. |
VOE7243713
|
[0002] |
Bolt
|
|
| 38. |
VOE6212619
|
[0002] |
Washer
|
|
| 39. |
VOE7072225
|
[0001] |
Gasket
|
|
| 40. |
VOE240496
|
[0001] |
Casing
|
|
| 41. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| 42. |
VOE7072202
|
[0002] |
Gasket
|
|
| 43. |
VOE7072201
|
[0002] |
Washer
|
|
| 44. |
VOE13941906
|
[0002] |
Washer
|
|
| 45. |
VOE13955781
|
[0004] |
Nut
|
|
