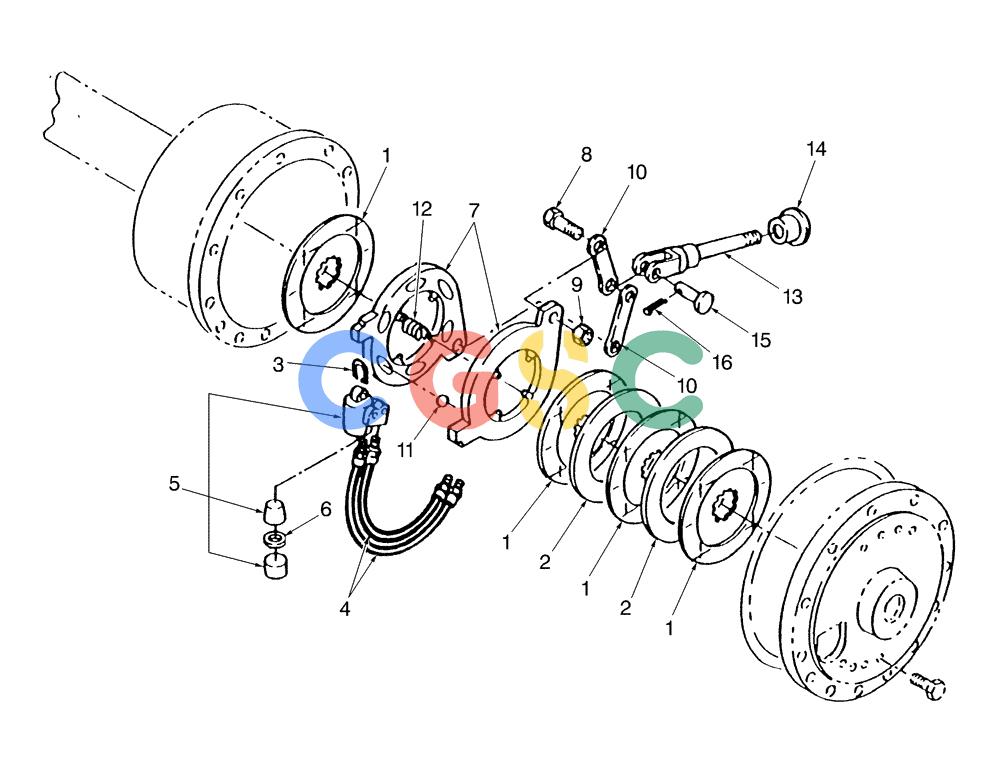

| 1. | 83959626 | [6/8] | DISC,53.34mm ID x 224mm OD x 4.9mm Thk | BASBrake Disc, SM17WP, Recommended for Service |
| 1. | E9NN2A097BA | [6/8] | BRAKE DISC | BASBrake, Disc, Gempco Superseded by part number: 87518036 |
| 2. | 81866478 | [2/4] | BRAKE DISC,147mm ID x 228.6mm OD x 2.7mm Thk | BASBrake, Disc, Intermediate |
| 3. | E9NN2N446AB | [4] | SPRING | BASRetainer Superseded by part number: 81866482 |
| 4. | E9NN2N442AB | [4] | HOSE | BASRear Brake Superseded by part number: 81866483 |
| 5. | 81866484 | [2] | BRAKE | BASAssy., Brake Actuating. Includes: |
| . . | NSS | [1] | NOT SERVICED SEPARATELY | CONBody, Cylinder |
| 6. | 82002070 | [2] | SEAL,25mm ID x 35mm OD x 7mm Thk | BASRING, , Brake Piston M25 x 35 x 7 Thk |
| 7. | E9NN2W000AC | [2] | ACTUATOR | BASAssy., 18Y. Includes: Ref. 8 thru 12 Superseded by part number: 81866495 |
| 8. | E9NN2N444AB | [4] | BOLT,Hex, 1/2" - 20 x 34.8mm, Cl 8.8 | BASBrake Hex, 1/2"-20 x M34.8, Cl 8.8 Superseded by part number: 9966312 |
| 9. | E9NN2N464AB | [4] | NUT | BASBrake Superseded by part number: 9966311 |
| 10. | E9NN2N458AB | [4] | ROD | BASBrake Pull Superseded by part number: 9966313 |
| 11. | E9NN2N324AB | [12] | BALL | BASBrake Disc Superseded by part number: 87672308 |
| 12. | F0NN2N320AB | [8] | SPRING | BASBrake Disc Superseded by part number: 81866505 |
| 13. | 81877008 | [2] | ROD | BASBrake Control, 7.03" x M12 x 1.75 |
| 13. | E8NN2466DA | [2] | ROD | BASBrake Control, 1/2" - 20 x 6.67 Superseded by part number: 83972123 |
| 14. | 82037652 | [2] | SEAL | FARAssy., Brake Rod |
| 15. | 76260S36 | [2] | CLEVIS PIN,5/8" x 1 3/8" L | BASPIN, CLEVIS, 5/8" x 1 3/8" L Superseded by part number: 83928668 |
| 16. | PL | [2] | PROCURE LOCALLY | BASPin, Cotter, 1/8" x 1" |
