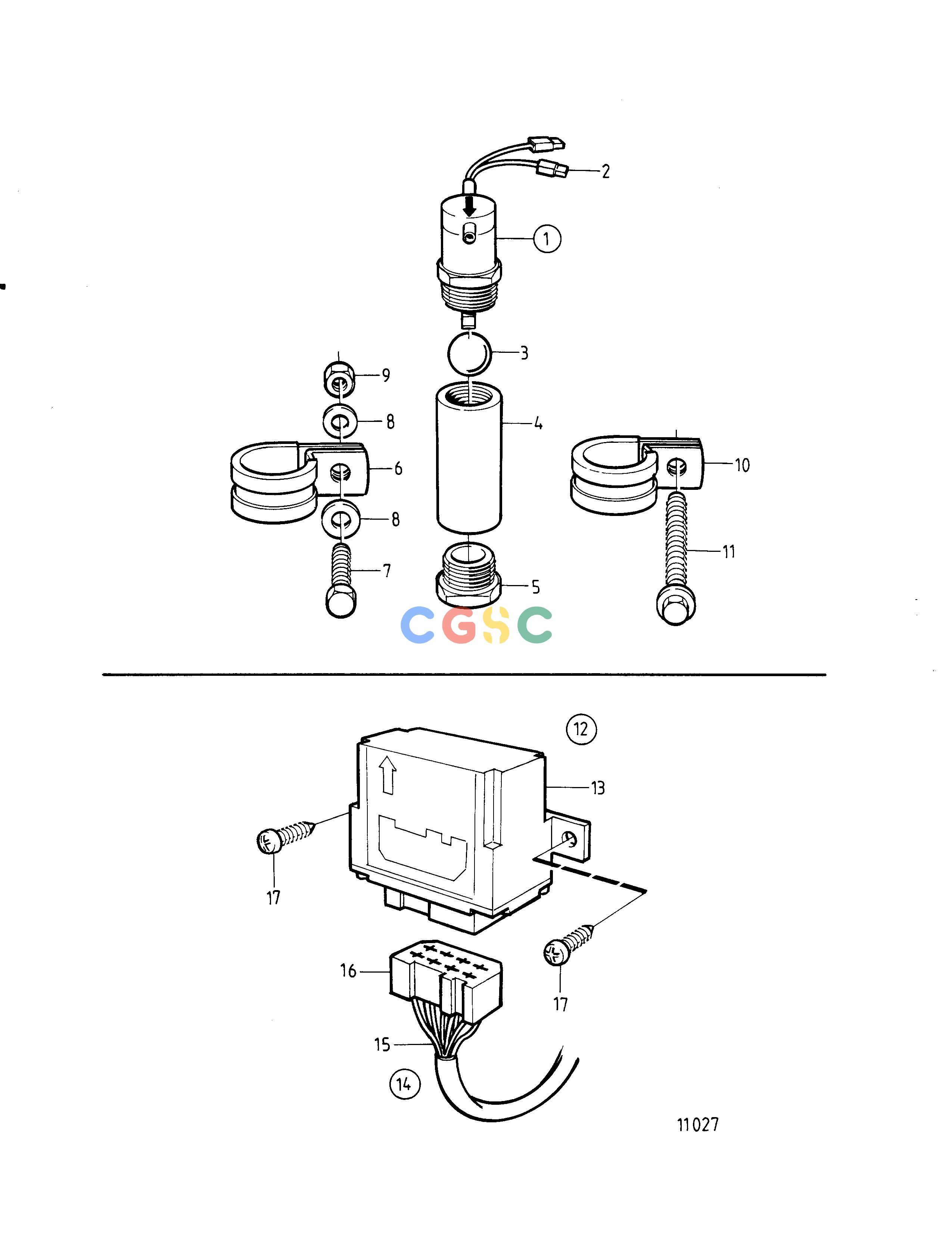

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemTilt SwitchEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
848 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876563
|
[1] |
Position sensor
|
|
| 2. |
7726000_255
|
|
cables and terminals
|
|
| 3. |
181332
|
[1] |
Ball
|
|
| 4. |
858169
|
[1] |
Sleeve
|
|
| 5. |
914392
|
[1] |
Plug
|
|
| 6. |
952635
|
[2] |
Clamp
|
2003SOLAS,2003B-SOLAS
|
| 7. |
955271
|
[2] |
Hexagon screw
|
2003SOLAS,2003B-SOLAS
|
| 8. |
955892
|
[4] |
Washer
|
2003SOLAS,2003B-SOLAS
|
| 9. |
955781
|
[2] |
Hexagon nut
|
2003SOLAS,2003B-SOLAS
|
| 10. |
947827
|
[2] |
Clamp
|
2003TB-SOLAS
|
| 11. |
965184
|
[2] |
Flange screw
|
2003TB-SOLAS
|
| 12. |
876563
|
[1] |
Position sensor
|
To be bulkhead mounted.
|
| 13. |
873112
|
[1] |
Position sensor
|
|
| 14. |
872642
|
[1] |
Cable kit
|
|
| 15. |
7726000_255
|
|
cables and terminals
|
|
| 16. |
944076
|
[1] |
Housing
|
|
| 17. |
968476
|
[2] |
Flange screw
|
|
