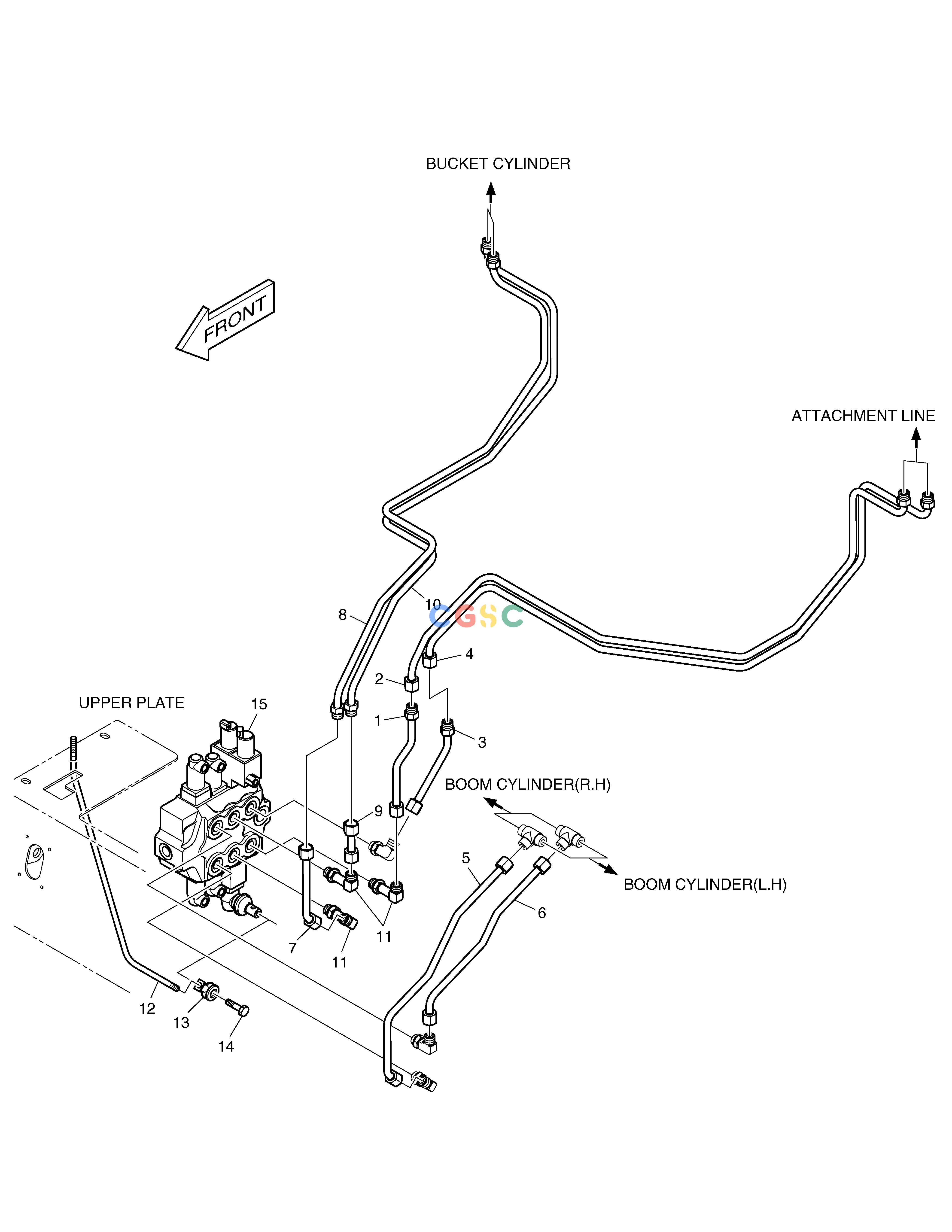

斗山零件查询BOOM & BUCKET PIPING-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
394 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022150
|
[-] |
BOOM & BUCKET PIPING
|
|
| 1. |
K1021987
|
[1] |
TUBE
|
|
| 10. |
K1021996
|
[1] |
TUBE
|
|
| 11. |
K1023051
|
[3] |
ELBOW
|
|
| 12. |
K1022227
|
[1] |
ROD
|
|
| 13. |
K1020063
|
[1] |
LINK
|
|
| 14. |
S0558363
|
[2] |
BOLT M10X1.5X40
|
|
| 15. |
K1022793
|
[1] |
CONTROL VALVE(JOYSTICK)
|
|
| 2. |
K1021988
|
[1] |
TUBE
|
|
| 3. |
K1021989
|
[1] |
TUBE
|
|
| 4. |
K1021990
|
[1] |
TUBE
|
|
| 5. |
K1021991
|
[1] |
TUBE
|
|
| 6. |
K1021992
|
[1] |
TUBE
|
|
| 7. |
K1021993
|
[1] |
TUBE
|
|
| 8. |
K1021994
|
[1] |
TUBE
|
|
| 9. |
K1021995
|
[1] |
TUBE
|
|
