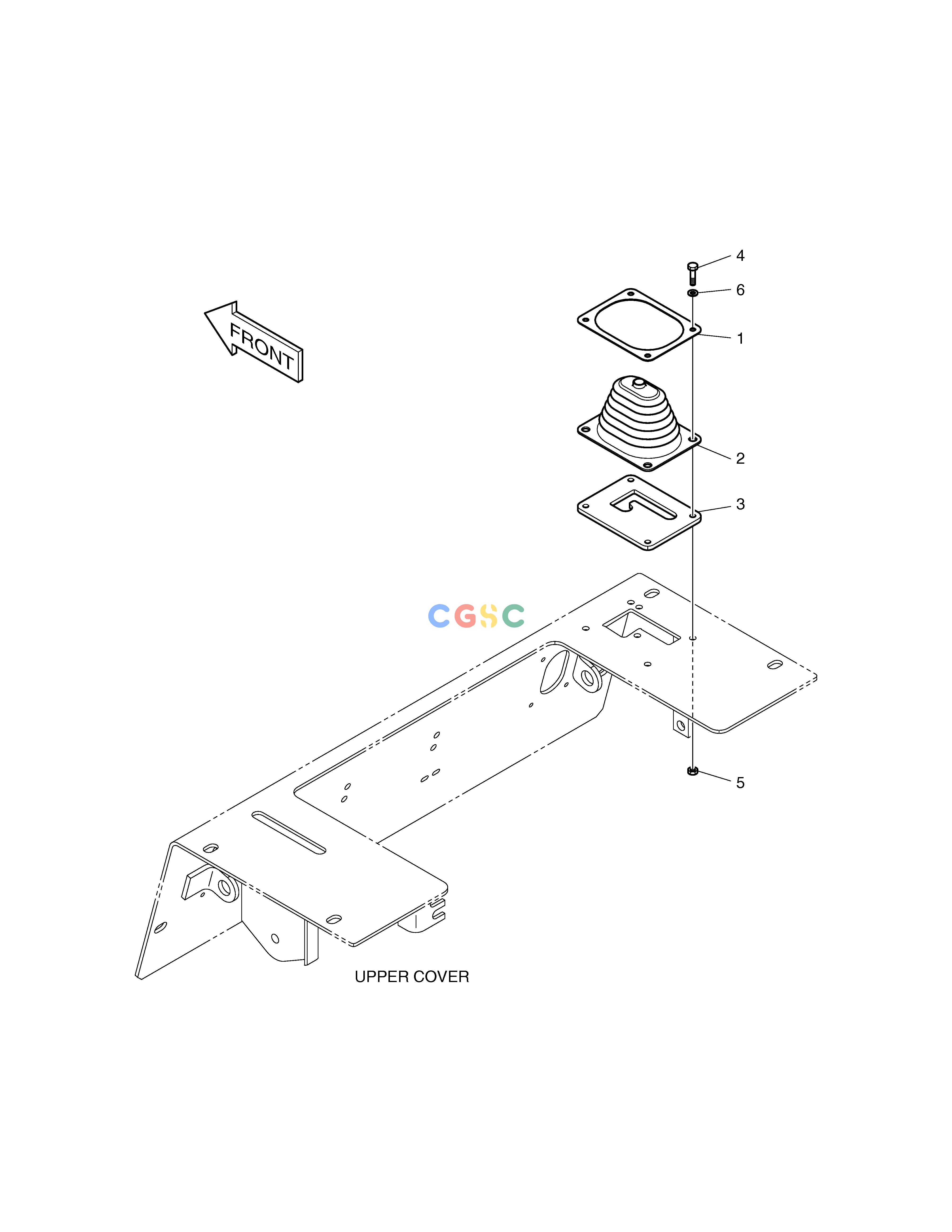

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020737 | [-] | BOOT ASS'Y | |
| 1. | K1020319 | [1] | PLATE | |
| 2. | K1020241 | [1] | BOOT | |
| 3. | K1020320 | [1] | GUIDE | |
| 4. | S0505063 | [4] | BOLT M6X1.0X25 | |
| 5. | S4016333 | [4] | NUT | |
| 6. | DS0401171 | [4] | WASHER;HARDENED |
广数供应链运营团队, 14 02月, 2025，浏览： 455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020737 | [-] | BOOT ASS'Y | |
| 1. | K1020319 | [1] | PLATE | |
| 2. | K1020241 | [1] | BOOT | |
| 3. | K1020320 | [1] | GUIDE | |
| 4. | S0505063 | [4] | BOLT M6X1.0X25 | |
| 5. | S4016333 | [4] | NUT | |
| 6. | DS0401171 | [4] | WASHER;HARDENED |
