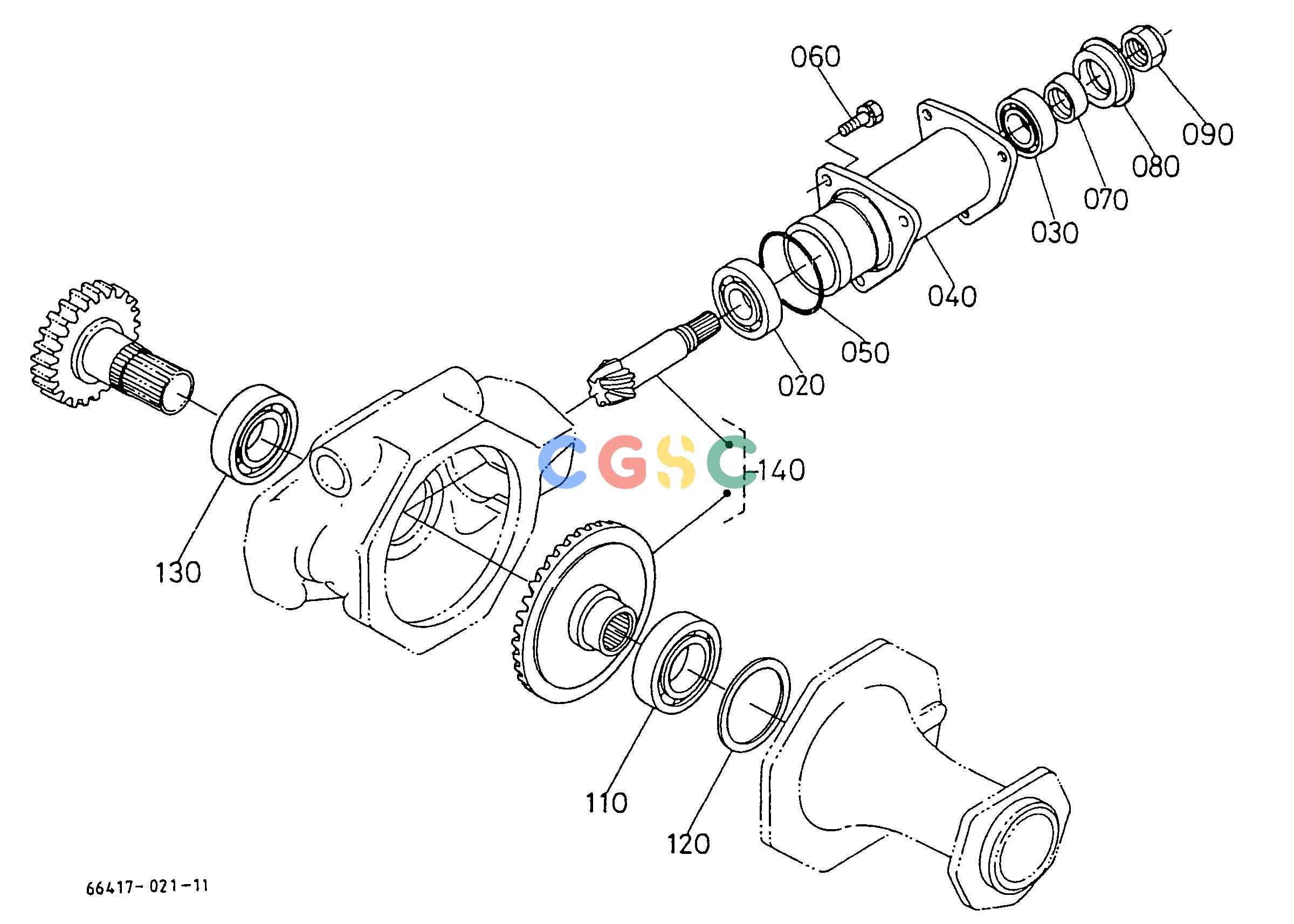

久保田零件查询T08100 BEVEL GEAR [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 020. |
0871130305
|
[1] |
BEARING TAPER-ROLLER
|
0.5852(lbs); 0.266
|
| 030. |
0871132005
|
[1] |
BEARING TAPER-ROLLER
|
0.2530(lbs); 0.115
|
| 030. |
6A10056680
|
[1] |
BEARING TAPER-ROLLER
|
0.2420(lbs); 0.110
|
| 040. |
6641656630
|
[1] |
SPACER
|
3.7620(lbs); 1.710
|
| 050. |
0481150600
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 060. |
0112350828
|
[3] |
BOLT
|
0.0308(lbs); 0.014
|
| 070. |
6659156420
|
[1] |
BUSH
|
0.0462(lbs); 0.021
|
| 080. |
6721114952
|
[1] |
SEAL OIL
|
0.0330(lbs); 0.015
|
| 090. |
3526023252
|
[1] |
NUT
|
0.0880(lbs); 0.040
|
| 110. |
0810106009
|
[1] |
BEARING BALL
|
0.4840(lbs); 0.220
|
| 120. |
6659114980
|
[1] |
SHIM DIFF.SIDE
|
0.0110(lbs); 0.005
|
| 120. |
6659114990
|
[1] |
SHIM DIFF.SIDE
|
0.0044(lbs); 0.002
|
| 120. |
6712156630
|
[1] |
SHIM DIFF.SIDE
|
0.0110(lbs); 0.005
|
| 130. |
0810106008
|
[1] |
BEARING BALL
|
0.4180(lbs); 0.190
|
| 140. |
6641699100
|
[1] |
ASSY GEAR BEVEL
|
5.4120(lbs); 2.460
|
