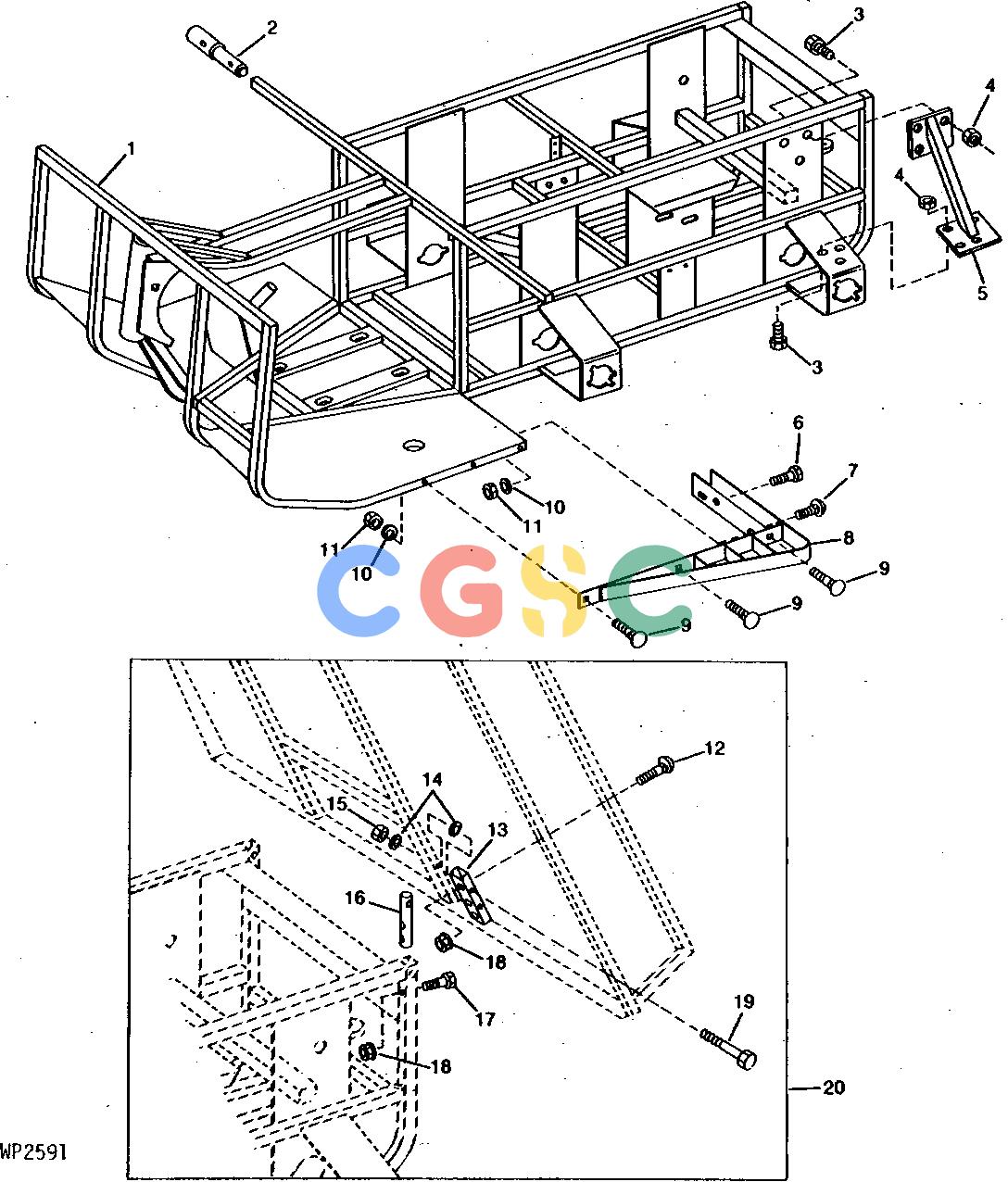

约翰迪尔零件查询622 - AMT FRAME CHASSIS RAHMEN TELAIO BASTIDOR RAM [E03]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AW26636
|
[1] |
MAIN FRAME
|
|
| 1. |
AW27306
|
[1] |
MAIN FRAME
|
|
| 1. |
AM108553
|
[1] |
MAIN FRAME
|
|
| 2. |
M96653
|
[2] |
Extension
|
|
| 3. |
19M7167
|
[20] |
CAP SCREW
|
|
| 4. |
14M7167
|
[20] |
LOCK NUT
|
|
| 5. |
AM108564
|
[4] |
Support
|
|
| 6. |
37M7086
|
[2] |
Screw
|
|
| 7. |
03M7216
|
[2] |
Bolt
|
|
| 8. |
AM108558
|
[1] |
Bracket
|
|
| 8. |
AM108559
|
[1] |
Bracket
|
|
| 9. |
03M7184
|
[6] |
Bolt
|
|
| 10. |
24H1289
|
[8] |
Washer
|
|
| 11. |
14M7166
|
[8] |
LOCK NUT
|
|
| 12. |
21M7126
|
[4] |
Bolt
|
|
| 13. |
........
|
[2] |
STRUCTURAL TUBING
|
|
| 14. |
24M7028
|
[4] |
Washer
|
|
| 15. |
14M7167
|
[2] |
LOCK NUT
|
|
| 16. |
........
|
[2] |
Pin
|
|
| 17. |
19M7323
|
[4] |
CAP SCREW
|
|
| 18. |
14M7166
|
[8] |
LOCK NUT
|
|
| 19. |
19M7347
|
[2] |
CAP SCREW
|
|
| 20. |
AM108541
|
[1] |
KIT
|
|
