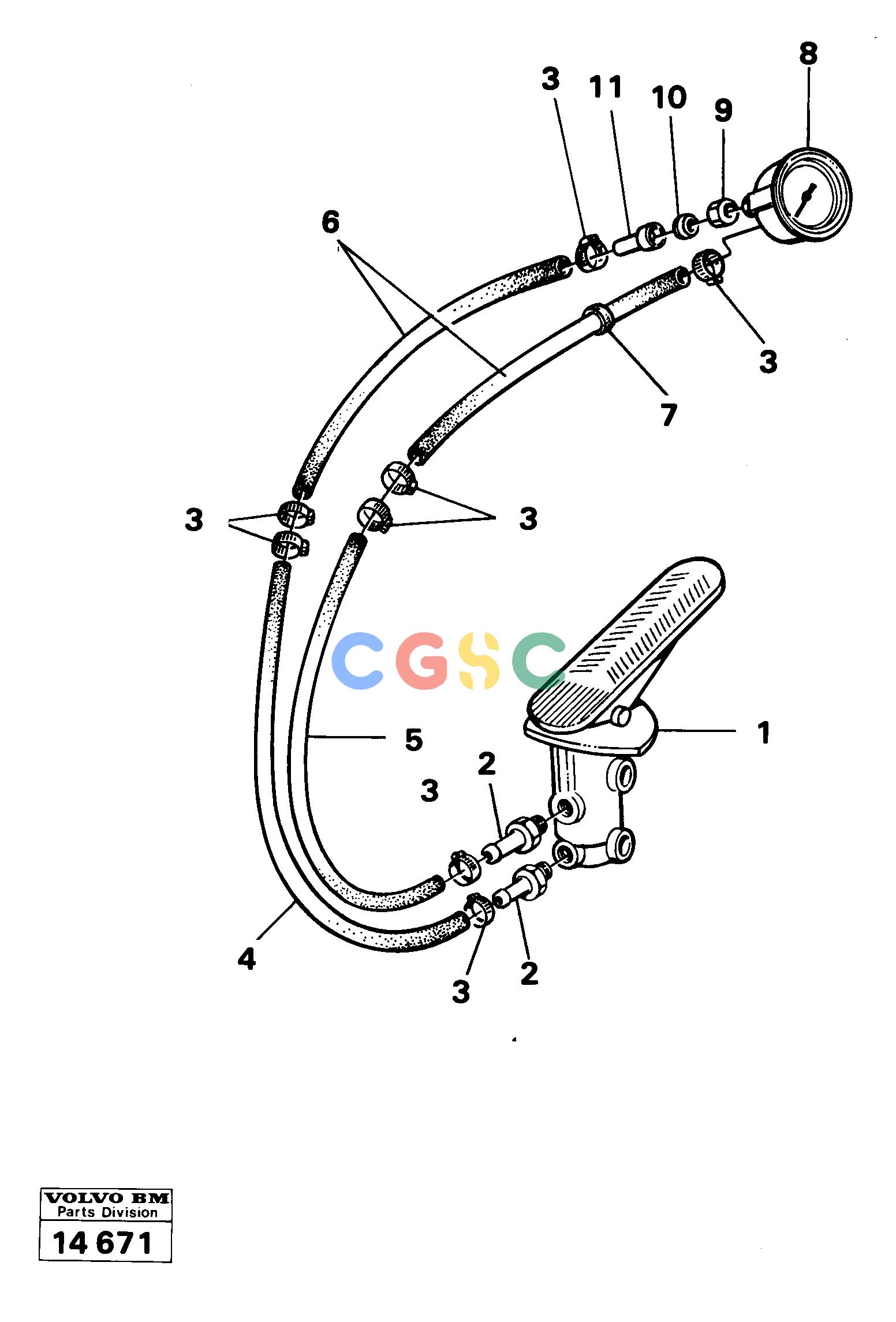

沃尔沃零件查询4300 Pressure gauge brake system Prod No 33101, 331044300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE961188
|
[0180] |
Hose
|
|
| 6. |
VOE961188
|
[REQ] |
Hose
|
L=2X750
|
| 7. |
VOE782571
|
[0001] |
Cover
|
|
| 8. |
VOE4803164
|
[0001] |
Pressure gauge
|
|
| 9. |
VOE954356
|
[0002] |
Fitting nut
|
|
| 1. |
|
[0001] |
Brake valve
|
|
| 10. |
VOE954364
|
[0002] |
Ferrule
|
|
| 11. |
VOE4927229
|
[0002] |
Tube
|
|
| |
VOE13949361
|
[0004] |
Sleeve
|
|
| 2. |
VOE784403
|
[0002] |
Hose nipple
|
|
| 3. |
VOE943470
|
[0008] |
Hose clamp
|
|
| 4. |
VOE961188
|
[0300] |
Hose
|
|
