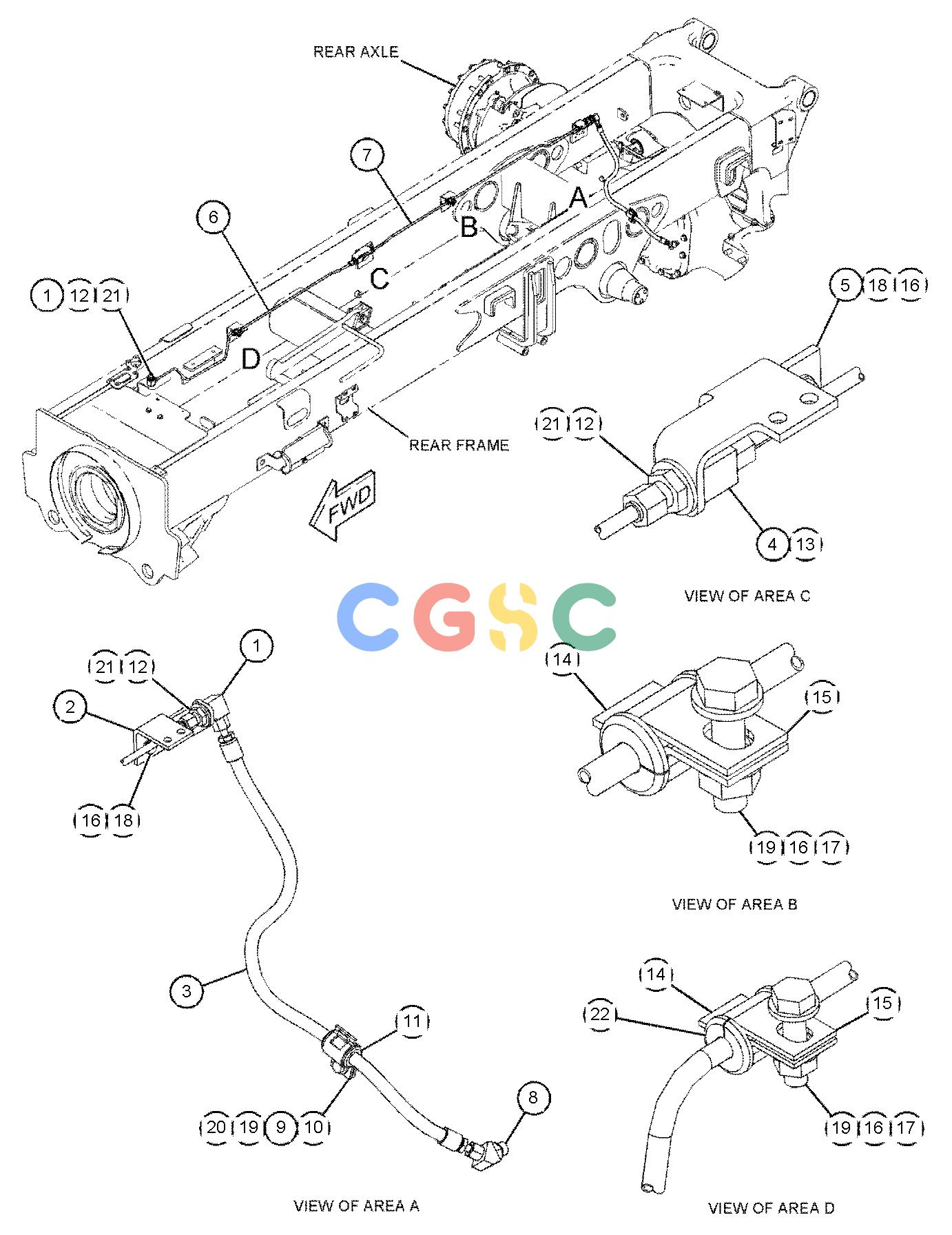

卡特零件查询（725） 372-2242: CONTROL GP-DIFFERENTIAL LOCK
广数供应链运营团队, 14 02月, 2025，浏览：
731 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8377 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 2. | 150-3907 | [1] | BRACKET | |
| 3. | 150-8984I | [1] | HOSE AS | |
| 4. | 153-6246 | [1] | TEE AS | |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 5. | 186-0132 | [1] | BRACKET | |
| 6. | 186-0456 | [1] | TUBE AS | |
| 7. | 186-0457 | [1] | TUBE AS | |
| 8. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 9. | 5P-7462 | [1] | CLIP(SLOT) | |
| 10. | 5P-7463 | [1] | CLIP(TAB) | |
| 11. | 6V-0683 | [1] | GROMMET | |
| 12. | 6V-9168 | [3] | NUT(11/16-16-THD) | |
| 13. | 6V-9829 | [1] | CAP | |
| 14. | 8T-1887 | [2] | CLIP(SLOT) | |
| 15. | 8T-1888 | [2] | CLIP(TAB) | |
| 16. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 18. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 19. | 8T-4186M | [3] | BOLT(M10X1.5X40-MM) | |
| 20. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4994 | [3] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 22. | 8W-8909 | [2] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
