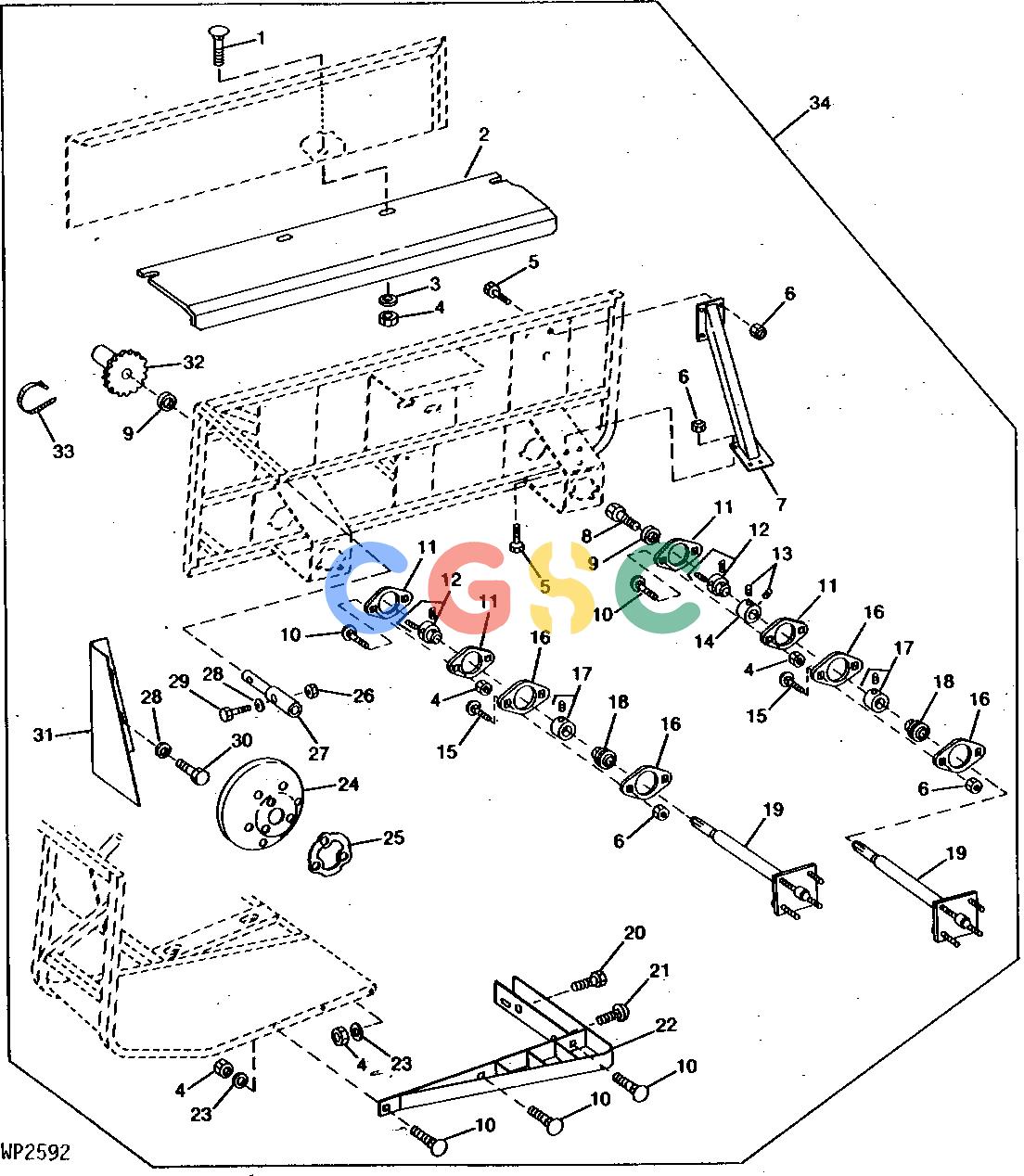

Pos.	Part No	Qty	Parts name	Comments
1.	03M7183	[8]	Bolt	M8 X 16
2.	M96642	[1]	Extension	R.H.
2.	M96643	[1]	Extension	L.H.
3.	24M7207	[8]	Washer	8.400 X 24 X 2 MM
4.	14M7166	[24]	LOCK NUT	M8
5.	19M7167	[20]	CAP SCREW	M10 X 25
6.	14M7167	[28]	LOCK NUT	M10
7.	AM108564	[4]	Support
8.	R91461	[2]	CAP SCREW
9.	R91571	[4]	Spacer
10.	03M7184	[14]	Bolt	M8 X 20
11.	M66125	[8]	Pressed Flanged Housing
12.	AM108591	[4]	BALL BEARING	(SUB FOR JD10419)
13.	22H979	[4]	SET SCREW	3/8" X 3/8"
14.	R91570	[2]	Ring
15.	03M7191	[8]	Bolt	M10 X 25
16.	N15764	[4]	Pressed Flanged Housing
17.	JD8544	[4]	ECCENTRIC LOCKING COLLAR
18.	JD8545	[4]	BALL BEARING
19.	AM108546	[4]	Axle
20.	37M7086	[2]	Screw	M10 X 20
21.	03M7216	[2]	Bolt	M8 X 50
22.	AM108558	[1]	Bracket	R.H.
22.	AM108559	[1]	Bracket	L.H.
23.	24H1289	[8]	Washer	21/64" X 5/8" X 0.049"
24.	M95399	[1]	Plate
25.	........	[1]	LOCK PLATE
26.	14M7165	[2]	LOCK NUT	M6
27.	M96653	[2]	Pin
28.	24H1287	[8]	Washer	9/32" X 5/8" X 0.065"
29.	19M7374	[2]	CAP SCREW	M6 X 40
30.	37H24	[4]	Screw	1/4" X 3/4"
31.	M96650	[1]	Panel	R.H.
31.	M96651	[1]	Panel	L.H.
32.	AM108569	[2]	CHAIN SPROCKET
33.	H77698	[1]	Tie Band	4.7 X 360 MM (0.18" X 14.2")
33.	R44302	[4]	Tie Band	4.6 X 171 MM (0.18" X 6.75")
34.	MPXX108567	[1]	KIT
