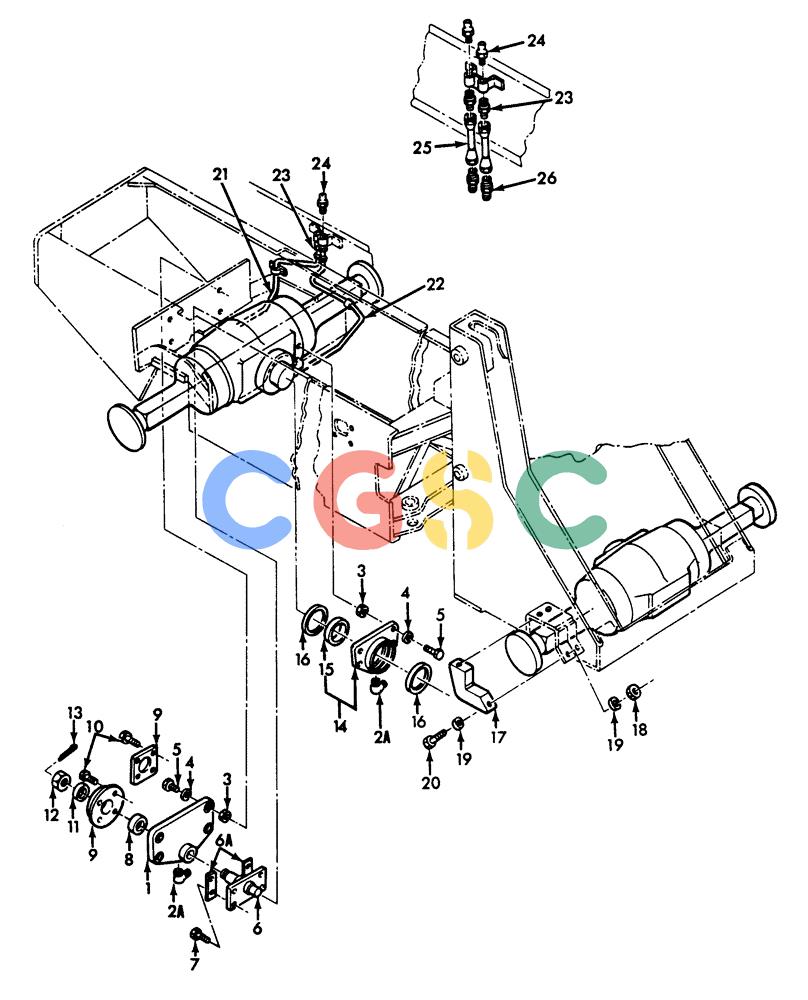

| 1. | D3NN4N147B29Z | [1] | SUPPORT | FORPivot, Rear |
| 2A. | 86512947 | [2] | 90 ELBOW,90º, 7/16"-20, 37º x 1/8"-27, NPTF | BHB |
| 3. | 280375 | [8] | NUT,3/4"-10, GC | WINNut, Lock, GC, 3/4"-10 |
| 4. | 86512328 | [8] | WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk | NH |
| 5. | 280128 | [8] | BOLT,Hex, 3/4" - 10 x 3", Gr 8 | FORScrew, Cap, HH, G8, 3/4"-10 x 3" |
| 6. | D8NN4N138BA | [1] | COTTER PIN | FORPin Assy. |
| 6A. | D5NN4N207A | [2] | LOCKING TAB | FORTabl, Lock, Pivot Pin Bolt |
| 7. | 87403 | [4] | BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5 | NHHH, G5, 3/4"-10 x 2-1/4" |
| 8. | 86000739 | [1] | SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 44.45mm W | WINBearing, Thrust |
| 9. | D8NN4N137AA29Z | [1] | CAP | FORRear Bearing |
| 10. | 88702 | [4] | BOLT,Hex, 9/16" x 1 1/2", Gr 5, Full Thd | PAScrew, Cap, HH, G5, 9/16"-12 x 1-1/2" |
| 11. | D8NN4947BA | [1] | SPACER | FOR |
| 12. | 385602S2 | [1] | NUT | FORRear Axle, 1-1/2"-18 |
| 13. | 72153S8 | [1] | PIN | FORSplit Cotter, 7/32" x 2-5/8" |
| 14. | D3NN4N142B29Z | [1] | SUPPORT | FORAssy. Includes: Ref. 15 |
| 15. | D3NN4N133A | [1] | BRONZE BUSHING,203.35mm ID x 210.59mm OD x 38.3mm L | FORBushing |
| 16. | D3NN4N141B | [2] | SEAL | FORPivot |
| 17. | D4NN5R052D29Z | [4] | CLAMP | FOR |
| 18. | 34994S7 | [8] | NUT | BASLock, Hex, 1-8 Superseded by part number: 81838622 |
| 19. | 87367 | [16] | WASHER,1.06" ID x 2" OD x 0.13" Thk | PASAE, 1" |
| 20. | 280675 | [8] | | FORCap, HH, G8, 1"-8 x 5" Superseded by part number: 80280675, 80280675, BER280675 |
| 21. | D9NN4N249AA | [1] | TUBE,0.25" OD | FORAssy., Rear Axle Lube, Rear, D66-O |
| 22. | D9NN4N235AA | [1] | TUBE,0.25" OD | FORAssy., Rear Axle Lube, Front, D66 |
| 23. | 86513589 | [2] | HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT | WINConnector |
| 24. | 9840056 | [2] | O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro | BHB4.734" ID x .139" Thk, for Fitting Superseded by part number: 87421149 |
| 25. | D8NN4N235FA | [2] | TUBE,0.25" OD x 7.38" L | FORAssy., Extension, Lube Tube, Germany Only |
| 26. | 128820 | [2] | UNION,7/16"-20, 37º x 7/16"-20, 37º | FORGermany Only |
