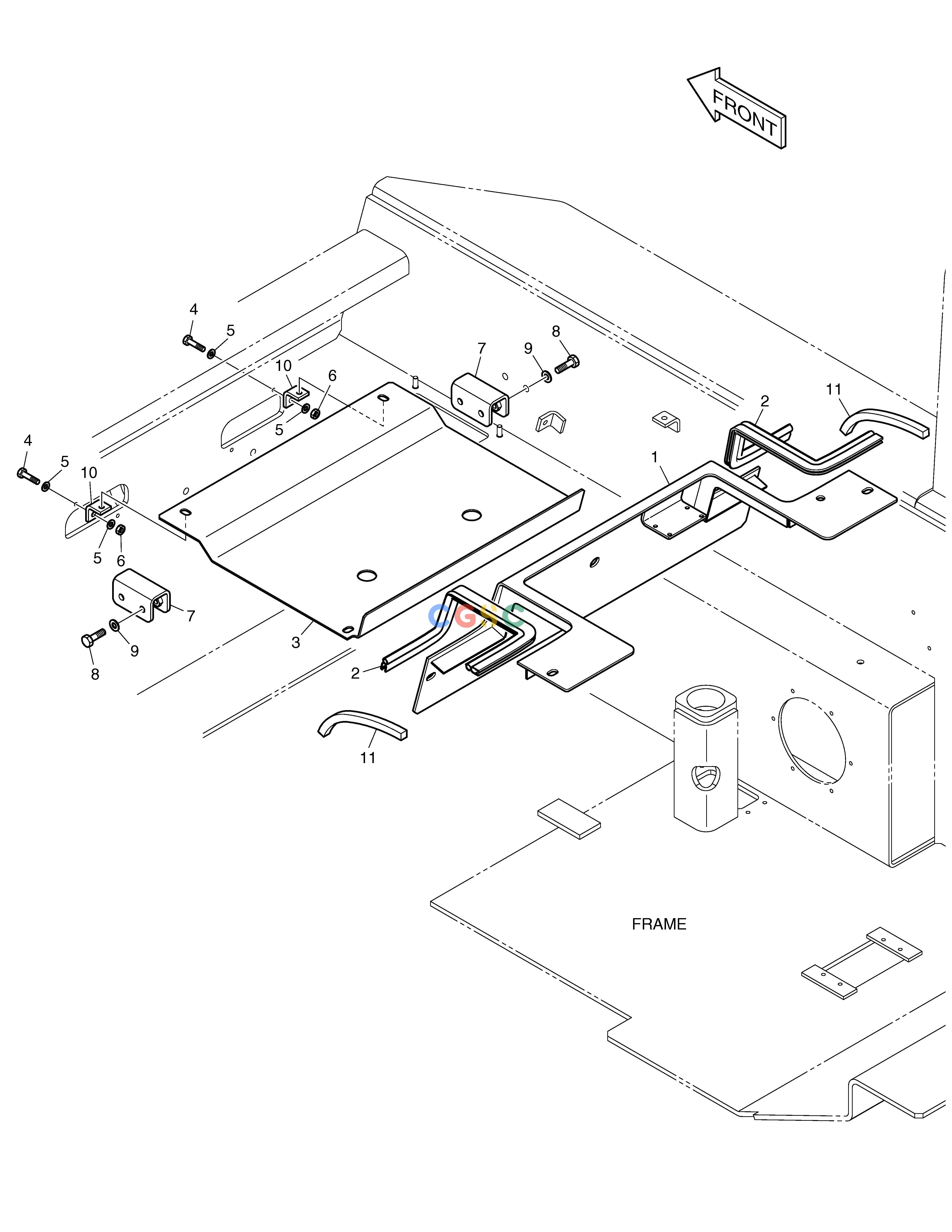

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1022147 | [-] | FLOOR PLATE | |
| 1. | K1022039 | [1] | PLATE;UPPER | |
| 10. | K1020200 | [2] | BRACKET | |
| 11. | K1023162 | [60] | SEAL | |
| 2. | K1019087 | [110] | STRIP;BULK | |
| 3. | K1021243 | [1] | PLATE;FOOR | |
| 4. | S0509363 | [2] | BOLT | |
| 5. | K1023146 | [4] | WASHER;HARDENED | |
| 6. | S4012533 | [2] | NUT | |
| 7. | K1022037 | [2] | BRACKET | |
| 8. | S0512363 | [4] | BOLT | |
| 9. | S5010613 | [4] | WASHER |
