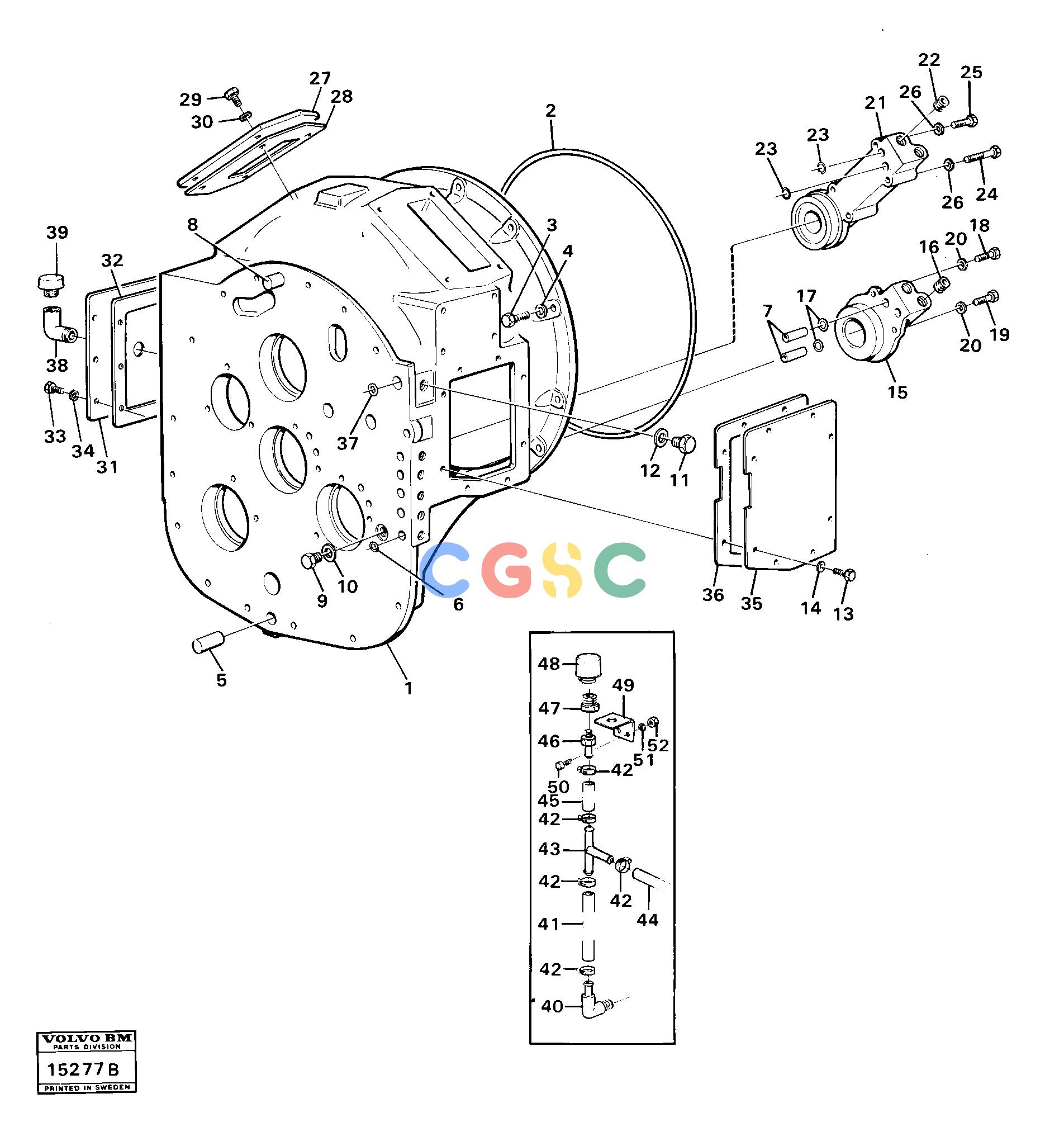

沃尔沃零件查询4300 Converter housing with fitting parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE926101
|
[0001] |
O-ring
|
|
| 43. |
VOE419446
|
[1] |
Tube
|
SER NO 4679 -
|
| 44. |
VOE945791
|
[REQ] |
Hose
|
SER NO 4679 -, L=950
|
| 45. |
VOE945791
|
[REQ] |
Hose
|
SER NO 4679 -, L=100
|
| 46. |
VOE947502
|
[1] |
Nipple
|
SER NO 4679 -
|
| 47. |
VOE4854955
|
[1] |
Nipple
|
SER NO 4679 -
|
| 48. |
VOE11172907
|
[1] |
Air filter
|
SER NO 4679 -
|
| 49. |
|
[1] |
Anchorage
|
|
| 50. |
VOE13955295
|
[2] |
Screw
|
SER NO 4679 -
|
| 51. |
VOE13941907
|
[2] |
Washer
|
SER NO 4679 -
|
| 52. |
VOE955782
|
[2] |
Hexagon nut
|
SER NO 4679 -
|
| 3. |
VOE955563
|
[0012] |
Hexagon screw
|
|
| 4. |
VOE940280
|
[0012] |
Spring washer
|
|
| 5. |
VOE4718167
|
[0001] |
Pin
|
|
| 6. |
VOE13949188
|
[0005] |
O-ring
|
|
| 1. |
VOE4716981
|
[0001] |
Housing
|
HT-2899
|
| 7. |
VOE131301
|
[0002] |
Pin
|
|
| 8. |
VOE950711
|
[0001] |
Pin
|
|
| 9. |
VOE914391
|
[0001] |
Plug
|
|
| 10. |
VOE947623
|
[0001] |
Gasket
|
|
| 11. |
VOE961895
|
[0001] |
Plug
|
|
| 12. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 13. |
VOE955297
|
[0008] |
Hexagon screw
|
|
| 14. |
VOE13941907
|
[0008] |
Washer
|
|
| 15. |
VOE4718026
|
[0001] |
Oil distributor
|
|
| 16. |
VOE952075
|
[0002] |
Plug
|
|
| |
|
|
None
|
PROD NO 30804
|
| 17. |
VOE13949188
|
[0002] |
O-ring
|
|
| 18. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 19. |
VOE955302
|
[0001] |
Hexagon screw
|
|
| 20. |
VOE13941907
|
[0003] |
Washer
|
|
| 21. |
VOE4718460
|
[0001] |
Oil distributor
|
|
| 22. |
VOE952075
|
[0002] |
Plug
|
|
| 23. |
VOE13949188
|
[0002] |
O-ring
|
|
| 24. |
VOE940132
|
[0002] |
Hexagon screw
|
|
| 25. |
VOE955302
|
[0002] |
Hexagon screw
|
|
| 26. |
VOE13941907
|
[0004] |
Washer
|
|
| |
VOE4871116
|
[0001] |
Housing
|
PROD 30804 HT 2900 -
|
| 27. |
VOE4718094
|
[0001] |
Cover
|
PROD NO 30804
|
| 28. |
VOE11036036
|
[0001] |
Gasket
|
PROD NO 30804
|
| 29. |
VOE970945
|
[0004] |
Hexagon screw
|
PROD NO 30804
|
| 30. |
VOE941908
|
[0004] |
Spring washer
|
PROD NO 30804
|
| 31. |
VOE4718093
|
[0001] |
Cap
|
HT-2039
|
| |
VOE4720591
|
[0001] |
Cover
|
HT 2040 - 2580
|
| |
VOE4871663
|
[0001] |
Cover
|
HT 2581 -
|
| 32. |
VOE11036035
|
[0001] |
Gasket
|
|
| 33. |
VOE13955294
|
[0008] |
Screw
|
HT - 2039
|
| |
VOE940142
|
[0008] |
Hexagon screw
|
HT 2040 -
|
| 34. |
VOE13941907
|
[0008] |
Washer
|
|
| 35. |
VOE4720727
|
[0001] |
Cover
|
|
| |
VOE4871116
|
[0001] |
Housing
|
PROD 30818
|
| 36. |
VOE11036034
|
[0001] |
Gasket
|
|
| 37. |
VOE949190
|
[0001] |
O-ring
|
|
| 38. |
|
[0001] |
Elbow nipple
|
PROD NO 30804 HT - 2039
|
| |
|
|
None
|
PROD NO 30818 HT - 2351
|
| |
VOE942758
|
[0001] |
Nipple
|
PROD NO 30818 HT 2352 -
|
| 39. |
VOE784915
|
[0001] |
Air filter
|
PROD NO 30804 HT 2040 -
|
| |
|
|
None
|
PROD NO 30818 HT - 2351
|
| 40. |
VOE942758
|
[0001] |
Nipple
|
SER NO 4679 -
|
| 41. |
VOE945791
|
[REQ] |
Hose
|
SER NO 4679 -, L=400
|
| 42. |
VOE943469
|
[0006] |
Hose clamp
|
|
| |
|
|
None
|
SER NO 4679 -
|
