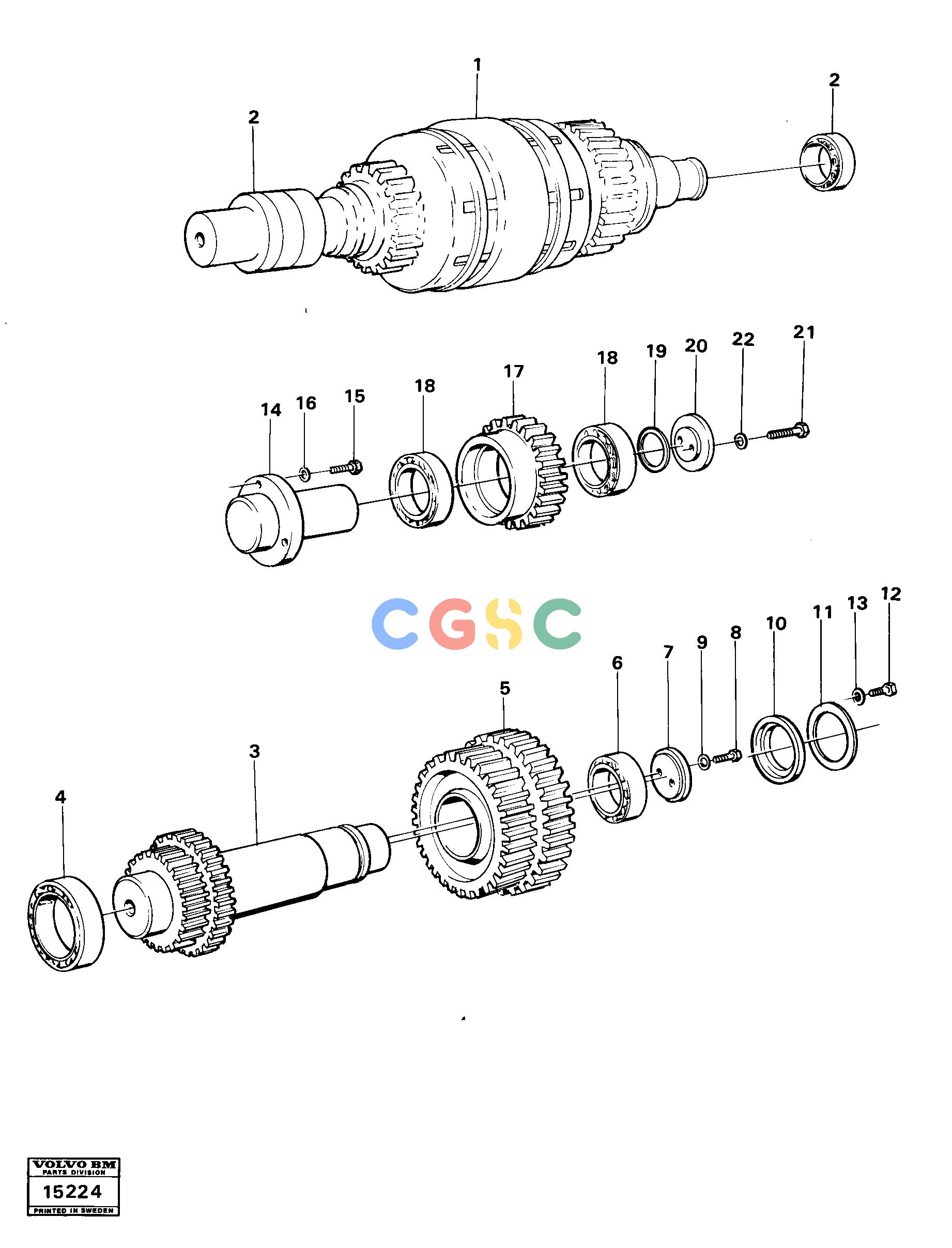

沃尔沃零件查询4300 Clutches, gears and shafts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Clutchs
|
3:AN-4:AN/3:RD-4:TH
|
| |
|
|
None
|
|
| 2. |
VOE183824
|
[2] |
Roller bearing
|
|
| 3. |
VOE4718578
|
[1] |
Shaft
|
PROD NO 30804, 30818
|
| |
VOE4871326
|
[1] |
Shaft
|
|
| 1. |
|
[1] |
Clutchs
|
FRAM-BACK/FRONT-REVERSE
|
| 4. |
VOE183814
|
[1] |
Roller bearing
|
|
| |
VOE183814
|
[1] |
Roller bearing
|
|
| 5. |
VOE4871029
|
[1] |
Gear
|
|
| 6. |
VOE7018494
|
[1] |
Roller bearing
|
|
| 7. |
VOE4718927
|
[1] |
Washer
|
|
| 8. |
VOE13955295
|
[2] |
Screw
|
|
| 9. |
VOE13941907
|
[2] |
Washer
|
|
| 10. |
VOE4718169
|
[1] |
Spacer ring
|
|
| 11. |
VOE4718023
|
[REQ] |
Shim
|
THICK=1.0
|
| |
VOE4718024
|
[REQ] |
Shim
|
THICK=0.35
|
| |
|
|
None
|
|
| |
VOE4718025
|
[REQ] |
Shim
|
THICK=0.1
|
| 12. |
VOE955269
|
[2] |
Hexagon screw
|
|
| 13. |
VOE60110304
|
[0002] |
Washer
|
|
| 14. |
VOE4719286
|
[0001] |
Pin
|
|
| 15. |
VOE940132
|
[0003] |
Hexagon screw
|
|
| 16. |
VOE13941907
|
[0003] |
Washer
|
|
| 17. |
VOE4719287
|
[0001] |
Gear
|
|
| 18. |
VOE181305
|
[2] |
Roller bearing
|
|
| |
VOE183842
|
[2] |
Roller bearing
|
|
| 19. |
VOE947120
|
[REQ] |
Shim
|
THICK=0.5
|
| |
|
[1] |
Clutchs
|
1:AN-2:AN/1:ST-2:ND
|
| |
VOE7034614
|
[REQ] |
Shim
|
THICK=0.35
|
| |
VOE7034615
|
[REQ] |
Shim
|
THICK=0.1
|
| 20. |
VOE4719288
|
[1] |
Washer
|
|
| 21. |
VOE940142
|
[2] |
Hexagon screw
|
|
| 22. |
VOE13941907
|
[2] |
Washer
|
|
| |
|
|
None
|
|
