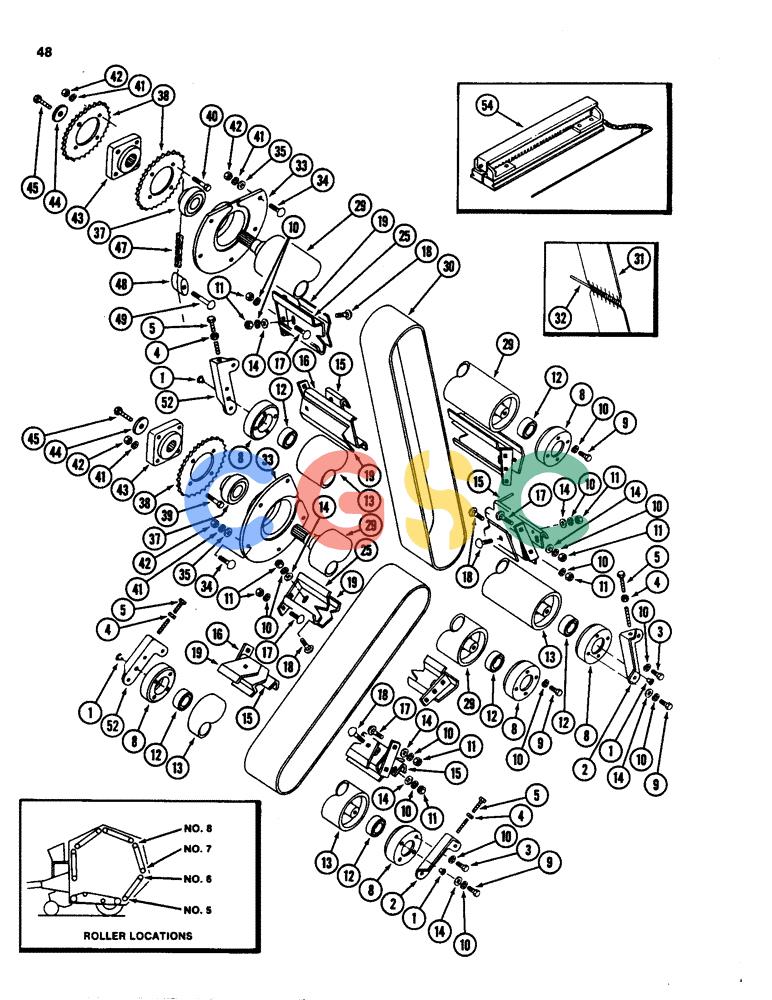

| 1. |
1017954R1
|
[8] |
PLUG,Cap, .485" OD
|
IH
- cap Superseded by part number: 87644289
|
| 2. |
ZA105038
|
[2] |
BLOCK
|
IH
- adjusting, left
|
| 3. |
180081
|
[1] |
BOLT,Hex, 5/16"-18 x 1 1/4", G5
|
IH
hex, 5/16"-18 NC x 1-1/4", grade 5 Superseded by part number: 179820
|
| 4. |
120378
|
[4] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 5. |
180192
|
[4] |
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
|
IH
BOLT - hex, 1/2 NC x 3-1/2 inch Superseded by part number: 179895
|
| 8. |
ZA105796
|
[6] |
COLLAR
|
CAS
- bearing
|
| 9. |
9635884
|
[1] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
- hex, 5/16 NC x 1 inch
|
| 10. |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 11. |
120376
|
[1] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 12. |
ZA105794
|
[6] |
BALL BEARING
|
CAS
BEARING - hex bore, 1.25 inch (32 mm) ID Superseded by part number: 47442495
|
| 13. |
ZA105916
|
[2] |
ROLLER
|
CAS
ASSEMBLY - Number 5 and 7
|
| 14. |
21448R1
|
[1] |
WASHER
|
CAS
- flat, 11/32 x 7/8 x 3/64 inch (9 x 22 x 1 mm) Superseded by part number: 495-81253
|
| 15. |
ZA105997
|
[2] |
DIVIDER
|
CAS
- belt
|
| 16. |
ZA105999
|
[2] |
BRACKET
|
CAS
- divider/scraper
|
| 17. |
16897R1
|
[1] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT - round head square neck, 5/16 NC x 3/4 inch, Grade 1 Superseded by part number: 412-512
|
| 18. |
12872R1
|
[1] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| 19. |
ZA105996
|
[4] |
STRIPPER
|
CAS
SCRAPER - roller
|
| 25. |
ZA105995
|
[2] |
BRACKET
|
CAS
- scraper
|
| 29. |
ZA105922
|
[2] |
ROLLER
|
CAS
ASSEMBLY - Number 6 and 8
|
| 30. |
ZA105005
|
[8] |
BELT
|
IH
- roller, endless, 11 inch (279 mm) wide (Alternate part is ZA105003) Superseded by part number: 700709544
|
| 31. |
ZA105003
|
[8] |
BELT
|
IH
- Roller, 11 inch (279 mm) wide (Alternate part is ZA105005) Superseded by part number: 700724731
|
| 32. |
ZA102977
|
[1] |
PIN
|
IH
- belt
|
| 33. |
ZA104841
|
[2] |
HOUSING
|
IH
- bearing
|
| 34. |
18684R1
|
[10] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
- round head square neck, 3/8 NC x 1-1/4 inch, Grade 1 Superseded by part number: 550796R1
|
| 35. |
120394
|
[10] |
WASHER,3/8", SAE
|
IH
WASHER - flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 mm) Superseded by part number: 87016
|
| 37. |
96328C1
|
[2] |
BALL BEARING,40mm ID x 80mm OD x 22mm W
|
CAS
- ball, 1.57 inch (40 mm) ID
|
| 38. |
ZA104227
|
[3] |
SPROCKET ASSY.
|
IH
SPROCKET - 30 tooth
|
| 39. |
180130
|
[4] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
IH
- hex, 3/8 NC x 2 inch Superseded by part number: 113-219
|
| 40. |
113-257
|
[4] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
- hex, 3/8 NC x 2-1/2 inch Superseded by part number: 87936
|
| 41. |
120382
|
[18] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 42. |
120377
|
[18] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 43. |
ZA104593
|
[2] |
HUB
|
IH
- splined
|
| 44. |
357020R1
|
[2] |
WASHER
|
IH
- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 mm)
|
| 45. |
26317R1
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8
|
IH
- hex lock, 1/2 NC x 1-1/4 inch, Grade 8
|
| 47. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY - Roller 8 to Roller 6 (Use 121 links from bulk chain 611362R91, 1 offset link 612612R91, and 1 connecting link 574532R91)
|
| . . |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3 m) roll Superseded by part number: 611362R91X
|
| . . |
612612R91
|
[1] |
CHAIN LINK
|
IH
LINK - chain, offset Superseded by part number: 241-1716
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK - chain, connnecting Superseded by part number: 241-1316
|
| 48. |
ZA304776
|
[1] |
SLIDE
|
IH
- chain Superseded by part number: 700709424
|
| 49. |
27464R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5
|
IH
BOLT - round head square neck, 1/2 NC x 4 inch Superseded by part number: 87495288
|
| 52. |
ZA105037
|
[2] |
BLOCK
|
IH
- adjusting, right
|
| 54. |
1254050C1
|
[1] |
TOOL
|
IH
LACER - belt, 6 inch (152 mm) Superseded by part number: 828459
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT - repair, belt (Box of lacing hooks)
|
