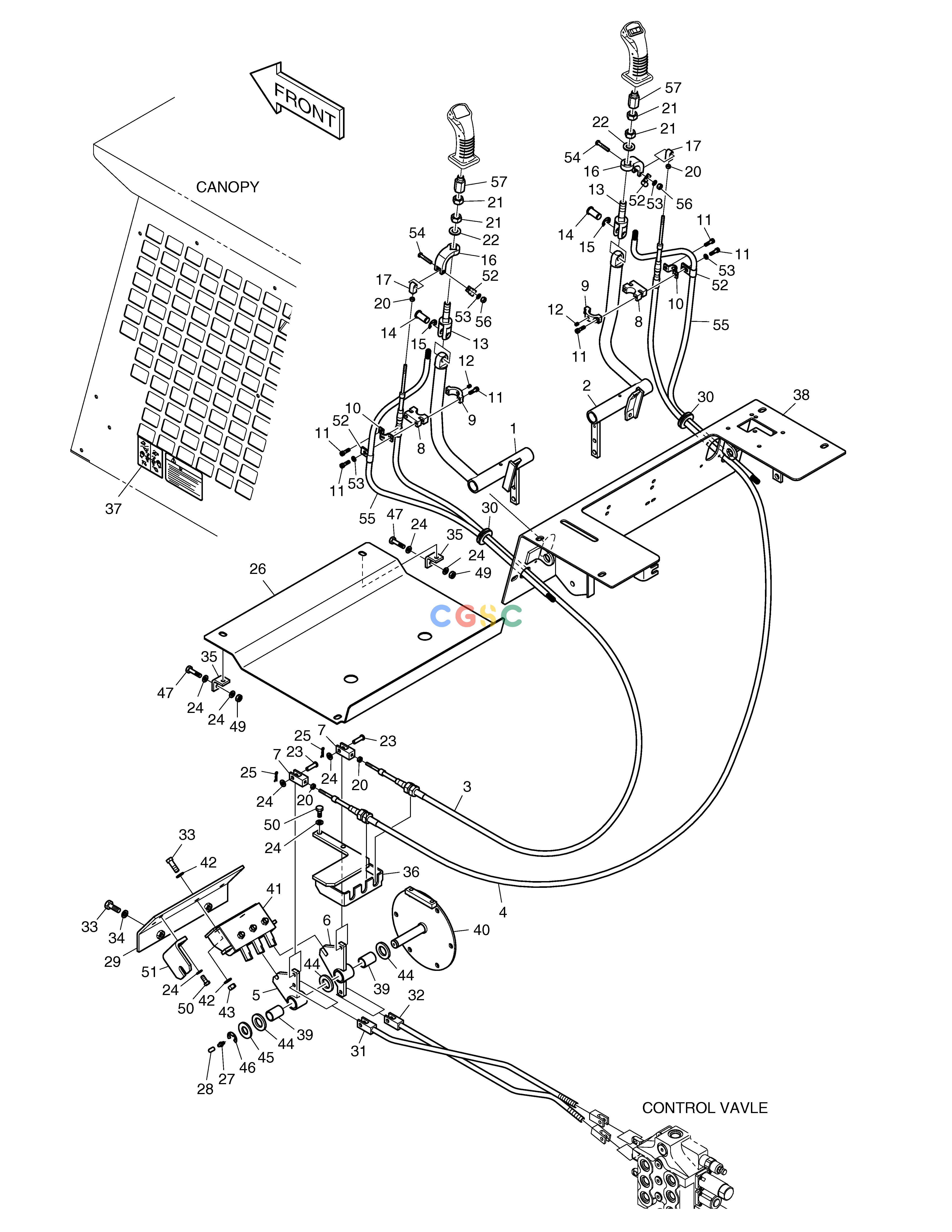

斗山零件查询HAND CONTROL 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023359
|
[-] |
HAND CONTROL
|
|
| 1. |
K1021020
|
[1] |
LEVER(L.H)
|
|
| 10. |
K1023036
|
[2] |
CLAMP
|
|
| 11. |
S2204861
|
[8] |
BOLT
|
|
| 12. |
S3522503
|
[2] |
SCREW;SET
|
|
| 13. |
K1021021
|
[2] |
YOKE
|
|
| 14. |
K1021022
|
[2] |
PIN
|
|
| 15. |
S6500140
|
[2] |
RING RETAINING
|
|
| 16. |
K1020184
|
[2] |
YOKE
|
|
| 17. |
K1020178
|
[2] |
YOKE
|
|
| 2. |
K1021019
|
[1] |
LEVER(R.H)
|
|
| 20. |
S4016333
|
[5] |
NUT
|
|
| 21. |
S4030833
|
[4] |
NUT
|
|
| 22. |
S5010813
|
[2] |
WASHER;PLAIN
|
|
| 23. |
S5760232
|
[2] |
PIN;CLEVIS
|
|
| 24. |
K1023146
|
[10] |
WASHER;HARDENED
|
|
| 25. |
S180333H
|
[2] |
PIN
|
|
| 26. |
K1021243
|
[1] |
PLATE;FOOR
|
|
| 27. |
K1019735
|
[1] |
NIPPLE;GREASE
|
|
| 28. |
K1019808
|
[1] |
CAP;GREASE NIPPLE
|
|
| 29. |
K1021722
|
[1] |
BRACKET
|
|
| 3. |
K1020173
|
[1] |
CABLE
|
|
| 30. |
S994012H
|
[2] |
GROMMET
|
|
| 31. |
K1021035
|
[1] |
ROD
|
|
| 32. |
K1021037
|
[1] |
ROD
|
|
| 33. |
S0512263
|
[4] |
BOLT
|
|
| 34. |
S5100603
|
[2] |
WASHER
|
|
| 35. |
K1020200
|
[2] |
BRACKET
|
|
| 36. |
K1020627
|
[1] |
BRACKET
|
|
| 37. |
K1020227
|
[1] |
FILM(HANDLE OPERATING)
|
|
| 38. |
K1021864
|
[1] |
PLATE;UPPER
|
|
| 39. |
K1019773
|
[2] |
BUSHING
|
|
| 4. |
K1020174
|
[1] |
CABLE
|
|
| 40. |
K1021689
|
[1] |
COVER
|
|
| 41. |
K1019928
|
[1] |
LOCK;PEDAL
|
|
| 42. |
K1023136
|
[4] |
WASHER;HARDENED
|
|
| 43. |
S4016643
|
[2] |
NUT
|
|
| 44. |
K1019765
|
[3] |
SPACER
|
|
| 45. |
DS0401113
|
[1] |
WASHER
|
|
| 46. |
K1019736
|
[1] |
RING;RETAINING
|
|
| 47. |
S0509363
|
[2] |
BOLT
|
|
| 49. |
S4012533
|
[2] |
NUT
|
|
| 5. |
K1020185
|
[1] |
LINK
|
|
| 50. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 51. |
K1019996
|
[1] |
BRACKET
|
|
| 52. |
K1022974
|
[4] |
CLIP
|
|
| 53. |
S5010313
|
[4] |
WASHER
|
|
| 54. |
S0553363
|
[2] |
BOLT
|
|
| 55. |
K1021010
|
[2] |
TUBE;CORRUGATE
|
|
| 56. |
K1023117
|
[2] |
NUT;LOCK
|
|
| 57. |
K1021232
|
[2] |
SPACER
|
|
| 6. |
K1020186
|
[1] |
LINK
|
|
| 7. |
K1020175
|
[2] |
YOKE
|
|
| 8. |
K1020176
|
[2] |
BLOCK
|
|
| 9. |
K1020177
|
[2] |
BLOCK
|
|
