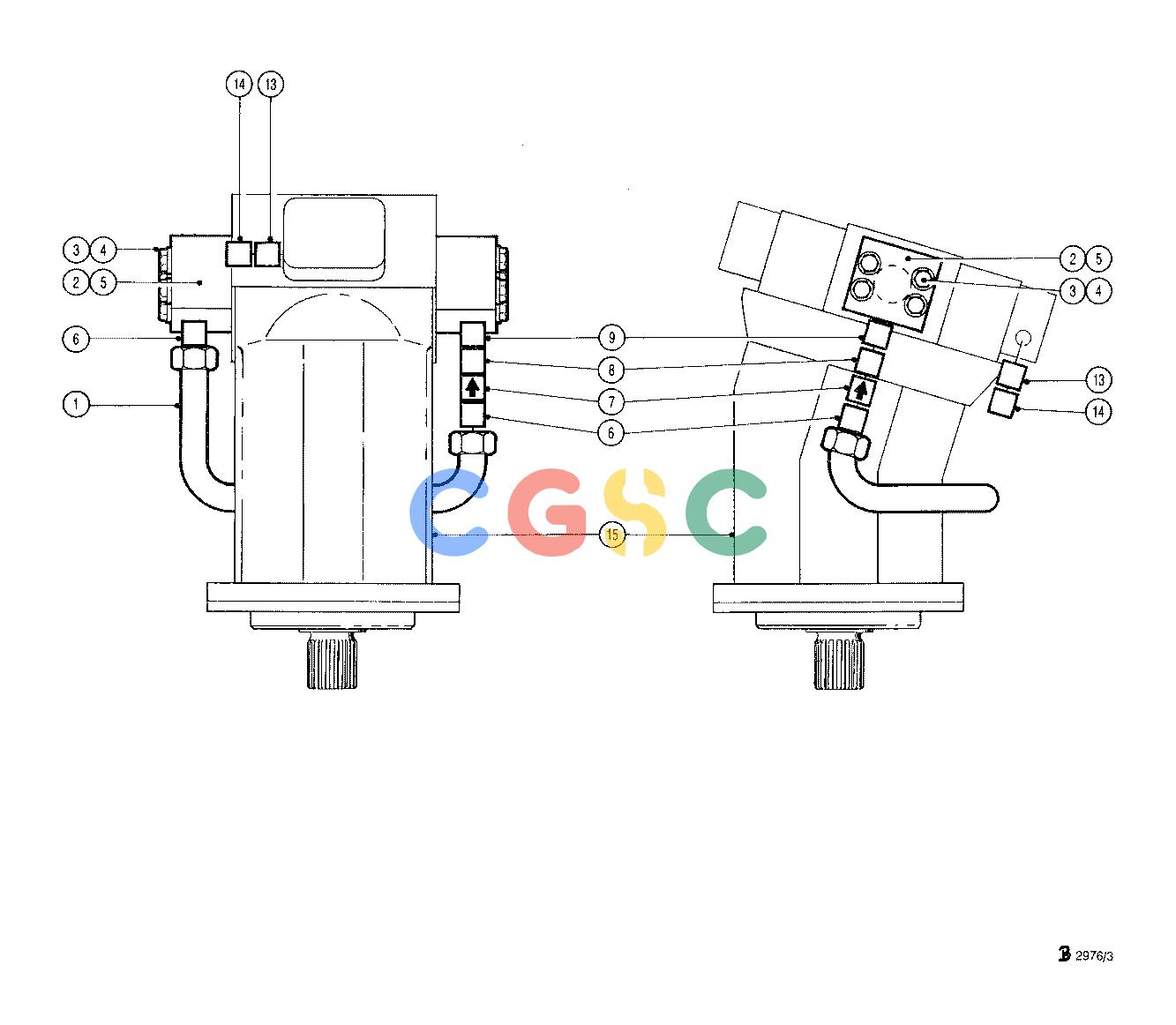

约翰迪尔零件查询18``DTT - ATTACHMENTS HYDRAULIC SYSTEM SAW MOTOR 18`` HEAD 107cc MOTOR ( 68110 - ) 2000-168/10 [2000-168/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700273400
|
[1] |
TUBE -
|
|
| 2. |
700070400
|
[2] |
ADAPTOR -
|
|
| 3. |
810082000
|
[8] |
BOLT 7/16-14UC 3-1/2 -
|
|
| 4. |
810309900
|
[8] |
WASHER 7/16 -
|
|
| 5. |
810574200
|
[2] |
O-RING -
|
|
| 6. |
811441300
|
[2] |
ADAPTER -
|
|
| 7. |
700591800
|
[1] |
VALVE-CHECK -
|
|
| 8. |
840547100
|
[1] |
O-RING -
|
|
| 9. |
810115500
|
[1] |
FITTING -
|
|
| 13. |
810862800
|
[2] |
ADAPTER -
|
|
| 14. |
810626000
|
[2] |
CAP -
|
|
| 15. |
-------
|
[1] |
MOTOR - DISC SAW - SECT. 2200
|
|
