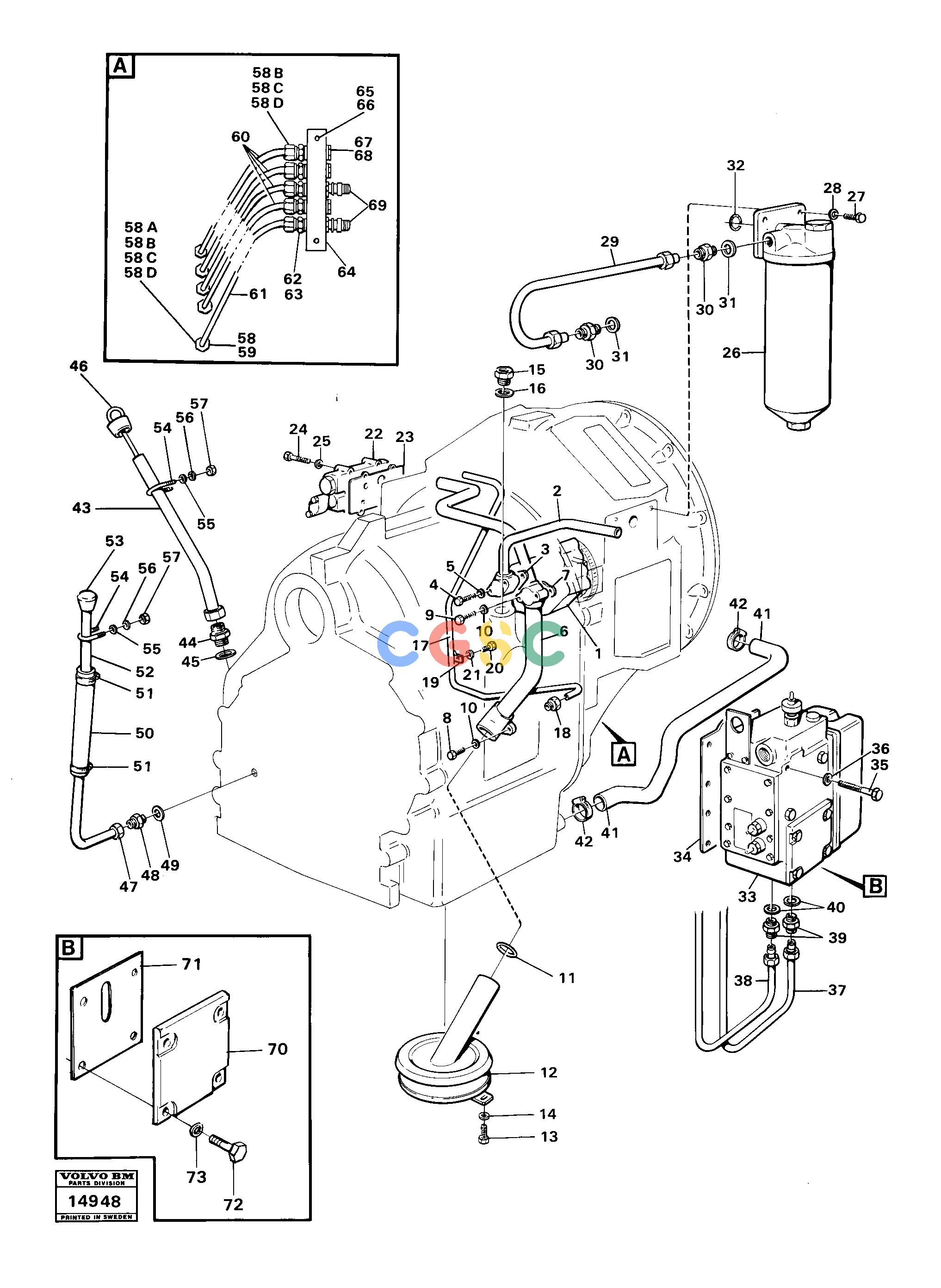

沃尔沃零件查询4300 Hydraulic lines, valves and filter4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13941907
|
[0002] |
Washer
|
|
| 48. |
VOE13943988
|
[0001] |
Nipple
|
|
| 49. |
VOE13947629
|
[0001] |
Plane gasket
|
|
| 50. |
VOE190993
|
[0260] |
Hose
|
|
| 51. |
VOE943475
|
[0002] |
Hose clamp
|
|
| 52. |
VOE4927224
|
[0001] |
Oil filler pipe
|
|
| 53. |
VOE739370
|
[0001] |
Rubber cap
|
|
| 54. |
VOE4739982
|
[0002] |
Clamp
|
|
| 55. |
VOE13960141
|
[0004] |
Washer
|
|
| 56. |
VOE13941907
|
[0004] |
Washer
|
|
| 57. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 6. |
VOE4718697
|
[0001] |
Tube
|
|
| 58. |
VOE13963958
|
[0005] |
Nipple
|
SER NO -1262
|
| 58A. |
VOE13945355
|
[5] |
Nipple
|
SER NO 1263-
|
| 58B. |
VOE941521
|
[10] |
Fitting nut
|
SER NO 1263-
|
| 58C. |
VOE13956967
|
[10] |
Ferrule
|
SER NO 1263-
|
| 58D. |
VOE13949361
|
[10] |
Sleeve
|
SER NO 1263-
|
| 59. |
VOE13947621
|
[5] |
Plane gasket
|
|
| 60. |
VOE4928235
|
[4] |
Tube
|
SER NO -1262
|
| |
VOE944963
|
[4] |
Plastic pipe
|
L=600 SER NO 1263-
|
| 61. |
VOE4928237
|
[0001] |
Tube
|
SER NO -1262
|
| |
VOE944963
|
[0001] |
Plastic pipe
|
L=600 SER NO 1263-
|
| 7. |
VOE11036099
|
[0001] |
Gasket
|
|
| 62. |
VOE13963958
|
[0005] |
Nipple
|
SER NO -1262
|
| |
VOE13945355
|
[5] |
Nipple
|
SER NO 1263-
|
| 63. |
VOE13949574
|
[5] |
O-ring
|
|
| 64. |
VOE4928238
|
[1] |
Testing block
|
SER NO -1852
|
| |
VOE4850324
|
[1] |
Testing block
|
SER NO 1853-
|
| 65. |
VOE997425
|
[2] |
Hexagon screw
|
|
| 66. |
VOE13955894
|
[2] |
Washer
|
|
| 67. |
VOE941371
|
[5] |
Plug
|
SER NO -1025
|
| |
VOE941371
|
[3] |
Plug
|
SER NO 1026-
|
| 68. |
VOE958225
|
[5] |
O-ring
|
SER NO -1025
|
| |
VOE13949574
|
[3] |
O-ring
|
SER NO 1026-
|
| 8. |
VOE955303
|
[0002] |
Hexagon screw
|
|
| 69. |
VOE930032
|
[2] |
Testing nipple
|
SER NO 1026-
|
| 70. |
VOE4719354
|
[1] |
Cap
|
PROD NO 30804 HT-2940
|
| 71. |
VOE11036120
|
[1] |
Gasket
|
PROD NO 30804 HT -2940
|
| 72. |
VOE955309
|
[4] |
Hexagon screw
|
PROD NO 30804 HT -2940
|
| 73. |
VOE13941907
|
[4] |
Washer
|
|
| 9. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 1. |
|
[0001] |
Oil pump
|
|
| 10. |
VOE13941907
|
[0004] |
Washer
|
|
| 11. |
VOE13948254
|
[0001] |
O-ring
|
|
| 12. |
VOE4718803
|
[0001] |
Strainer
|
|
| 13. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE13941906
|
[0002] |
Washer
|
|
| 15. |
VOE13949285
|
[0001] |
Nipple
|
|
| 16. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 17. |
VOE4720705
|
[0001] |
Tube
|
|
| |
VOE4720705
|
[0001] |
Tube
|
PROD NO 30818
|
| 18. |
VOE4785344
|
[0001] |
Fitting
|
|
| 19. |
VOE951191
|
[0001] |
Clamp
|
|
| 2. |
VOE4718084
|
[0001] |
Tube
|
|
| 20. |
VOE955244
|
[0001] |
Hexagon screw
|
|
| 21. |
VOE941905
|
[0001] |
Spring washer
|
|
| 22. |
|
[0001] |
Valve
|
|
| 23. |
VOE11036354
|
[0001] |
Gasket
|
|
| 24. |
VOE955302
|
[0004] |
Hexagon screw
|
|
| 25. |
VOE13941907
|
[0004] |
Washer
|
|
| 26. |
VOE4786847
|
[0001] |
Oil Filter
|
PROD NO 30804 HT-1552
|
| |
|
|
None
|
|
| |
VOE4720309
|
[0001] |
Oil Filter
|
PROD NO 30804
|
| |
|
|
None
|
HT 1553 -
|
| |
VOE4787923
|
[0001] |
Filter cartridge
|
|
| |
|
|
None
|
PROD NO 30818
|
| 27. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 28. |
VOE941908
|
[0004] |
Spring washer
|
|
| 29. |
VOE4719392
|
[0001] |
Tube
|
PROD NO 30804 HT-1552
|
| |
VOE11036615
|
[0001] |
Tube
|
PROD NO 30804 HT 1553-
|
| |
VOE11036615
|
[0001] |
Tube
|
PROD NO 30818
|
| 3. |
VOE11036101
|
[0001] |
Gasket
|
|
| 30. |
VOE13943988
|
[0002] |
Nipple
|
|
| 31. |
VOE4881255
|
[0002] |
Plane gasket
|
|
| 32. |
VOE949190
|
[0001] |
O-ring
|
PROD NO 30804 HT-1552
|
| |
VOE944126
|
[0001] |
O-ring
|
PROD NO 30804 HT 1553-
|
| |
VOE944126
|
[0001] |
O-ring
|
PROD NO 30818
|
| 33. |
VOE4871765
|
[0001] |
Gear selector valve
|
|
| |
|
|
None
|
|
| |
VOE4803325
|
[0001] |
Gear selector valve
|
|
| |
|
|
None
|
|
| 34. |
VOE11036121
|
[0001] |
Gasket
|
|
| 35. |
VOE13955307
|
[0004] |
Screw
|
|
| 36. |
VOE13941907
|
[0004] |
Washer
|
|
| 37. |
VOE4719713
|
[0001] |
Tube
|
|
| 4. |
VOE955299
|
[0002] |
Hexagon screw
|
|
| 38. |
VOE4719714
|
[0001] |
Tube
|
|
| 39. |
VOE13963959
|
[0004] |
Nipple
|
|
| 40. |
VOE4881250
|
[0004] |
Plane gasket
|
|
| 41. |
VOE4926982
|
[0001] |
Hose
|
|
| 42. |
VOE943475
|
[0002] |
Hose clamp
|
|
| 43. |
VOE4928216
|
[0001] |
Oil filler pipe
|
TILLV NR-2716
|
| |
VOE4927534
|
[0001] |
Tube
|
SER NO 2717-
|
| 44. |
VOE944041
|
[0001] |
Nipple
|
|
| 45. |
VOE13947630
|
[0001] |
Gasket
|
|
| 46. |
VOE4856456
|
[0001] |
Oil dipstick
|
|
| 47. |
VOE4927222
|
[0001] |
Oil filler pipe
|
|
