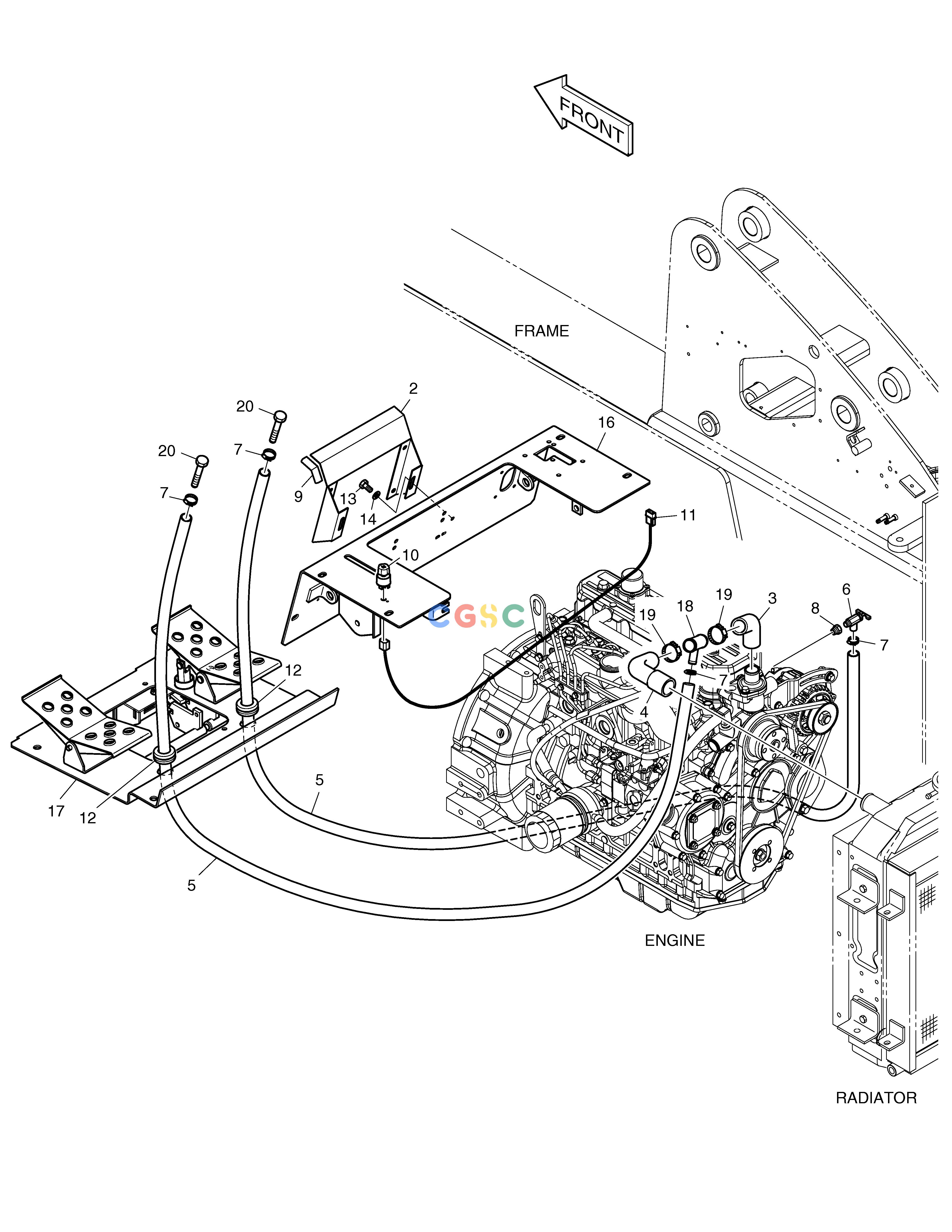

斗山零件查询HEATER PIPING - RUSSIA 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045519
|
[-] |
CAB HEATER
|
|
| 10. |
K1019697
|
[1] |
SWITCH
|
|
| 11. |
K1021018
|
[1] |
HARNESS;HEATER
|
|
| 12. |
S994012H
|
[2] |
GROMMET
|
|
| 13. |
S0508663
|
[2] |
BOLT
|
|
| 14. |
DS0401175
|
[2] |
WASHER;HARDENED
|
|
| 16. |
K1021864
|
[1] |
PLATE;UPPER
|
|
| 17. |
K1021033
|
[1] |
PEDAL ASS'Y
|
|
| 18. |
K1021441
|
[1] |
TEE
|
|
| 19. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 2. |
K1021026
|
[1] |
BRACKET
|
|
| 20. |
K1023105
|
[2] |
BOLT
|
|
| 3. |
K1021479
|
[1] |
HOSE;RADIATOR INLET
|
|
| 4. |
K1021480
|
[1] |
HOSE;RADIATOR INLET
|
|
| 5. |
K1023101
|
[480] |
HOSE;BULK
|
|
| 6. |
K1023100
|
[1] |
VALVE
|
|
| 7. |
S8450016
|
[4] |
. CLAMP
|
|
| 8. |
K1023096
|
[1] |
REDUCER
|
|
| 9. |
K1019747
|
[41] |
STRIP;BULK
|
|
