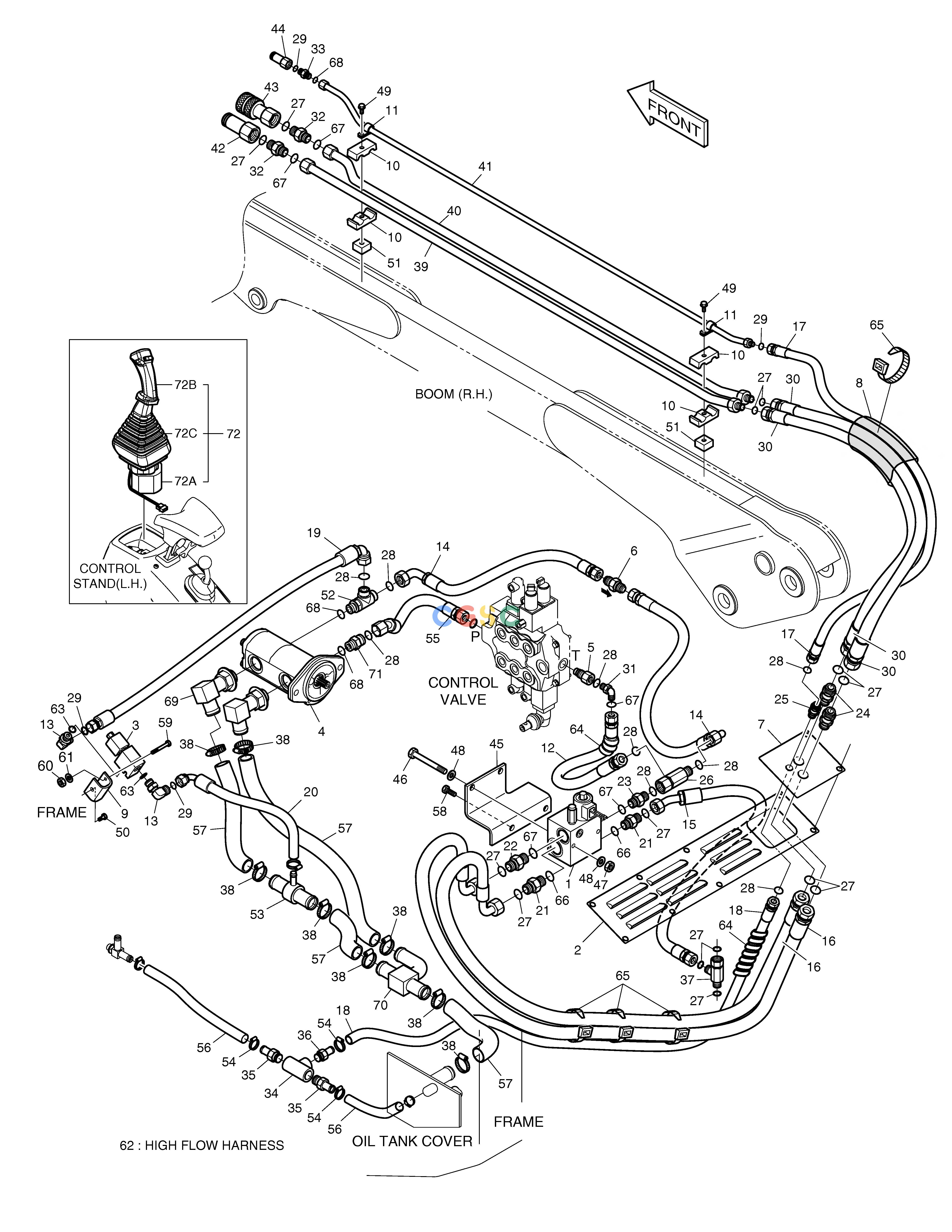

斗山零件查询HIGH FLOW PIPING-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023370
|
[-] |
HIGH FLOW-JOYSTICK
|
|
| 1. |
K1019925
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
K1019926
|
[2] |
CLAMP;TUBE
|
|
| 11. |
K1020101
|
[2] |
CLIP
|
|
| 12. |
DS2011332
|
[1] |
HOSE
|
|
| 13. |
K1023066
|
[2] |
ELBOW
|
|
| 14. |
DS2013819
|
[2] |
HOSE
|
|
| 15. |
DS2012049
|
[1] |
HOSE
|
|
| 16. |
DS2024007
|
[2] |
HOSE
|
|
| 17. |
K1020955
|
[1] |
HOSE
|
|
| 18. |
DS2019005
|
[1] |
HOSE
|
|
| 19. |
DS2021036
|
[1] |
HOSE
|
|
| 2. |
K1020934
|
[1] |
PLATE
|
|
| 20. |
DS2022032
|
[1] |
HOSE
|
|
| 21. |
K1020080
|
[2] |
ADAPTER
|
|
| 22. |
K1020081
|
[1] |
ADAPTER
|
|
| 23. |
K1020082
|
[1] |
ADAPTER
|
|
| 24. |
K1020217
|
[2] |
ADAPTER
|
|
| 25. |
K1020458
|
[1] |
ADAPTER
|
|
| 26. |
K1020083
|
[1] |
TEE
|
|
| 27. |
S8030121
|
[13] |
O-RING
|
|
| 28. |
S8030101
|
[9] |
O-RING
|
|
| 29. |
S8030081
|
[4] |
O-RING
|
|
| 3. |
K1019924
|
[1] |
VALVE;SOLENOID
|
|
| 30. |
K1020960
|
[2] |
HOSE
|
|
| 31. |
K1022470
|
[1] |
ELBOW
|
|
| 32. |
K1020462
|
[2] |
ADAPTER
|
|
| 33. |
K1020463
|
[1] |
ADAPTER
|
|
| 34. |
K1020084
|
[1] |
TEE
|
|
| 35. |
K1020103
|
[2] |
ADAPTER
|
|
| 36. |
K1020102
|
[1] |
ADAPTER
|
|
| 37. |
K1020085
|
[1] |
TEE
|
|
| 38. |
S8450035
|
[8] |
CLAMP;HOSE
|
|
| 39. |
K1020936
|
[1] |
TUBE
|
|
| 4. |
K1022803
|
[1] |
PUMP;GEAR
|
|
| 40. |
K1020937
|
[1] |
TUBE
|
|
| 41. |
K1020938
|
[1] |
TUBE
|
|
| 42. |
K1020074
|
[1] |
COUPLER
|
|
| 43. |
K1020075
|
[1] |
COUPLER
|
|
| 44. |
K1020073
|
[1] |
COUPLER
|
|
| 45. |
K1021478
|
[1] |
BRACKET
|
|
| 46. |
S0559763
|
[2] |
BOLT;HEX
|
|
| 47. |
S4016633
|
[2] |
NUT
|
|
| 48. |
K1023147
|
[4] |
WASHER;HARDENED
|
|
| 49. |
S0556663
|
[2] |
BOLT
|
|
| 5. |
K1020211
|
[1] |
SLEEVE
|
|
| 50. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 51. |
K1020209
|
[2] |
BLOCK
|
|
| 52. |
K1020076
|
[1] |
TEE
|
|
| 53. |
K1020787
|
[1] |
TEE
|
|
| 54. |
S8450023
|
[3] |
CLAMP
|
|
| 55. |
DS2012147
|
[1] |
HOSE
|
|
| 56. |
K1022543
|
[90] |
HOSE;BULK
|
|
| 57. |
K1023094
|
[208] |
HOSE;BULK
|
|
| 58. |
S0512363
|
[2] |
BOLT
|
|
| 59. |
S0553663
|
[2] |
BOLT
|
|
| 6. |
K1019934
|
[1] |
VALVE;CHECK
|
|
| 60. |
S4012343
|
[2] |
NUT
|
|
| 61. |
K1023148
|
[2] |
WASHER;HARDENED
|
|
| 62. |
K1022242
|
[1] |
HARNESS;HIGH FLOW
|
|
| 63. |
S8040081
|
[2] |
O-RING
|
|
| 64. |
K1022550
|
[178] |
PROTECTOR;HOSE
|
|
| 65. |
K1022971
|
[6] |
CLIP;BAND
|
|
| 66. |
S8040161
|
[2] |
O-RING
|
|
| 67. |
S8040121
|
[5] |
O-RING
|
|
| 68. |
S8040101
|
[3] |
O-RING
|
|
| 69. |
K1023071
|
[1] |
ELBOW
|
|
| 7. |
K1020935
|
[1] |
PLATE
|
|
| 70. |
DS2461003
|
[1] |
TEE
|
|
| 71. |
K1023078
|
[1] |
ADAPTER
|
|
| 72. |
K1022807
|
[1] |
VALVE;JOYSTICK
|
K1022807A
|
| 72. |
K1022807A
|
[1] |
VALVE;JOYSTICK
|
|
| 72A. |
K1024067A
|
[1] |
HST BODY
|
|
| 72B. |
K1024065
|
[1] |
HANDLE
|
|
| 72C. |
K1024072
|
[1] |
BOOT
|
|
| 8. |
K1020961
|
[1] |
PROTECTOR;HOSE
|
|
| 9. |
K1019923
|
[1] |
BRACKET
|
|
