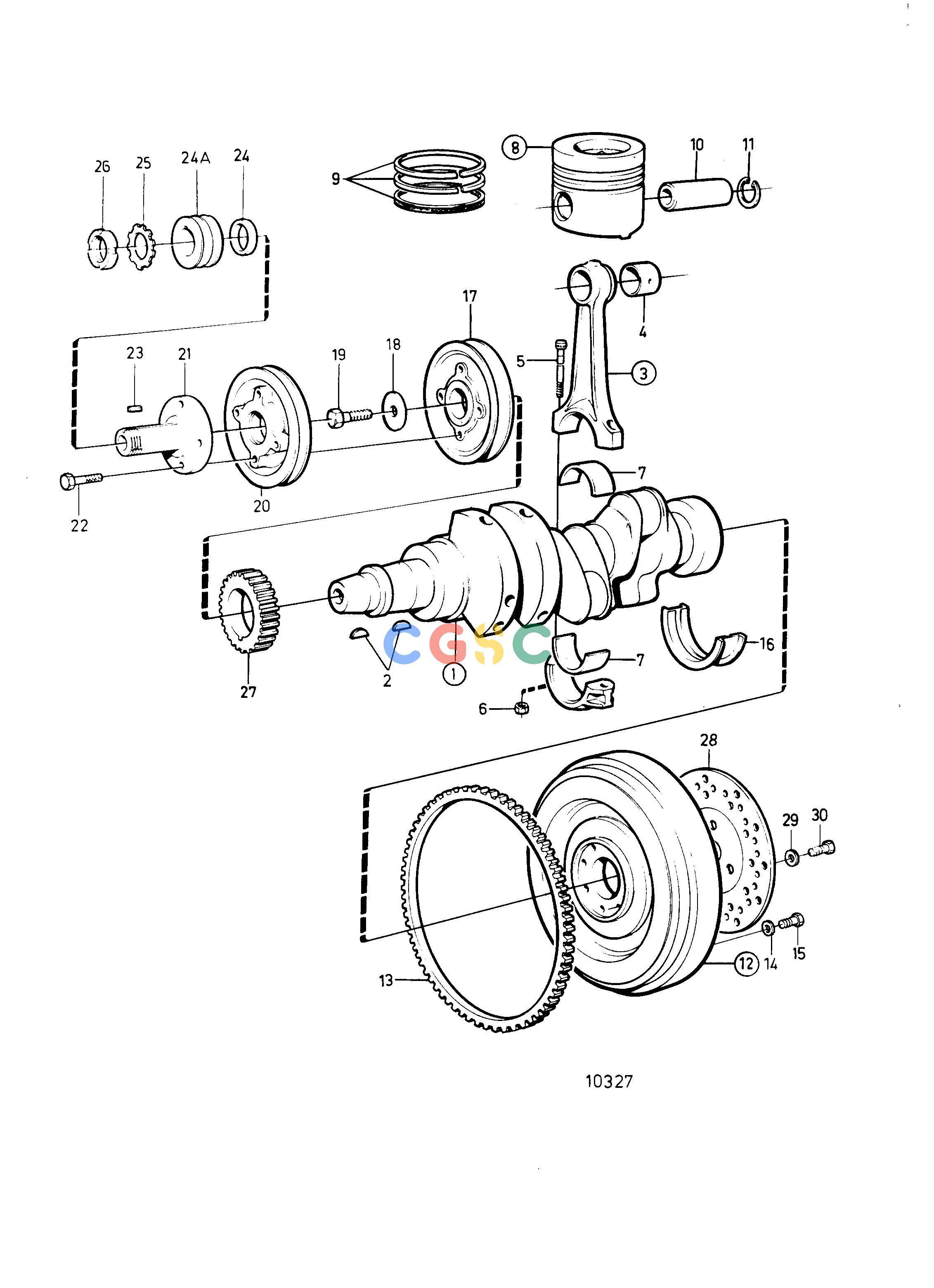

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineCrankshaft and Related Parts PRM -Connection: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876252
|
[1] |
Crankshaft
|
|
| 2. |
910118
|
[2] |
Woodruff key
|
|
| 3. |
840706
|
[3] |
Connecting rod
|
Productno.868295, Repl by 860073
|
| 3. |
860073
|
[3] |
Connecting rod
|
Productno.868306
|
| 4. |
840703
|
[3] |
Bushing
|
|
| 5. |
840704
|
[6] |
Screw
|
|
| 6. |
840705
|
[6] |
Nut
|
|
| 7. |
875747
|
[3] |
Big-end bearing kit
|
Std D
|
| 7. |
875748
|
[3] |
Big-end bearing kit
|
0,25mm u.s
|
| 7. |
875749
|
[3] |
Big-end bearing kit
|
0,50mm u.s
|
| 8. |
876111
|
[3] |
Piston kit
|
Std D
|
| 8. |
876112
|
[3] |
Piston kit
|
0,25mm o.s
|
| 8. |
876113
|
[3] |
Piston kit
|
0,50mm o.s
|
| 9. |
876114
|
[3] |
Piston ring kit
|
Std D
|
| 9. |
876115
|
[3] |
Piston ring kit
|
0,25mm o.s
|
| 9. |
876116
|
[3] |
Piston ring kit
|
0,50mm o.s
|
| 10. |
840422
|
[3] |
Gudgeon pin
|
|
| 11. |
951086
|
[6] |
Snap ring
|
|
| 12. |
858417
|
[1] |
Flywheel
|
|
| 13. |
829462
|
[1] |
Ring gear
|
|
| 14. |
941908
|
[8] |
Spring washer
|
|
| 15. |
970878
|
[8] |
Hexagon screw, flywheel
|
|
| 16. |
875751
|
[1] |
Main bearing kit
|
Std D
|
| 16. |
875753
|
[1] |
Main bearing kit
|
0,25mm u.s
|
| 16. |
875755
|
[1] |
Main bearing kit
|
0,50mm u.s
|
| 17. |
840668
|
[1] |
Pulley
|
|
| 18. |
190763
|
[1] |
Washer
|
|
| 19. |
970948
|
[1] |
Hexagon screw
|
|
| 20. |
840794
|
[1] |
Pulley
|
|
| 21. |
858378
|
[1] |
Flange
|
|
| 22. |
963223
|
[4] |
Hexagon screw
|
|
| 23. |
906707
|
[1] |
Flat key
|
|
| 24. |
860038
|
[1] |
Spacer sleeve
|
|
| 24A. |
860037
|
[1] |
Pulley
|
|
| 25. |
907026
|
[1] |
Lock washer
|
|
| 26. |
906636
|
[1] |
Round nut
|
|
| 27. |
840350
|
[1] |
Gear
|
|
| 28. |
858778
|
[1] |
Absorber
|
|
| 29. |
941907
|
[8] |
Spring washer
|
|
| 30. |
955294
|
[8] |
Hexagon screw, damper
|
|
