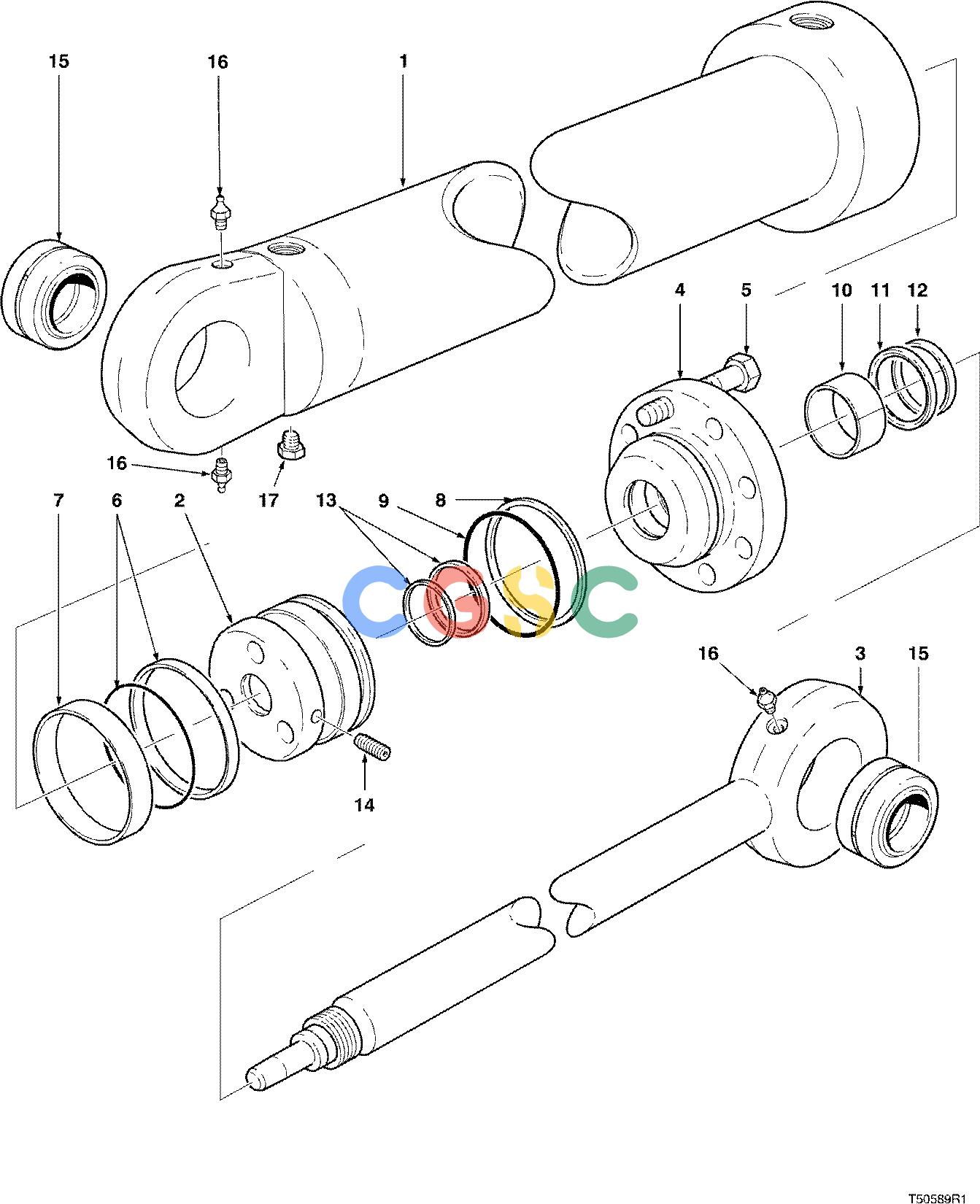

约翰迪尔零件查询18``STT - ATTACHMENTS CYLINDER CLAMP 18`` HEAD ( 601091 - ) 2876-014/12 [2876-014/12]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
701325200
|
[1] |
CYLINDER - 4``
|
|
| 1. |
701325300
|
[1] |
TUBE -
|
|
| 2. |
701325600
|
[1] |
PISTON -
|
|
| 3. |
701343600
|
[1] |
ROD -
|
|
| 4. |
701325900
|
[1] |
GLAND -
|
|
| 5. |
810082500
|
[8] |
BOLT 1/2-13UNCX2 -
|
|
| 6. |
-------
|
[1] |
Seal
|
|
| 7. |
-------
|
[1] |
RING - WEAR
|
|
| 8. |
-------
|
[1] |
RING - BACK-UP
|
|
| 9. |
-------
|
[1] |
O-Ring
|
|
| 10. |
-------
|
[1] |
RING - WEAR
|
|
| 11. |
-------
|
[1] |
Seal
|
|
| 12. |
-------
|
[1] |
WIPER
|
|
| 13. |
-------
|
[1] |
Seal
|
|
| 14. |
811880200
|
[1] |
SET SCREW -
|
|
| 15. |
810106700
|
[2] |
BUSHING -
|
|
| 16. |
810000100
|
[3] |
GREASE FITTING.N610 -
|
|
| 17. |
810112600
|
[1] |
PLUG -
|
|
| |
700797300
|
[1] |
SEAL KIT -
|
|
