斗山零件查询INSTRUMENT ASS'Y-ITALY 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

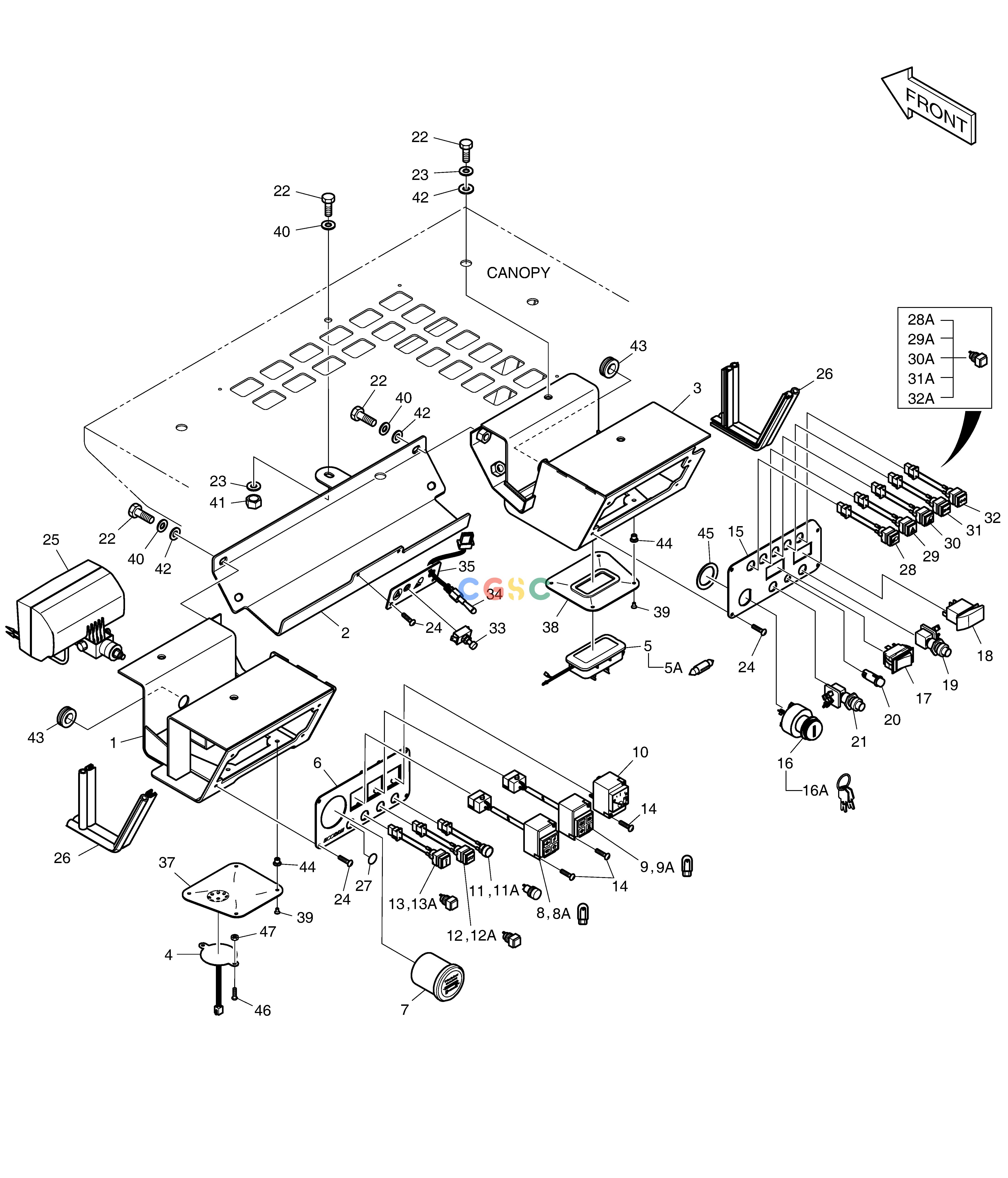

300605-00022
|
[-] |
|
|
| 1. |
K1021181
|
[1] |
COVER(L.H)
|
|
| 10. |
K1023040
|
[1] |
GAUGE;FUEL
|
|
| 11. |
K1020783
|
[1] |
LAMP;PILOT(PARKING)
|
|
| 11A. |
K1022897
|
[1] |
LAMP;PILOT(PARKING)
|
|
| 12. |
K1022999
|
[1] |
LAMP;PILOT(STOP)
|
|
| 12A. |
K1022899
|
[1] |
LAMP;PILOT(STOP)
|
|
| 13. |
K1023000
|
[1] |
LAMP;PILOT
|
|
| 13A. |
K1022900
|
[1] |
LAMP;PILOT
|
|
| 14. |
S3450403
|
[6] |
SCREW
|
|
| 15. |
K1021168
|
[1] |
PANEL
|
|
| 16. |
K1019659
|
[1] |
SWITCH;STARTER
|
|
| 16A. |
K1019104
|
[1] |
KEY;STARTER
|
|
| 17. |
K1019074
|
[1] |
SWITCH
|
|
| 18. |
K1020089
|
[1] |
SWITCH;ROCKER
|
|
| 19. |
K1020091
|
[1] |
SWITCH
|
|
| 2. |
K1021212
|
[1] |
COVER
|
|
| 20. |
K1020092
|
[1] |
INDICATOR;LAMP
|
|
| 21. |
K1020090
|
[1] |
SWITCH
|
|
| 22. |
S0508863
|
[9] |
BOLT;M8X20
|
|
| 23. |
K1023149
|
[5] |
WASHER;HARDENED
|
|
| 24. |
S3450583
|
[10] |
SCREW
|
|
| 25. |
K1020956
|
[2] |
LAMP;HEAD
|
|
| 26. |
K1019087
|
[66] |
STRIP;BULK
|
|
| 27. |
K1029438
|
[1] |
FILM
|
|
| 28. |
K1020778
|
[1] |
LAMP;PILOT(LOW BEAM)
|
|
| 28A. |
K1022901
|
[1] |
LAMP;PILOT
|
|
| 29. |
K1020779
|
[1] |
LAMP;PILOT(HIGH BEAM)
|
|
| 29A. |
K1022902
|
[1] |
LAMP;PILOT
|
|
| 3. |
K1021182
|
[1] |
COVER(R.H)
|
|
| 30. |
K1020780
|
[1] |
LAMP;PILOT(POSITION)
|
|
| 30A. |
K1022901
|
[1] |
LAMP;PILOT
|
|
| 31. |
K1020781
|
[1] |
LAMP;PILOT(EMERGENCY)
|
|
| 31A. |
K1022899
|
[1] |
LAMP;PILOT(STOP)
|
|
| 32. |
K1020782
|
[1] |
LAMP;PILOT(DIRECTION)
|
|
| 32A. |
K1022901
|
[1] |
LAMP;PILOT
|
|
| 33. |
K1019053
|
[1] |
SWITCH;HAZARD
|
|
| 34. |
K1019067
|
[1] |
SWITCH;TOGGLE
|
|
| 35. |
K1020777
|
[1] |
PLATE
|
|
| 37. |
K1020647
|
[1] |
COVER(L.H)
|
|
| 38. |
K1020648
|
[1] |
COVER(R.H)
|
|
| 39. |
S3452853
|
[8] |
SCREW
|
|
| 4. |
K1022920
|
[1] |
BUZZER;PILOT
|
|
| 40. |
K1023146
|
[5] |
WASHER;HARDENED
|
|
| 41. |
S4016543
|
[1] |
NUT
|
|
| 42. |
S5102503
|
[8] |
. WASHER
|
|
| 43. |
S994010H
|
[2] |
GROMMET
|
|
| 44. |
K1023034
|
[8] |
WASHER
|
|
| 45. |
K1029120
|
[1] |
SHIM
|
|
| 46. |
S3450353
|
[2] |
SCREW M3X0.5X12
|
|
| 47. |
S4012003
|
[2] |
NUT
|
|
| 5. |
K1023001
|
[1] |
LAMP;ROOM
|
|
| 5A. |
2515-1021D6
|
[1] |
BULB
|
|
| 6. |
K1020568
|
[1] |
PANEL
|
|
| 7. |
K1019658
|
[1] |
METER;HOUR
|
|
| 8. |
K1019110
|
[1] |
LAMP;WARNING
|
|
| 8A. |
K1019111
|
[4] |
BULB
|
|
| 9. |
K1022998
|
[1] |
LAMP;WARNING
|
|
| 9A. |
K1019111
|
[4] |
BULB
|
|
