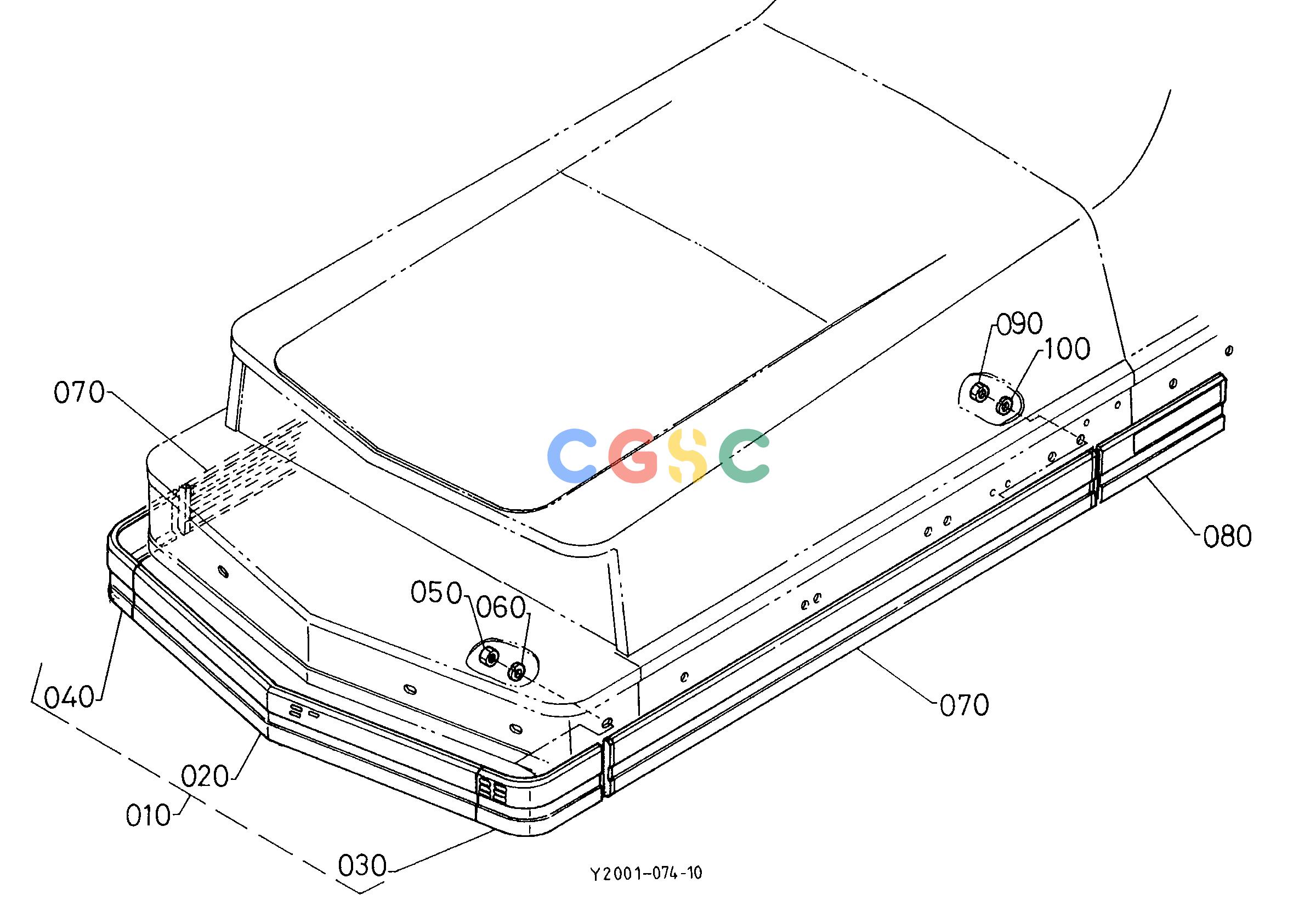

久保田零件查询T10800 LACE HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6715647500
|
[1] |
ASSY LACE FRONT
|
0.2200(lbs); 0.100
|
| 020. |
6715647510
|
[1] |
LACE FRONT
|
0.2728(lbs); 0.124
|
| 030. |
6715647520
|
[1] |
LACE FRONT LH
|
0.1914(lbs); 0.087
|
| 040. |
6715647530
|
[1] |
LACE FRONT RH
|
0.1936(lbs); 0.088
|
| 050. |
0201450060
|
[6] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451260600
|
[6] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 070. |
6641647550
|
[2] |
LACE SIDE FRONT
|
0.4048(lbs); 0.184
|
| 080. |
6641647570
|
[2] |
LACE SIDE REAR
|
0.1100(lbs); 0.050
|
| 090. |
0201450060
|
[12] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
0451260060
|
[12] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
