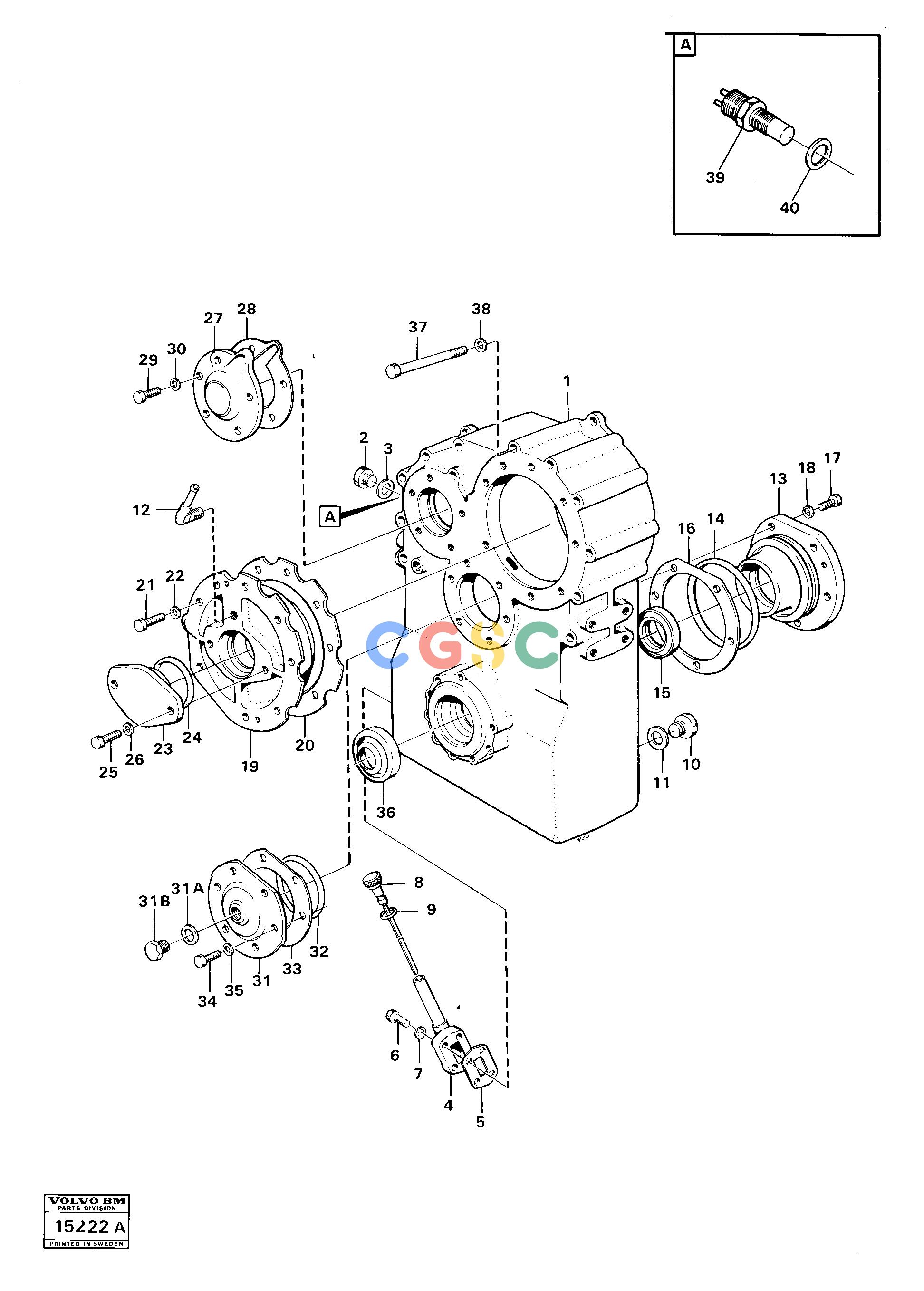

沃尔沃零件查询4300 Dropbox housing and cover4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE11036089
|
[0001] |
Gasket
|
|
| 38. |
VOE940280
|
[0011] |
Spring washer
|
|
| 39. |
VOE4880804
|
[0001] |
Induction sensor
|
|
| |
|
|
None
|
|
| 40. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| |
|
|
None
|
|
| 6. |
VOE13955272
|
[0004] |
Screw
|
|
| 7. |
VOE13941906
|
[0004] |
Washer
|
|
| 8. |
VOE4719269
|
[0001] |
Oil dipstick
|
|
| 9. |
VOE925053
|
[0001] |
O-ring
|
|
| 1. |
VOE4871685
|
[0001] |
Housing
|
|
| 10. |
VOE914394
|
[0001] |
Plug
|
|
| 11. |
VOE13947629
|
[0001] |
Plane gasket
|
|
| 12. |
VOE479953
|
[0001] |
Nipple
|
|
| 13. |
VOE4718660
|
[0001] |
Bearing housing
|
|
| 14. |
VOE925274
|
[0001] |
O-ring
|
|
| 15. |
VOE17216281
|
[0001] |
Sealing ring
|
|
| 16. |
VOE11036532
|
[REQ] |
Shim
|
|
| |
VOE11036533
|
[REQ] |
Shim
|
|
| |
VOE11036534
|
[REQ] |
Shim
|
|
| 17. |
VOE13970948
|
[0007] |
Hexagon screw
|
|
| 2. |
VOE13960632
|
[0001] |
Plug
|
|
| 18. |
VOE941908
|
[0007] |
Spring washer
|
|
| 19. |
VOE4719774
|
[0001] |
Bearing housing
|
|
| 20. |
VOE4719023
|
[0001] |
Gasket
|
PROD NO 30804 HT-1176
|
| |
VOE11036040
|
[0001] |
Gasket
|
PROD NO 30804 HT 1177-
|
| |
VOE11036040
|
[0001] |
Gasket
|
PROD NO 30818
|
| 21. |
VOE955297
|
[0008] |
Hexagon screw
|
|
| 22. |
VOE13941907
|
[0008] |
Washer
|
|
| 23. |
VOE4719019
|
[0001] |
Cap
|
PROD NO 30804 HT -1176
|
| |
VOE4719776
|
[0001] |
Cover
|
PROD NO 30804 HT 1177-
|
| |
VOE4719776
|
[0001] |
Cover
|
PROD NO 30818
|
| 24. |
VOE11036039
|
[0001] |
Gasket
|
PROD NO 30804 HT -1176
|
| 3. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| |
VOE977025
|
[0001] |
O-ring
|
PROD NO 30804 HT 1177-
|
| |
VOE977025
|
[0001] |
O-ring
|
PROD NO 30818
|
| 25. |
VOE955297
|
[0005] |
Hexagon screw
|
PROD NO 30804 HT -1176
|
| |
VOE997446
|
[0002] |
Hexagon screw
|
PROD NO 30804 HT 1177-
|
| |
VOE997446
|
[0002] |
Hexagon screw
|
PROD NO 30818
|
| 26. |
VOE13941907
|
[0005] |
Washer
|
PROD NO 30804 HT -1176
|
| |
VOE940280
|
[0002] |
Spring washer
|
PROD NO 30804 HT 1177-
|
| |
VOE940280
|
[0002] |
Spring washer
|
PROD NO 30818
|
| 27. |
VOE4719019
|
[0001] |
Cap
|
|
| 28. |
VOE11036039
|
[0001] |
Gasket
|
|
| 29. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 30. |
VOE13941907
|
[0002] |
Washer
|
|
| 31. |
VOE4719969
|
[0001] |
Bearing housing
|
|
| 4. |
VOE4719272
|
[0001] |
Oil pipe
|
|
| 31A. |
VOE957185
|
[0001] |
Gasket
|
|
| 31B. |
VOE13960634
|
[0001] |
Plug
|
|
| 32. |
VOE925261
|
[0001] |
O-ring
|
|
| 33. |
VOE11036623
|
[REQ] |
Shim
|
|
| |
VOE11036624
|
[REQ] |
Shim
|
|
| |
VOE11036625
|
[REQ] |
Shim
|
|
| 34. |
VOE955297
|
[0006] |
Hexagon screw
|
|
| 35. |
VOE13941907
|
[0006] |
Washer
|
|
| 36. |
VOE946574
|
[0001] |
Sealing ring
|
|
| 37. |
VOE997957
|
[0011] |
Hexagon screw
|
|
