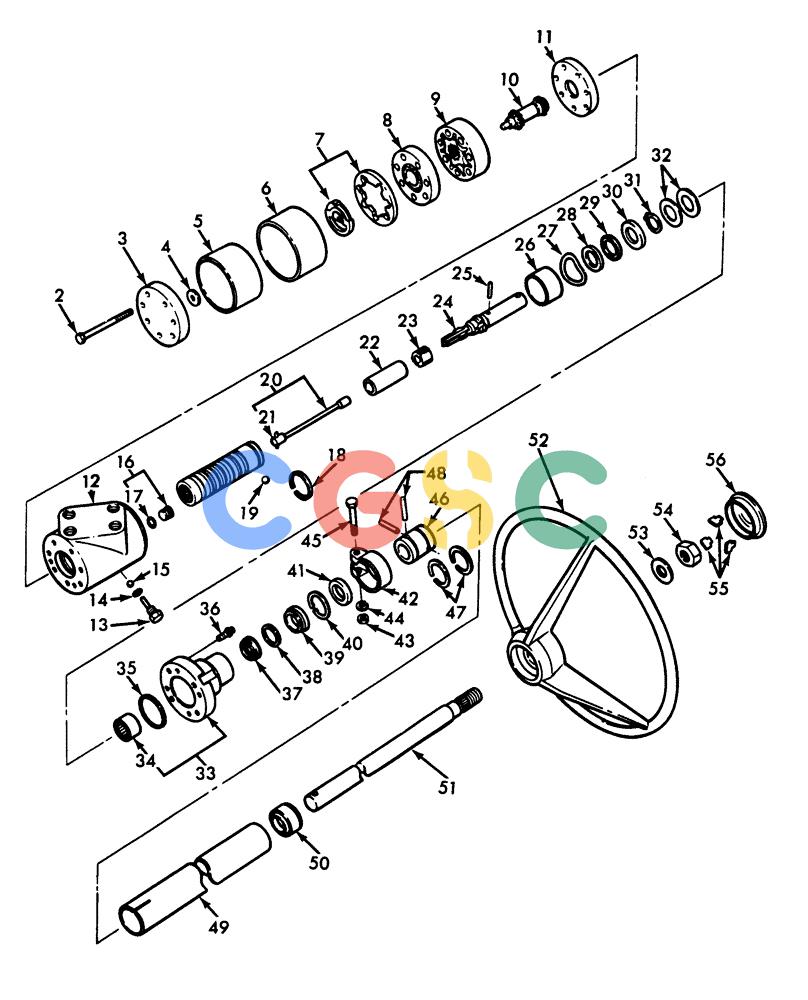

| . . | D6NN3A244C | [1] | SMALL ELECTRIC MOTOR | BASMotor Assy. Includes: Ref. 2 thru 32, Start Year: 01-JAN-85 Superseded by part number: E3NN3A244BA |
| 2. | 86598492 | [7] | BOLT,Hex, 5/16" - 18 x 2.75", Spcl | WINScrew, Cap, HH, Special, G2, 5/16"-18 x 2-3/4", Start Year: 01-JAN-85 Superseded by part number: 87626 |
| 3. | D6NN3597A | [1] | COVER | BASAssy., Start Year: 01-JAN-85 Superseded by part number: E3NN3597AA |
| 4. | D1NN3R693A | [1] | WASHER | BAS, Start Year: 01-JAN-85 Superseded by part number: E3NN3R693AA |
| 5. | D6NN3R513B | [1] | SEAL | FOR, Start Year: 01-JAN-85 Superseded by part number: E3NN3R513BA |
| 6. | D5NN3D708B | [1] | RETAINER | BAS, Start Year: 01-JAN-85 Superseded by part number: E3NN3D708AA, E3NN3D708AA, E3NN3D708BA |
| 7. | 279174 | [1] | COMMUTATOR | FOR& Ring Assy., Motor Oil, Start Year: 01-JAN-85 |
| 8. | D1NN3N684A | [1] | MANIFOLD | BAS, Start Year: 01-JAN-85 Superseded by part number: E3NN3N684AA |
| 9. | D6NN3R508A | [1] | ROTOR | BAS& Stator Assy., Start Year: 01-JAN-85 Superseded by part number: E3NN3R508AA, E3NN3R508AA, E3NN3R508BA |
| 10. | D1NN3N571A | [1] | TIE-ROD | BASLink, Start Year: 01-JAN-85 Superseded by part number: E3NN3N571AA |
| 11. | D1NN3R691A | [1] | PLUG | BASSpacer, Start Year: 01-JAN-85 Superseded by part number: E3NN3R691BA |
| 12. | NS | [1] | NOT SERVICED | BASHousing Assy., Start Year: 01-JAN-85 |
| 13. | D1NN3R694A | [1] | PLUG | BASAssy., Start Year: 01-JAN-85 |
| 15. | 86628554 | [1] | BALL,6.53mm OD, Gr 25 | NHSteel, 1/4" Dia., Start Year: 01-JAN-85 |
| 16. | D1NN3R684A | [1] | PLUG | WIN& Seal Assy. Includes: Ref. 17, Start Year: 01-JAN-85 Superseded by part number: 279160 |
| 17. | 272429 | [1] | O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro | WIN90 Duro, .208" ID x .070" Thk, Start Year: 01-JAN-85 |
| . . | PL | [3] | PROCURE LOCALLY | BASSpring, Start Year: 01-JAN-85 |
| 19. | 72387 | [1] | BALL,5/16" Dia | GISteel 5/16" Dia, Start Year: 01-JAN-85 Superseded by part number: 86642304 |
| 20. | D2NN3R686A | [1] | BAR | FORAssy. Includes: Ref. 21, Start Year: 01-JAN-85 Superseded by part number: E3NN3R686AA, E3NN3R686AA, E3NN3R686BA |
| 21. | D1NN3R500A | [1] | PIN | BASBar & Inner Shaft, Start Year: 01-JAN-85 Superseded by part number: E3NN3R500AA |
| 22. | D5NN3A572B | [1] | SPACER | BAS, Start Year: 01-JAN-85 Superseded by part number: E3NN3A572AA |
| 23. | D8NN3R687AA | [1] | RING | FOR, Start Year: 01-JAN-85 Superseded by part number: E3NN3R687AA |
| 24. | D1NN3B668A | [1] | SHAFT | BAS, Start Year: 01-JAN-85 Superseded by part number: E3NN3B668AA |
| 26. | D2NN3A572A | [1] | SPACER | FOR, Start Year: 01-JAN-85 Superseded by part number: 279242 |
| 27. | D2NN3R719A | [1] | WASHER | FOR, Start Year: 01-JAN-85 Superseded by part number: E3NN3R719AA |
| 28. | D2NN3E575A | [1] | WASHER | FOR, Start Year: 01-JAN-85 Superseded by part number: E3NN3E575BA |
| 29. | D2NN3K771A | [1] | THRUST BEARING,0.883" ID x 1.427" OD x 0.078" | FORBearing, Start Year: 01-JAN-85 Superseded by part number: E3NN3K771AA |
| 30. | D1NN3E575A | [1] | BEARING WASHER,0.928" ID x 1.735" OD x 0.126" | BASWasher, Start Year: 01-JAN-85 Superseded by part number: E3NN3E575AA |
| 31. | D2NN3757A | [1] | RING | FORSnap, Start Year: 01-JAN-85 Superseded by part number: E3NN3757AA |
| 32. | 81827076 | [1] | SHIM | A.010 Thick, Start Year: 01-JAN-85 Superseded by part number: 83946550 |
| 32. | D1NN3C614B | [1] | SHIM | BAS.005 Thick, Start Year: 01-JAN-85 Superseded by part number: E3NN3N992AA |
| 32. | 86585543 | [1] | SHIM KIT | WINKit, Shim, Thickness Included: 1- .030, 1- .0025, 4- .005, 4- .010, Total Ten Pieces, Start Year: 01-JAN-85 |
| 32. | D2NN3C614B | [1] | SHIM | FOR.030 Thick, Start Year: 01-JAN-85 Superseded by part number: E3NN3N992AA |
| 33. | D6NN3N771A | [1] | COVER | BASAssy., Start Year: 01-JAN-85 Superseded by part number: E3NN3N771AA |
| 35. | D1NN3747A | [1] | SEAL PROTECTION | BASSeal, Start Year: 01-JAN-85 Superseded by part number: E3NN3747AA |
| 36. | D1NN3E616A | [4] | SCREW,5/16" - 18 x 3/4" | BASUpper, Start Year: 01-JAN-85 Superseded by part number: E3NN3E616AA |
| 37. | D2NN3564A | [1] | SEAL | BASPacking, Start Year: 01-JAN-85 Superseded by part number: 517416 |
| 39. | V19044 | [1] | SEAL,22.25mm ID x 31.88mm OD x 7.39mm Thk | WINRing, Start Year: 01-JAN-85 |
| 40. | 214542 | [1] | SNAP RING,1.25, Int, #125 | WINRing, Snap, 1.25", Int, #125, Start Year: 01-JAN-85 |
| 41. | D5NN3C758A | [1] | SEAL | BASSeal, Start Year: 01-JAN-85 Superseded by part number: E3NN3C758AA |
| 42. | D2NN3B612A | [1] | CLAMP | BASAssy. Includes: Ref. 43 thru 45, Start Year: 01-JAN-85 Superseded by part number: 279506 |
| 43. | 86629539 | [1] | NUT,5/16"-24, G5 | WING5, 5/16"-24, Start Year: 01-JAN-85 |
| 44. | 34906S2 | [1] | WASHER | BASLock, Int T, 5/16", Start Year: 01-JAN-85 |
| 45. | 304829S36 | [1] | BOLT,Hex, 5/16"-24 x 2", G5 | FORScrew, Cap, HH, G5, 5/16"-24 x 2", Start Year: 01-JAN-85 Superseded by part number: 60451 |
| 46. | D5NN3A583A | [1] | Coupling Assy., Start Year: 01-JAN-85 | |
| 47. | D1NN3R528A | [2] | SPRING | BASRing, Start Year: 01-JAN-85 Superseded by part number: V65031 |
| 48. | D1NN3R500B | [2] | ROLL PIN | BASPin, Start Year: 01-JAN-85 Superseded by part number: 279505 |
| 49. | D2NN3C695D | [1] | SHROUD | BASAssy., Start Year: 01-JAN-85 |
| 50. | D2NN3D650A | [1] | COLLAR | FORBearing & Retainer, Start Year: 01-JAN-85 |
| 51. | D2NN3A620B | [1] | HYD. TUBE | BASTube, Start Year: 01-JAN-85 |
| 52. | D7NN3600A | [1] | STEERING WHEEL | BASWheel Assy., Start Year: 01-JAN-85 Superseded by part number: 83914160 |
| 54. | C5NN3N602A | [1] | NUT | FOR, Start Year: 01-JAN-85 Superseded by part number: D5NN3N602A |
| 55. | C5NN3N649A | [3] | CLIP | FOR, Start Year: 01-JAN-85 |
| 56. | 82002600 | [1] | CAP | BAS, Start Year: 01-JAN-85 |
| . . | 86585473 | [1] | SEAL KIT | WINKit, Start Year: 01-JAN-85 |
