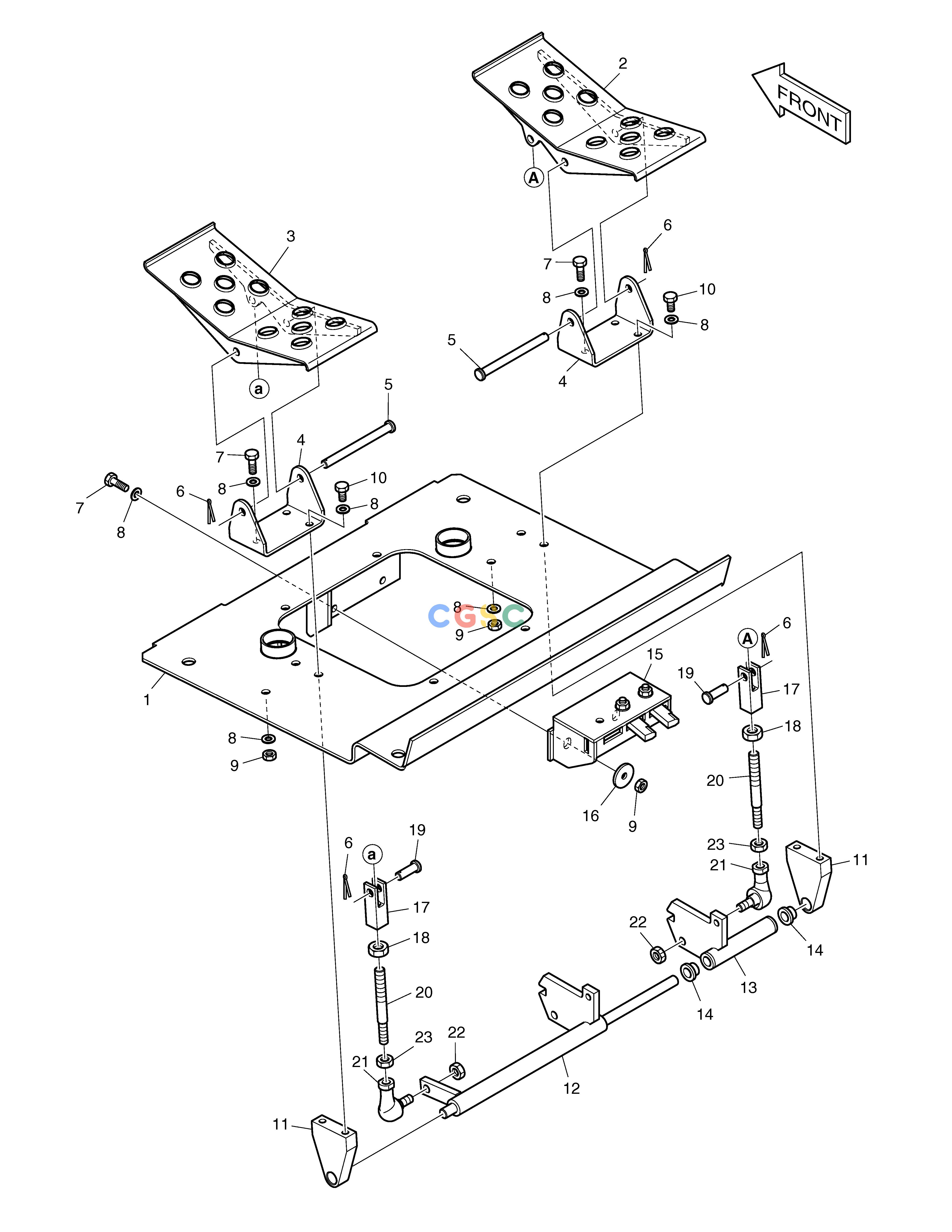

斗山零件查询PEDAL ASS'Y-FOR DECKER 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021248
|
[1] |
PEDAL ASS'Y
|
|
| 1. |
K1021255
|
[1] |
PLATE;FLOOR
|
|
| 10. |
S0508663
|
[4] |
BOLT
|
|
| 11. |
K1020349
|
[2] |
BLOCK
|
|
| 12. |
K1020348
|
[1] |
LINK
|
|
| 13. |
K1020341
|
[1] |
LINK
|
|
| 14. |
K1019663
|
[2] |
BUSHING
|
|
| 15. |
K1019982
|
[1] |
LOCK;PEDAL
|
|
| 16. |
K1023144
|
[2] |
WASHER
|
|
| 17. |
K1019832
|
[2] |
YOKE
|
|
| 18. |
S4016733
|
[2] |
NUT
|
|
| 19. |
S5760301
|
[2] |
PIN
|
|
| 2. |
K1020347
|
[1] |
PEDAL(R.H)
|
|
| 20. |
K1020346
|
[2] |
ROD
|
|
| 21. |
2138-9008
|
[2] |
JOINT;BALL
|
|
| 22. |
K1019800
|
[2] |
NUT;LOCK
|
|
| 23. |
K1023123
|
[2] |
NUT
|
|
| 3. |
K1020343
|
[1] |
PEDAL(L.H)
|
|
| 4. |
K1020345
|
[2] |
BRACKET
|
|
| 5. |
K1020344
|
[2] |
PIN
|
|
| 6. |
S180333H
|
[4] |
PIN
|
|
| 7. |
S0509063
|
[4] |
BOLT M8X1.25X25
|
|
| 8. |
K1023146
|
[12] |
WASHER;HARDENED
|
|
| 9. |
S4016543
|
[4] |
NUT
|
|
