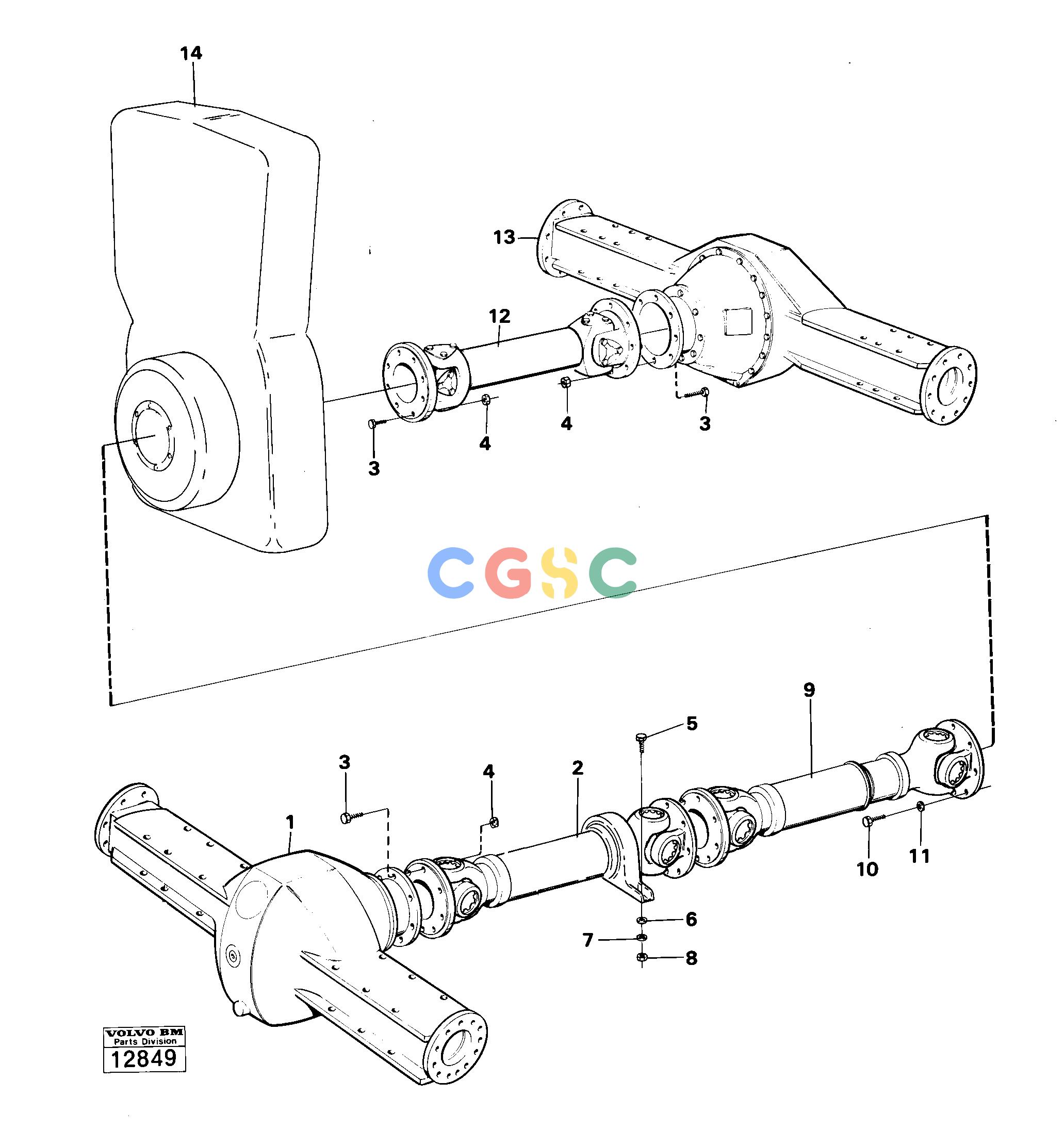

沃尔沃零件查询4300 Propeller shafts with fitting parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4929799
|
|
Countershaft
|
SER NO 4147 -
|
| |
|
|
None
|
|
| 3. |
VOE942803
|
[32] |
Hexagon screw
|
|
| 4. |
VOE945676
|
[32] |
Lock nut
|
|
| 5. |
VOE970977
|
[2] |
Hexagon screw
|
|
| |
VOE13970973
|
|
Hexagon screw
|
|
| 1. |
|
[1] |
Front shaft
|
|
| 6. |
VOE955899
|
[2] |
Plain washer
|
|
| |
VOE13960145
|
|
Washer
|
|
| 7. |
VOE941911
|
[2] |
Spring washer
|
|
| |
VOE940280
|
|
Spring washer
|
|
| 8. |
VOE13971073
|
[2] |
Hexagon nut
|
|
| |
VOE981315
|
|
Lock nut
|
|
| 9. |
VOE4787194
|
[1] |
Propeller shaft
|
|
| |
|
|
None
|
|
| |
VOE4929800
|
|
Propeller shaft
|
|
| 10. |
VOE13945636
|
[8] |
Screw
|
|
| 11. |
VOE13942336
|
[8] |
Spring washer
|
|
| 2. |
VOE4787193
|
[1] |
Propeller shaft
|
|
| 12. |
VOE4787195
|
[1] |
Propeller shaft
|
|
| |
VOE4929801
|
|
Propeller shaft
|
|
| 13. |
|
[1] |
Rear shaft
|
|
| 14. |
|
[1] |
Drop box
|
|
| |
VOE4932143
|
|
Propeller shaft
|
SER NO - 4146
|
| |
|
|
None
|
|
