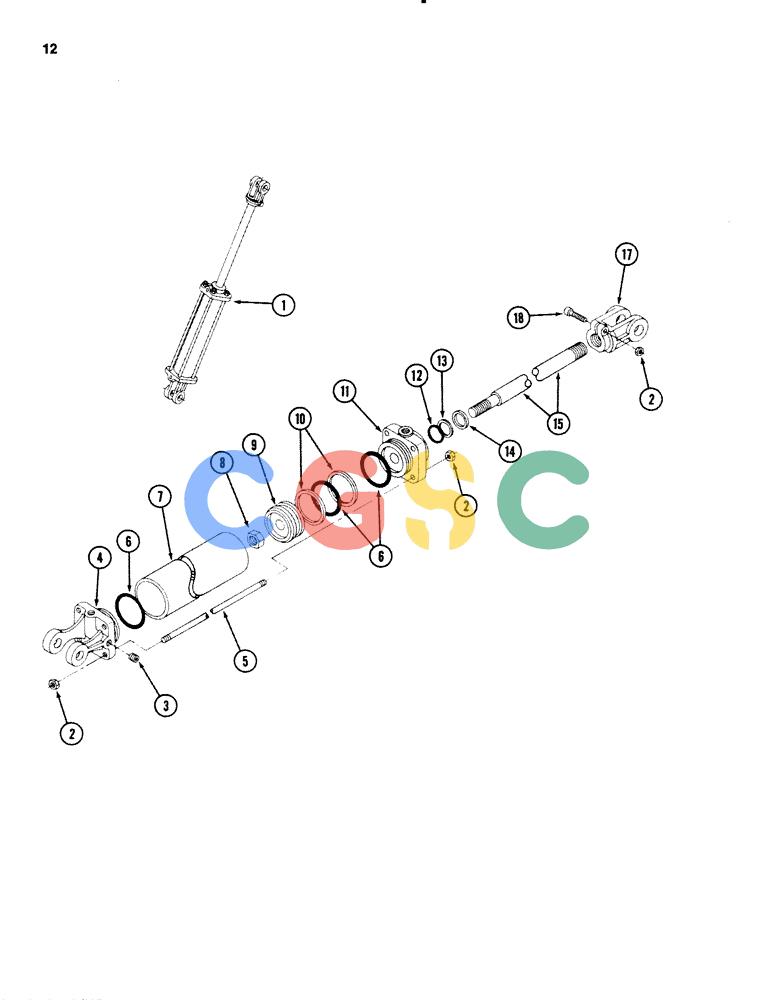

凯斯零件查询(3650) - CASE IH ROUND TIE BALER (1/84-12/88) (12) - HYDRAULIC LATCH CYLINDER, 2 INCH BORE (50 MM) X 16 INCH STROKE (406 MM) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA105500
|
[1] |
CYLINDER ASSEMBLY - hydraulic
|
|
| 2. |
120377
|
[8] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 3. |
444660
|
[1] |
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
|
IH
PLUG - square head automotive pipe, 3/8 inch
|
| 4. |
ZA207021
|
[1] |
BASE
|
CAS
- cylinder Superseded by part number: 737734
|
| 5. |
ZA105147
|
[4] |
ROD
|
IH
- tie Superseded by part number: 700709952
|
| 6. |
NSS
|
[3] |
NOT SOLD SEPARAT
|
CON
O-RING
|
| 8. |
9413971
|
[1] |
LOCK NUT,3/4"-10, GB
|
IH
NUT - hex lock, 3/4 inch NC Superseded by part number: 280375
|
| 9. |
851022C1
|
[1] |
PISTON
|
IH
Superseded by part number: B17272
|
| 11. |
ZA207015
|
[1] |
HEAD
|
CAS
Superseded by part number: 737684
|
| 15. |
ZA105146
|
[1] |
ROD
|
IH
- piston Superseded by part number: 700709953
|
| 17. |
ZA207012
|
[1] |
CLEVIS
|
CAS
Superseded by part number: 700709935
|
| 18. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
- hex socket head, 3/8 NC x 1-3/4 inch
|
| . . |
ZA207009
|
[1] |
KIT
|
CAS
- o-ring and seal, Includes: ref. nos. 6, 10, 12, 13, 14 Superseded by part number: 700712175
|
