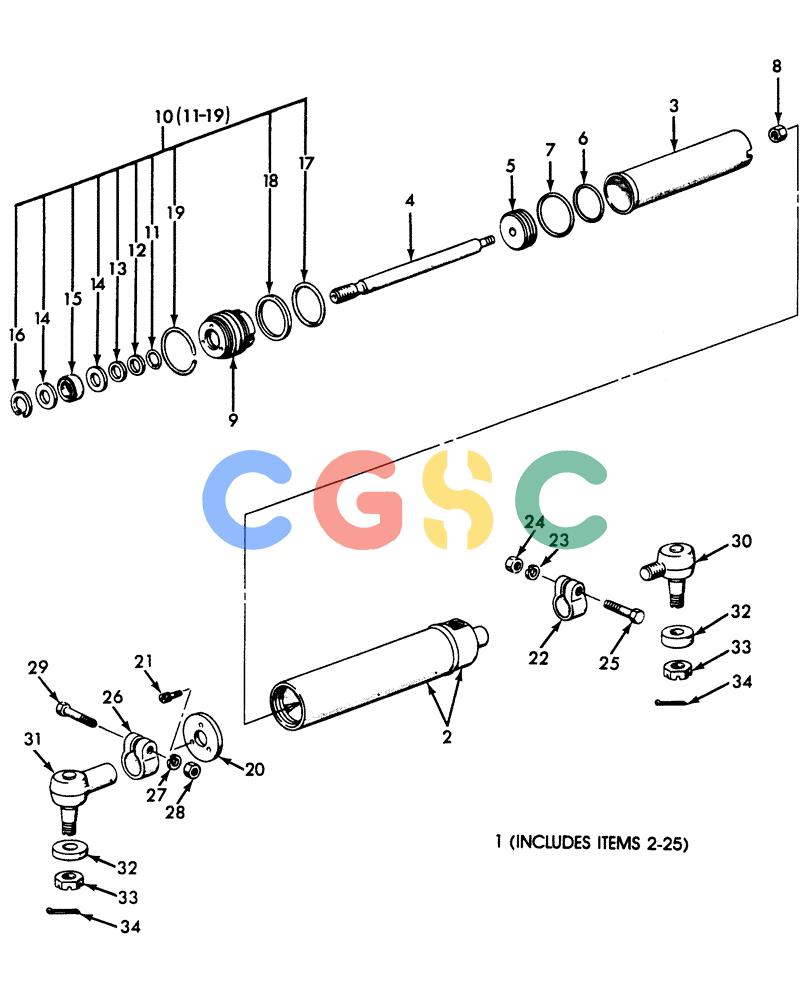

| 1. | 86516202 | [2] | HYDRAULIC CYLINDER | BASCylinder & Clamp Assy. Includes: Ref. 2 thru 25, Start Year: 01-JAN-85 |
| . . | 86516202R | [2] | REMAN-HYD CYLINDER | BASS-755 |
| . . | 86516202C | [1] | CORE-HYD CYLINDER | BASReturn Number |
| 2. | F2NN3N742AA | [2] | HYD. TUBE,14.53" L | FORHead & Tube Assy., Start Year: 01-JAN-85 |
| 3. | C5NN3B536C | [2] | TUBE | FOR, Start Year: 01-JAN-85 |
| 4. | C5NN3B542E | [2] | ROD,17.385mm OD x 341.31mm L | FOR, Start Year: 01-JAN-85 |
| 5. | C5NN3A544C | [2] | PISTON | FOR, Start Year: 01-JAN-85 |
| 6. | C5NN3N712B | [2] | O-RING,1.182" ID | FORInside, Start Year: 01-JAN-85 |
| 7. | C5MM3B541C | [2] | O-Ring, Outside, Start Year: 01-JAN-85 | |
| 8. | 34420S2 | [2] | NUT | FORHex, 3/8"-24 Includes: Ref. 9 & 10, Start Year: 01-JAN-85 Superseded by part number: 34420S7 |
| . . | NSS | [2] | NOT SERVICED SEPARATELY | CONKit, Gland & Seal, Start Year: 01-JAN-85 |
| 9. | C5N98B | [2] | Gland, Start Year: 01-JAN-85 | |
| 10. | C5NN3N713A | [2] | SEAL KIT | FORKit, Seal Includes: Ref. 11 thru 25, Start Year: 01-JAN-85 |
| 20. | C5NN3N702A | [2] | PLATE | FOR, Start Year: 01-JAN-85 |
| 21. | 54438S7 | [2] | SCREW | BAS& Washer Assy., #10-24 x 1/2", Start Year: 01-JAN-85 Superseded by part number: 34803S36, 53860S36 |
| 22. | 513287 | [2] | BAR | GI, Start Year: 01-JAN-85 |
| 23. | 80680 | [2] | LOCK WASHER,3/8 0.381 CST ZND | NHWASHER, LOCK, 3/8", Start Year: 01-JAN-85 |
| 24. | 86509310 | [2] | NUT,3/8" - 24, Gr 5 | ZEDG5, 3/8"-24, Start Year: 01-JAN-85 |
| 25. | 88117 | [2] | BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5 | WINScrew, Cap, HH, G5, 3/8"-24 x 1-3/4", Start Year: 01-JAN-85 |
| 30. | D9NN3A303AA | [2] | PIN | FOREnd Assy., Rear, Male Threads, Start Year: 01-JAN-85 Superseded by part number: D9NN3A303AB |
| 31. | D9NN3A302AA | [2] | END ASSY. | FORFront, Female Threads, Start Year: 01-JAN-85 Superseded by part number: D9NN3A302AB |
| 32. | D3NN3N303A | [4] | COVER | FOR, Start Year: 01-JAN-85 |
| 33. | 359553S36 | [4] | NUT | FORLock, Hex, 5/8"-18, Start Year: 01-JAN-85 |
| 34. | 80708 | [4] | COTTER PIN,1/8" x 1 1/2" | NHPin, Split (Cotter), 1/8" x 1-1/2", Start Year: 01-JAN-85 |
