斗山零件查询PILOT PIPING(1)-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
994 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022149B
|
[-] |

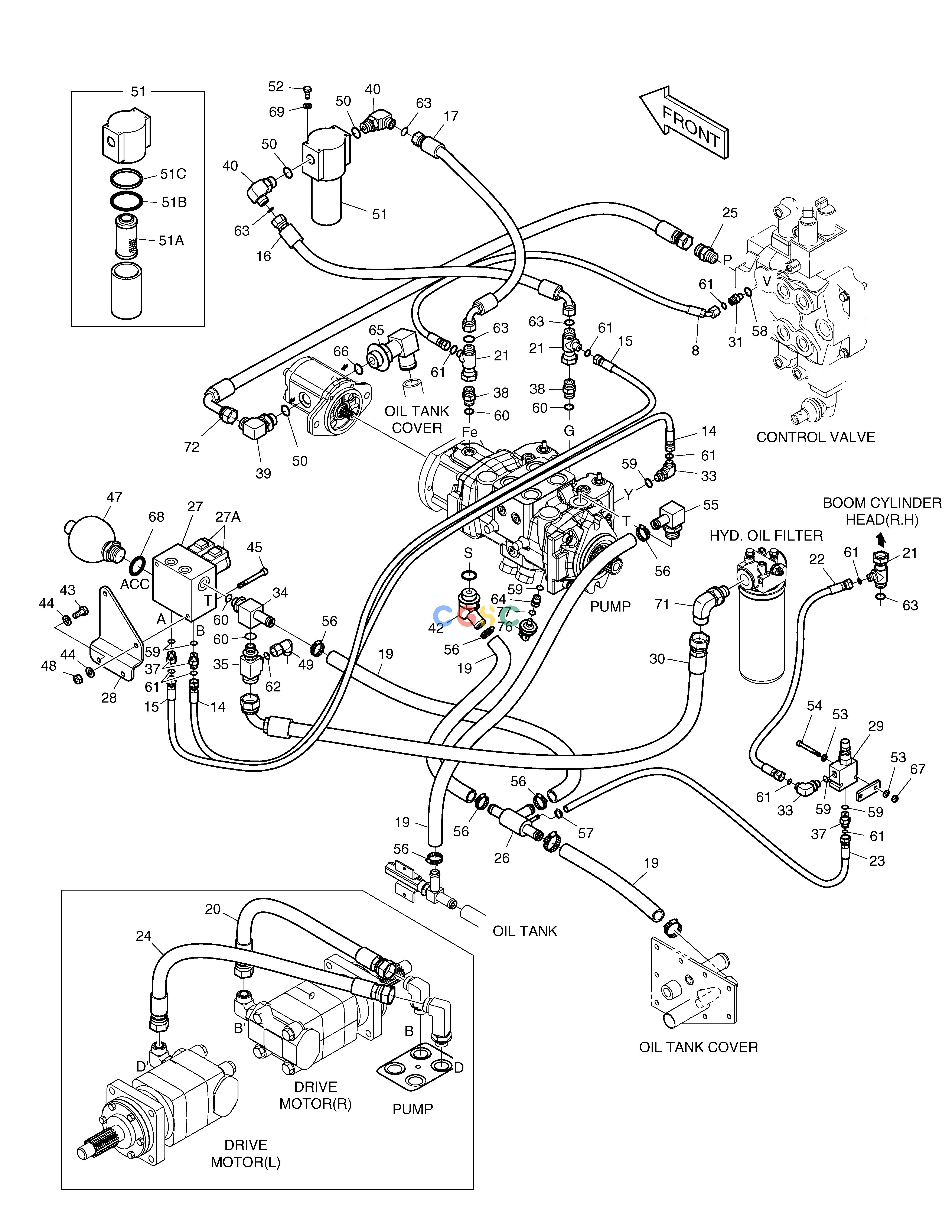

PILOT PIPING-JOYSTICK
|
|
| 14. |
DS2012330
|
[1] |
HOSE
|
|
| 15. |
DS2012331
|
[1] |
HOSE
|
|
| 16. |
DS2013701
|
[1] |
HOSE
|
|
| 17. |
DS2013702
|
[1] |
HOSE
|
|
| 19. |
K1022543
|
[291] |
HOSE;BULK
|
|
| 20. |
DS2029050
|
[1] |
HOSE
|
|
| 21. |
DS2356002
|
[3] |
TEE
|
|
| 22. |
DS2011413
|
[1] |
HOSE
|
|
| 23. |
DS2032009
|
[1] |
HOSE
|
|
| 24. |
DS2029051
|
[1] |
HOSE
|
|
| 25. |
K1023078
|
[1] |
ADAPTER
|
|
| 26. |
DS2448002
|
[1] |
TEE
|
|
| 27. |
K1022649
|
[1] |
VALVE;SOLENOID
|
K1022649A
|
| 27. |
K1022649A
|
[1] |
VALVE;SOLENOID
|
|
| 27A. |
K1022659
|
[2] |
SOLENOID
|
|
| 28. |
K1022068
|
[1] |
BRACKET
|
|
| 29. |
K1022652
|
[1] |
VALVE;SOLENOID
|
|
| 30. |
DS2013418
|
[1] |
HOSE
|
|
| 31. |
K1023082
|
[1] |
ADAPTER
|
|
| 33. |
K1023060
|
[2] |
ELBOW
|
|
| 34. |
K1021997
|
[1] |
TEE
|
|
| 35. |
DS2376023
|
[1] |
TEE
|
|
| 37. |
K1023081
|
[3] |
ADAPTER
|
|
| 38. |
K1023080
|
[2] |
ADAPTER
|
|
| 39. |
K1023065
|
[1] |
ELBOW
|
|
| 40. |
K1023067
|
[2] |
ELBOW
|
|
| 42. |
K1019117
|
[1] |
ELBOW
|
|
| 43. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 44. |
S5010513
|
[4] |
WASHER
|
|
| 45. |
S2210071
|
[2] |
BOLT
|
|
| 47. |
K1022806
|
[1] |
ACCUMULATOR
|
2460-9054
|
| 47. |
2460-9054
|
[1] |
ACCUMULATOR
|
|
| 48. |
S4012533
|
[2] |
NUT
|
|
| 49. |
K1023069
|
[1] |
ELBOW
|
|
| 50. |
S8040101
|
[3] |
O-RING
|
|
| 51. |
K1022651
|
[1] |
FILTER;PILOT
|
|
| 51A. |
K1022654
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 51B. |
K1022655
|
[1] |
O-RING
|
|
| 51C. |
K1022656
|
[1] |
RING;BACK-UP
|
|
| 52. |
S0502963
|
[4] |
BOLT
|
|
| 53. |
S5010313
|
[4] |
WASHER
|
|
| 54. |
S0505563
|
[2] |
BOLT M6X1.0X45L
|
|
| 55. |
K1023061
|
[1] |
ELBOW
|
|
| 56. |
S8450023
|
[6] |
CLAMP
|
|
| 57. |
S8450006
|
[1] |
CLAMP
|
|
| 58. |
S8040041
|
[1] |
O-RING
|
|
| 59. |
S8040061
|
[6] |
O-RING
|
|
| 60. |
S8040081
|
[4] |
O-RING
|
|
| 61. |
S8030041
|
[9] |
O-RING
|
|
| 62. |
S8030061
|
[1] |
O-RING
|
|
| 63. |
S8030081
|
[5] |
O-RING
|
|
| 64. |
DS2245024
|
[1] |
ADAPTER
|
|
| 64. |
2181-2340
|
[1] |
ADAPTER
|
|
| 65. |
K1023071
|
[1] |
ELBOW
|
|
| 66. |
S8040161
|
[1] |
O-RING
|
|
| 67. |
S4012333
|
[2] |
NUT
|
|
| 68. |
S8000141
|
[1] |
O-RING
|
|
| 69. |
S5000213
|
[4] |
. WASHER
|
|
| 71. |
K1023076
|
[1] |
ELBOW
|
|
| 72. |
DS2013826
|
[2] |
HOSE
|
|
| 76. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 76. |
2549-1135D8
|
[1] |
SWITCH;PRESSURE
|
|
| 77. |
S8180211
|
[1] |
SEAL;RING
|
|
| 8. |
DS2012324
|
[1] |
HOSE
|
|
