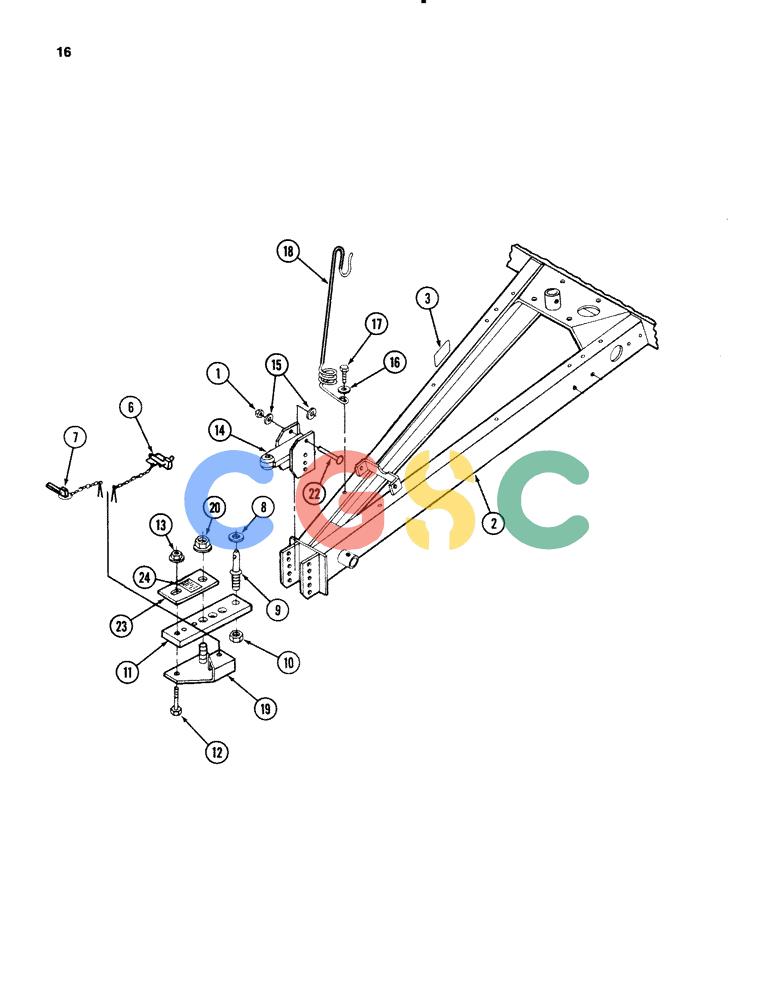

凯斯零件查询(3650) - CASE IH ROUND TIE BALER (1/84-12/88) (16) - HITCH, PRIOR TO P.I.N. 001530 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9413956
|
[6] |
LOCK NUT,1/2"-13, GB
|
IH
NUT - hex, 1/2 inch NC Superseded by part number: 231-4138
|
| 2. |
REF
|
[1] |
INSTRUCTION
|
NH
FRAME - main (See Page 21)
|
| 3. |
96332C1
|
[1] |
PRODUCT GRAPHIC
|
IH
DECAL - warning
|
| 6. |
119522C1
|
[1] |
PIN
|
IH
- klik
|
| 7. |
176868H1
|
[1] |
PIN
|
IH
- klik
|
| 8. |
21214R1
|
[1] |
WASHER
|
IH
- flat, 1-5/32 x 2 x 7/64 inch (29 x 50 x 2 mm) Superseded by part number: 495-81192
|
| 9. |
472790R2
|
[1] |
STUD
|
IH
- lower
|
| 10. |
26076R1
|
[1] |
LOCK NUT,1 1/8"-12, GB
|
IH
NUT - hex, 1-1/8 inch NF Superseded by part number: 231-46118
|
| 11. |
ZA104542
|
[1] |
BAR
|
IH
- hitch extension
|
| 12. |
413-1060
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
|
CAS
- hex, 5/8 NC x 3-3/4 inch Superseded by part number: 16445
|
| 13. |
60863C1
|
[1] |
NUT
|
IH
- hex flange, 5/8 inch NC Superseded by part number: 208778C1
|
| 14. |
ZA104770
|
[1] |
BRACKET
|
IH
- hitch
|
| 15. |
25710R1
|
[1] |
WASHER
|
IH
- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm) Superseded by part number: 86624188
|
| 16. |
460908R1
|
[1] |
WASHER
|
IH
- flat, 17/32 x 1-1/2 x 3/32 inch (13 x 38 x 2 mm) Superseded by part number: 86624147
|
| 17. |
180177
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
- hex, 1/2 NC x 1-1/2 inch Superseded by part number: 113-410
|
| 18. |
ZA103986
|
[1] |
HOLDER
|
IH
- hose
|
| 19. |
145950C1
|
[1] |
SUPPORT
|
IH
|
| 20. |
148032C1
|
[1] |
NUT,Flg, USR, 1"-8
|
IH
- hex flange, 1 inch NC
|
| 22. |
180179
|
[6] |
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
|
IH
- hex, 1/2 NC x 1-3/4 inch Superseded by part number: 113-412
|
| 23. |
222605C92
|
[1] |
BAR
|
IH
ASSEMBLY
|
| 24. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
DECAL - important (Order kit 1265869C93)
|
