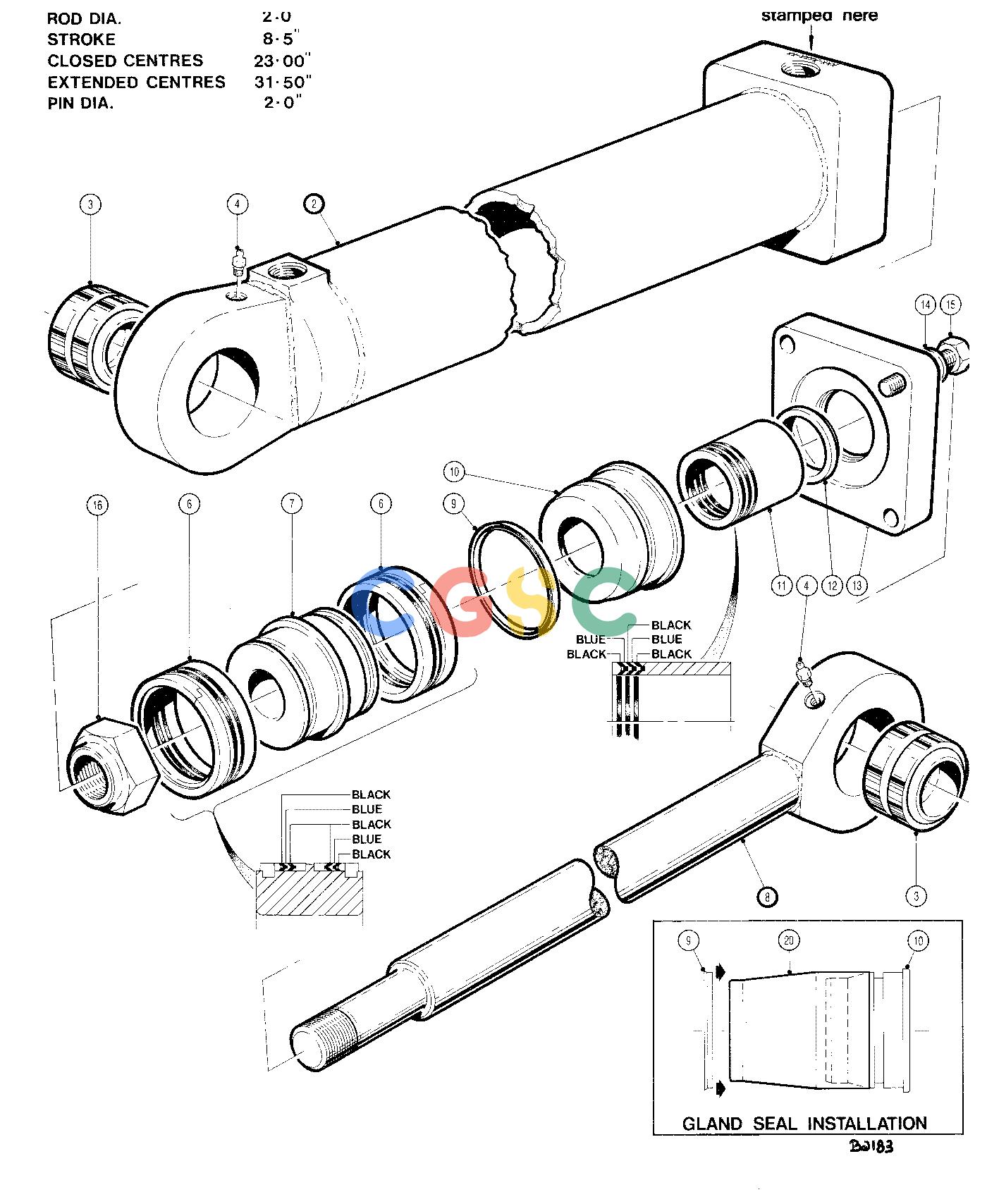

约翰迪尔零件查询20``STD - ATTACHMENTS CYLINDER CLAMP 20`` HEAD ( 62001 - 62407) 2876-011/10 [2876-011/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700396200
|
[1] |
Cylinder
|
|
| 2. |
700432500
|
[1] |
Housing
|
|
| 3. |
810106700
|
[2] |
Bushing
|
|
| 4. |
810000100
|
[2] |
GREASE FITTING.N610
|
|
| 6. |
811445500
|
[2] |
SEAL PACKAGE
|
|
| 7. |
700424800
|
[1] |
Piston
|
|
| 8. |
700424100
|
[1] |
ROD - INCL. ITEMS 3,4
|
|
| 9. |
700620600
|
[1] |
Seal
|
|
| 10. |
700427600
|
[1] |
GLAND
|
|
| 11. |
700767800
|
[1] |
SEAL PACKAGE
|
|
| 12. |
811514800
|
[1] |
WIPER-ROD
|
|
| 13. |
700423900
|
[1] |
Plate
|
|
| 14. |
810002100
|
[4] |
WASHER 3/4
|
|
| 15. |
810084500
|
[4] |
BOLT 3/4-10UNCX2-1/4
|
|
| 16. |
811216700
|
[1] |
NUT 1-3/8-12UNC
|
|
| 20. |
700564800
|
[1] |
Tool
|
|
| |
700564300
|
[1] |
KIT SEAL - K1
|
|
| |
|
|
NOTE 1: CYL. ASSY. REPLACED BY 7007980
|
|
