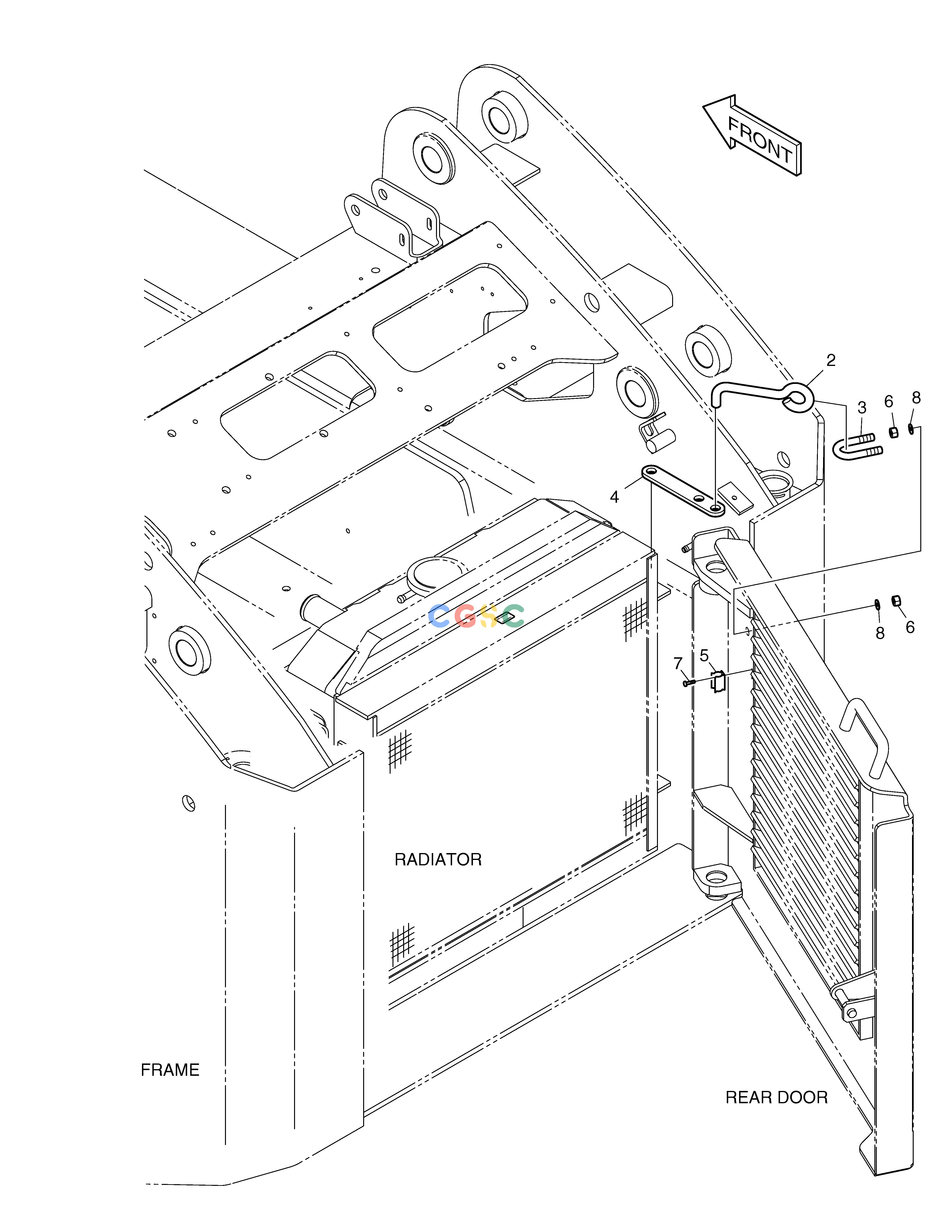

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020794 | [-] | REAR DOOR LOCK | |
| 2. | K1020989 | [1] | ROD;LOCK | |
| 3. | K1020153 | [1] | BOLT;U | |
| 4. | K1021206 | [1] | PLATE | |
| 5. | K1020104 | [1] | CLIP | |
| 6. | S4016643 | [2] | NUT | |
| 7. | S3458321 | [2] | SCREW | |
| 8. | K1023150 | [4] | WASHER;HARDENED |
广数供应链运营团队, 14 02月, 2025，浏览： 668 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020794 | [-] | REAR DOOR LOCK | |
| 2. | K1020989 | [1] | ROD;LOCK | |
| 3. | K1020153 | [1] | BOLT;U | |
| 4. | K1021206 | [1] | PLATE | |
| 5. | K1020104 | [1] | CLIP | |
| 6. | S4016643 | [2] | NUT | |
| 7. | S3458321 | [2] | SCREW | |
| 8. | K1023150 | [4] | WASHER;HARDENED |
