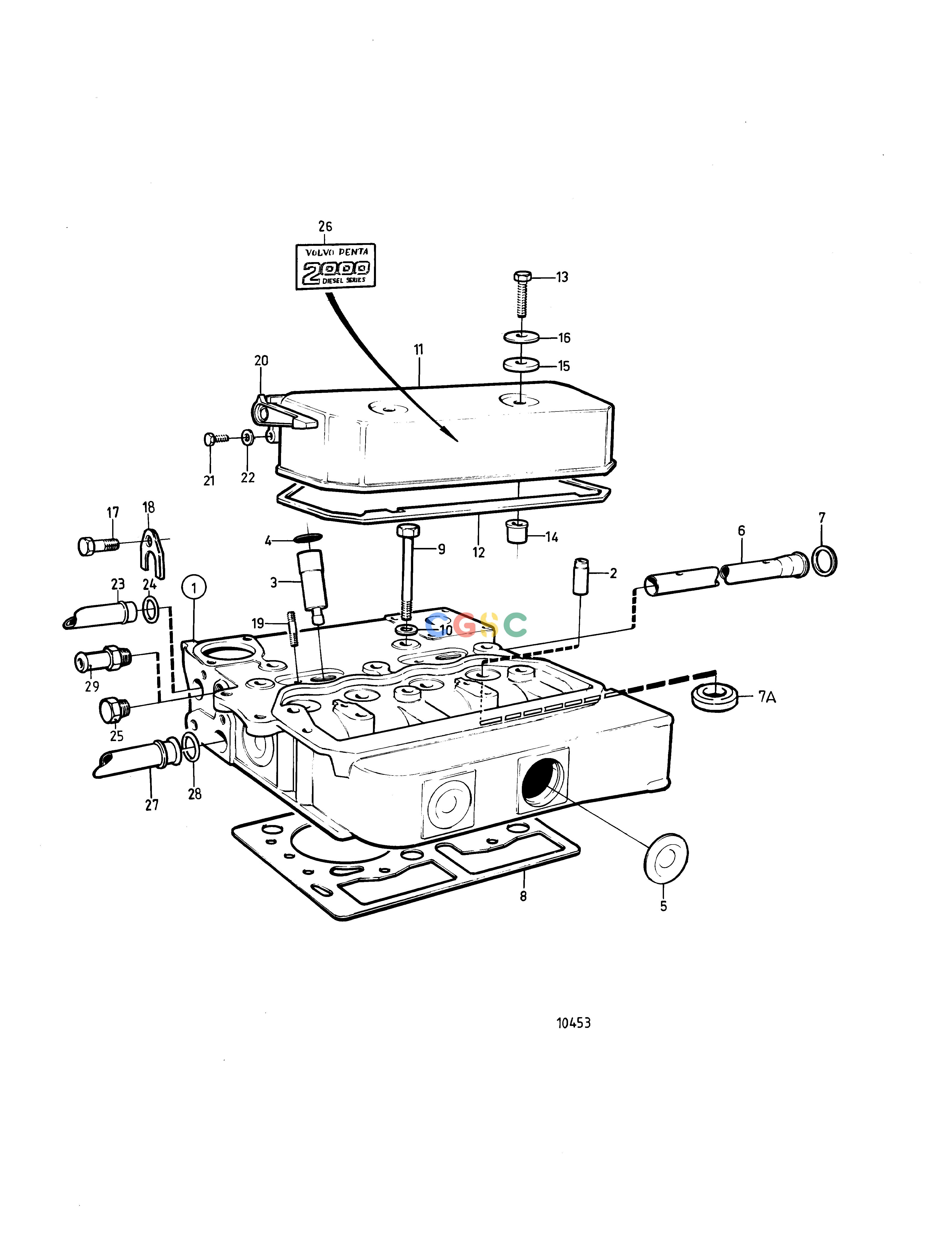

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineCyl. Head, Repl. Exhaust Valve Seats Freshwater-cooled EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803161
|
[1] |
Cylinder head
|
(860079)
|
| 2. |
840281
|
[4] |
Valve guide
|
|
| 3. |
860267
|
[2] |
Nozzle sleeve
|
|
| 4. |
945221
|
[2] |
O-ring
|
|
| 5. |
477024
|
[6] |
Expansion plug
|
(192211)
|
| 6. |
840420
|
[1] |
Distribution pipe
|
|
| 7. |
418445
|
[1] |
Sealing ring
|
|
| 7A. |
858461
|
[2] |
Valve seat
|
|
| 8. |
859094
|
[1] |
Cylinder head gasket
|
|
| 9. |
970888
|
[10] |
Hexagon screw
|
|
| 10. |
840210
|
[10] |
Washer
|
|
| 11. |
861062
|
[1] |
Valve cover
|
Valve cover kit 861062 consists of 1 PC valve cover 840329,1 PC lever 840590,1 PC screw 940102,1 PC
|
| 11. |
840329
|
[1] |
Valve cover
|
|
| 12. |
859043
|
[1] |
Gasket
|
|
| 13. |
940142
|
[2] |
Hexagon screw
|
|
| 14. |
840441
|
[2] |
Spacer sleeve
|
|
| 15. |
840442
|
[2] |
Rubber bushing
|
|
| 16. |
840900
|
[2] |
Washer
|
|
| 17. |
955269
|
[2] |
Hexagon screw
|
|
| 18. |
840740
|
[2] |
Clamp
|
|
| 19. |
980336
|
[2] |
Stud
|
|
| 20. |
840590
|
[1] |
Intermediate lever
|
Included in valve cover kit 861062 but has been excluded as standard from SN2300059085-
|
| 21. |
940102
|
[1] |
Hexagon screw
|
Included in valve cover kit 861062 but has been excluded as standard from SN2300059085-
|
| 22. |
960138
|
[1] |
Washer
|
Included in valve cover kit 861062 but has been excluded as standard from SN2300059085-
|
| 23. |
840739
|
[1] |
Tube
|
Cylinder head-circulation pump.By pass.
|
| 24. |
418411
|
[1] |
Sealing ring
|
|
| 25. |
479956
|
[1] |
Plug
|
|
| 26. |
840831
|
[1] |
Decal
|
|
| 27. |
840737
|
[1] |
Coolant pipe
|
Circulation pump-cylinder head
|
| 28. |
418445
|
[1] |
Sealing ring
|
|
| 29. |
479978
|
[1] |
Nipple, heather outlet
|
|
