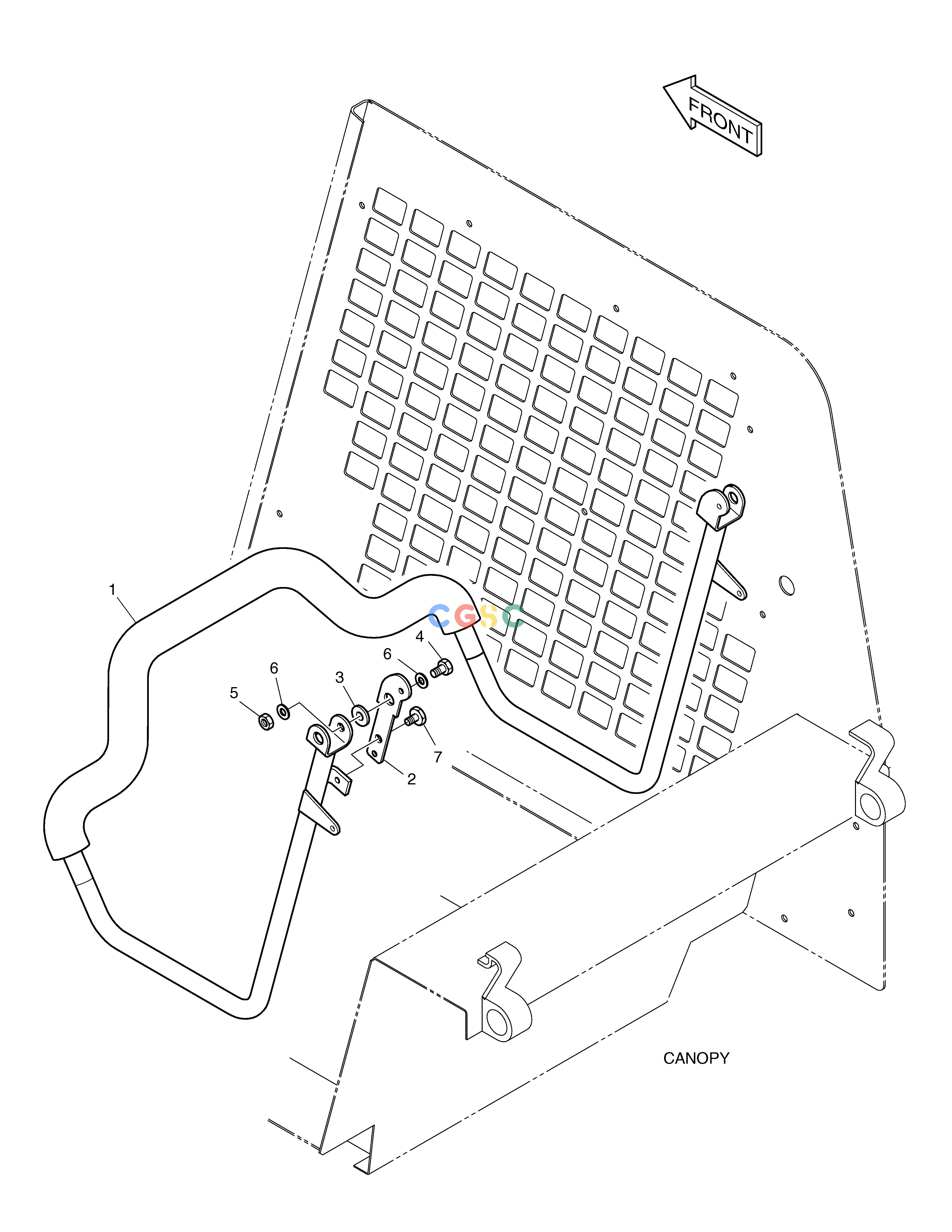

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020769 | [-] | SEAT BAR ASS'Y | |
| 1. | K1020770 | [1] | BAR;SEAT | |
| 2. | K1020771 | [1] | LEVER | |
| 3. | K1020774 | [1] | SPACER | |
| 4. | S0515263 | [1] | BOLT;HEX | |
| 5. | S4016743 | [2] | NUT | |
| 6. | K1023146 | [2] | WASHER;HARDENED | |
| 7. | K1023110 | [1] | BOLT;KNOB |
