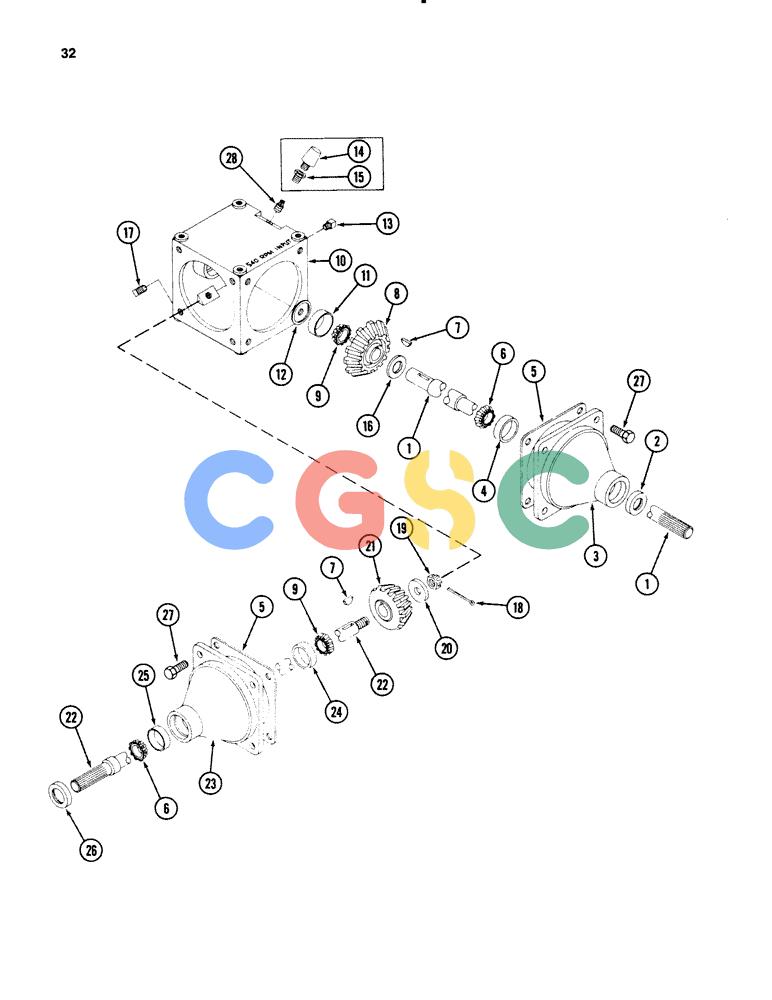

| 1. |
ZA103637
|
[1] |
SHAFT
|
IH
(Prior to P.I.N. 001530)
|
| 1. |
ZA105687
|
[1] |
SHAFT
|
CAS
(With lock groove for constant velocity PTO shaft) (P.I.N. 001531 and after)
|
| 2. |
96325C1
|
[1] |
OIL SEAL
|
IH
SEAL oil, 2-1/2 OD (63.5 mm) Superseded by part number: D53666
|
| 3. |
ZA103721
|
[1] |
TUBE
|
IH
- bearing
|
| 4. |
536054R1
|
[1] |
BEARING CUP,60mm OD x 11.94mm W
|
IH
CUP - bearing, 2.362 OD (60 mm)
|
| 5. |
96342C1
|
[4] |
SHIM
|
IH
- 0.0005 inch (0.127 mm)
|
| 5. |
96343C1
|
[4] |
SHIM
|
IH
- 0.020 inch (0.050 mm)
|
| 6. |
536053R1
|
[2] |
ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"
|
IH
CONE - bearing, 1.378 ID (35 mm) Superseded by part number: 175507
|
| 7. |
88907
|
[2] |
WOODRUFF KEY,#B, 5/16" x 1", HT
|
GI
KEY - woodruff, 5/16 x 1 inch (7 x 25 mm)
|
| 8. |
ZA103627
|
[1] |
GEAR
|
IH
- 26 tooth (Cut tooth) (Used only with gear ZA103626) (Prior to P.I.N. 001530) (See Note)
|
| 8. |
ZA105434
|
[1] |
GEAR
|
CAS
- 26 tooth (Forged) (Used only with gear ZA105433) (P.I.N. 001531 and after) (See Note)
|
| 9. |
618023R91
|
[2] |
BEARING ASSY,34.93mm ID x 18.2mm W
|
IH
CONE - bearing, 1-3/8 ID (34 mm)
|
| 10. |
ZA103720
|
[1] |
BOX
|
IH
GEAR BOX
|
| 11. |
618024R1
|
[1] |
BEARING CUP,65.113mm OD x 13.97mm W
|
IH
2-9/16 OD (65 mm) Superseded by part number: 86516467
|
| 12. |
96344C1
|
[2] |
SHIM
|
IH
- 0.0005 inch (0.127 mm)
|
| 12. |
96345C1
|
[1] |
SHIM
|
IH
- 0.020 inch (0.050 mm)
|
| 13. |
9617020
|
[1] |
PLUG,1/4" - 18 x 0.48"
|
NH
- Hex Socket automotive pipe, 1/4 - 18 NPT
|
| 14. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
BREATHER - (Order breather ZA103653)
|
| 15. |
27327R1
|
[1] |
BUSHING - pipe, 1/2 NPT x 3/4 NPT
|
|
| 16. |
ZA104574
|
[1] |
WASHER
|
IH
- champfered
|
| 17. |
20969R1
|
[1] |
PLUG
|
IH
- square head pipe, 3/4 NPT Superseded by part number: 221-48
|
| 18. |
103409
|
[1] |
PIN, SPLIT (COTTER),3/16" x 1 1/2"
|
IH
Superseded by part number: 20328R1
|
| 19. |
427640
|
[1] |
SLOTTED NUT,3/4"-16, G5
|
IH
NUT - hex slotted, 3/4 inch NF Superseded by part number: 129-290
|
| 20. |
26512R1
|
[1] |
WASHER
|
IH
- flat, 25/32 x 2 x 11/64 inch (19 x 50 x 4 mm) Superseded by part number: 86624159
|
| 21. |
ZA103626
|
[1] |
GEAR
|
IH
- 19 tooth (Cut tooth) (Use only with gear ZA103627) Prior to P.I.N. 001530) (See Note)
|
| 21. |
ZA105433
|
[1] |
GEAR
|
CAS
- 19 tooth (Forged) (Used only with gear ZA105434) (P.I.N. 001531 and after) (See Note)
|
| 22. |
ZA103638
|
[1] |
SHAFT
|
IH
- pinion (Prior to P.I.N. 001530)
|
| 22. |
ZA105688
|
[1] |
SHAFT
|
CAS
- pinion (With lock groove for constant velocity PTO shaft) (P.I.N. 001531 and after)
|
| 23. |
ZA103722
|
[1] |
HOUSING
|
IH
TUBE - bearing
|
| 26. |
96324C1
|
[1] |
OIL SEAL
|
IH
SESAL - oil, 1-5/8 ID (41 mm)
|
| 27. |
180177
|
[8] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
- hex, 1/2 inch x 1-1/2 inch Superseded by part number: 113-410
|
| 28. |
ZA103653
|
[1] |
PLUG
|
IH
- breather - (Replaces 651616R1)
|
