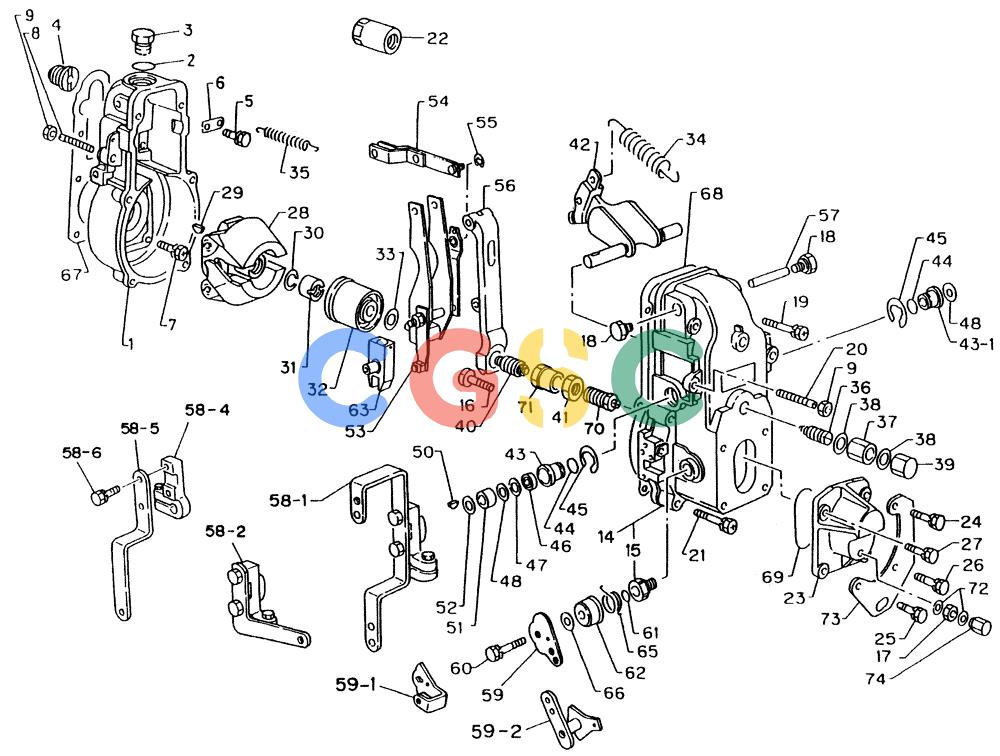

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE (1/06-12/07) (01-047) - GOVERNOR; INJ. PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
255 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8943811491 | [1] | GOVERNOR ASM,MECHANICAL | |
| . . | VI8970493270 | [1] | GOVERNOR ASH,MECHANICAL | |
| . . | VI8970862771 | [1] | GOVERNOR ASM,MECHANICAL | |
| . . | VI8970886010 | [1] | GOVERNOR ASM,MECHANICAL | |
| . . | VI8971045102 | [1] | GOVERNOR ASM,MECHANICAL | |
| . . | VI8971089240 | [1] | GOVERNOR ASM,MECHANICAL | |
| 1. | VI1157211040 | [1] | HOUSING | KOBHOUSING,GOV |
| 2. | VI1157290150 | [1] | O-RING | KOBO-RING |
| 3. | VI1157290380 | [1] | PLUG | KOBPLUG |
| 4. | VI9813150650 | [1] | ADAPTER | KOBADAPTER |
| 5. | VI9019008180 | [1] | BOLT | KOBBOLT |
| 6. | VI8913253970 | [1] | PLATE | |
| 7. | VI5157290270 | [6] | BOLT | KOBBOLT Superseded by part number: VIG0290106810 |
| 8. | VI5157291220 | [1] | SCREW | |
| 8. | VI5157291230 | [1] | SCREW | KOBSCREW |
| 9. | VI8944100270 | [2] | NUT,LOCK | |
| 14. | VI1157210140 | [1] | COVER,GOV. | |
| 15. | VI9813254290 | [1] | BUSHING | KOBBUSH |
| 16. | VI1157291010 | [1] | SCREW | |
| 16. | VI1157291720 | [1] | SCREW | |
| 17. | VI1157790400 | [1] | NUT | |
| 18. | VI5157290530 | [2] | PLUG | KOBPLUG |
| 19. | VI5157290540 | [2] | BOLT | KOBBOLT |
| 20. | VI9813251770 | [1] | SCREW | |
| 20. | VI5157291230 | [1] | SCREW | KOBSCREW |
| 21. | VI5157290330 | [4] | BOLT | KOBBOLT |
| 22. | VI8941677920 | [1] | GOVERNOR | KOBCAP |
| 23. | VI1157210230 | [1] | COVER | |
| 23. | VI8941677930 | [1] | COVER | |
| 24. | VI1156192820 | [1] | BOLT | KOBBOLT |
| 25. | VI5157291670 | [1] | BOLT | |
| 26. | VI5157291670 | [1] | BOLT | |
| 27. | VI9019006160 | [1] | CAPSCREW | KOBSCREW BOLT Superseded by part number: VI0505406160 |
| 28. | VI1157220170 | [1] | WEIGHT | KOBFLYWEIGHT ASM. |
| 28. | VI8944278470 | [1] | FLYWEIGHT ASM. | |
| 28. | VI1157220210 | [1] | FLYWEIGHT ASM. | |
| 29. | VI5196190490 | [1] | KEY | KOBKEY,WOODRUFF |
| 30. | VI5157290340 | [1] | WASHER | KOBWASHER,SPRING |
| 31. | VI9813250860 | [1] | NUT | KOBNUT |
| 32. | VI5157293720 | [1] | SLEEVE | KOBSLEEVE |
| 33. | VI9813250880 | [1] | SHIM | KOBSHIM T=0.2 |
| 33. | VI9813255510 | [1] | SHIM | KOBSHIM T=0.3 (OR) |
| 33. | VI9813255520 | [1] | SHIM | KOBSHIM T=0.4 (OR) |
| 33. | VI9813255530 | [1] | SHIM | KOBSHIM T=1.0 (OR) |
| 33. | VI5157292860 | [1] | SHIM | KOBSHIM T=0.5 (OR) |
| 33. | VI5157292870 | [1] | SHIM | KOBSHIM T=1.5 (OR) |
| 33. | VI1157298910 | [1] | SHIM | KOBSHIM T=2.0 (OR) |
| 33. | VI1157298920 | [1] | SHIM | KOBSHIM T=3.0 (OR) |
| 33. | VI1157298930 | [1] | SHIM | KOBSHIM T=4.0 (OR) |
| 34. | VI5157230120 | [1] | SPRING,GOV. | |
| 34. | VI9008121300 | [1] | SPRING,GOV. | |
| 35. | VI9813222350 | [1] | SPRING | KOBSPRING |
| 36. | VI1157230730 | [1] | CAPSULE,SPRING | |
| 36. | VI8941677940 | [1] | SPRING | KOBCAPSULE,SPRING |
| 36. | VI8944278480 | [1] | CAPSULE,SPRING | |
| 37. | VI5157292090 | [1] | NUT | |
| 38. | VI8941445880 | [2] | GASKET | KOBGASKET Superseded by part number: VIG0265121540 |
| 39. | VI1157290920 | [1] | NUT | KOBNUT,CAP |
| 40. | VI1157292790 | [1] | CAPSULE,SPRING | |
| 40. | VI8944707560 | [1] | CAPSULE,SPRING | |
| 41. | VI9008130230 | [1] | NUT | KOBNUT |
| 41. | VI9884100370 | [1] | NUT | |
| 42. | VI8970416600 | [1] | LEVER.SWIVEL | |
| 42. | VI8970464250 | [1] | LEVER ASSY. | KOBLEVER,SWIVEL |
| 43. | VI8970242390 | [1] | BUSH | |
| 43-1. | VI8970242400 | [1] | BUSH | |
| 44. | VI9813212050 | [2] | O-RING | KOBO-RING Superseded by part number: VIG0296318020 |
| 45. | VI9091854150 | [2] | RING | KOBRING,SNAP |
| 46. | VI1157290980 | [1] | OIL SEAL | KOBSEAL,OIL Superseded by part number: VIG1396110000 |
| 47. | VI1157290990 | [1] | SHIM | KOBSHIM Superseded by part number: VIG1394110000 |
| 48. | VI9813250970 | [1] | SHIM T=0.3 | |
| 50. | VI9813250300 | [1] | KEY | KOBKEY,WOODRUFF |
| 51. | VI1157293010 | [1] | COLLAR | |
| 52. | VI9813254880 | [1] | WASHER | KOBWASHER |
| 53. | VI1157250150 | [1] | LEVER ASM,GUIDE | |
| 53. | VI5157250470 | [1] | LEVER ASM,GUIDE | |
| 54. | VI1157250110 | [1] | LINK | |
| 55. | VI9091854040 | [1] | RING | KOBRING,SNAP |
| 56. | VI5157250170 | [1] | LEVER,TENSION | |
| 56. | VI5157250500 | [1] | LEVER,TENSION | |
| 57. | VI9813250620 | [1] | PIN | |
| 58-1. | VI8944418410 | [1] | LEVER | KOBLEVER |
| 58-2. | VI8941677960 | [1] | LEVER | |
| 58-4. | VI8970321630 | [1] | LEVER | |
| 58-5. | VI1157251700 | [1] | LEVER | |
| 58-6. | VI5157290580 | [1] | LEVER | |
| 59. | VI8970160050 | [1] | LEVER | |
| 59-1. | VI8943315340 | [1] | LEVER | |
| 59-1. | VI8971131100 | [1] | LEVER | |
| 59-2. | VI8970321640 | [1] | LEVER | |
| 60. | VI9019006160 | [1] | CAPSCREW | KOBSCREW BOLT Superseded by part number: VI0505406160 |
| 60. | VI1157293960 | [1] | BOLT | |
| 61. | VI9813919060 | [1] | O-RING | KOB |
| 62. | VI9813252100 | [1] | CAP | KOBCAP Superseded by part number: VIG1543220100 |
| 63. | VI1157250170 | [1] | LEVER ASSY. | KOBLEVER ASM. |
| 65. | VI1157232190 | [1] | SPRING | KOBSPRING |
| 66. | VI1157292940 | [1] | SHIM T=0.20 | |
| 66. | VI1157292950 | [1] | SHIM | KOBSHIM T=0.25 (OR) |
| 66. | VI1157292960 | [1] | SHIM T=0.30 (OR) | |
| 66. | VI1157292970 | [1] | SHIM | KOBSHIM T=0.35 (OR) |
| 66. | VI1157292980 | [1] | SHIM T=0.40 (OR) | |
| 66. | VI1157292990 | [1] | SHIM | KOBSHIM T=0.50 (OR) |
| 67. | VI5157290010 | [1] | GASKET | |
| 67. | VI1157790930 | [1] | GASKET | KOBGASKET |
| 68. | VI1157290020 | [1] | GASKET | KOB Superseded by part number: VIG1543900300 |
| 68. | VI1157790940 | [1] | GASKET | KOBGASKET Superseded by part number: VIG1543900300 |
| 69. | VI9813919070 | [1] | O-RING | KOB |
| 70. | VI1157232200 | [1] | CAPSULE,SPRING | |
| 71. | VI9008130230 | [1] | NUT | KOBNUT |
| 72. | VI5157290990 | [2] | OIL PAN GASKET SET | KOBGASKET |
| 73. | VI8941677980 | [1] | BRACKET | |
| 74. | VI1157290930 | [1] | NUT,CAP | |
